TREF2 125A 2 Poles, Moulded Case Circuit Breaker Type ELCB
Inquire Now
TRE series circuit breaker and auxiliaries comply with the following international standard:
1.IEC/EN 60947-1
Low-voltage switchgear and controlgear-part 1: General rules;
2.IEC/EN 60947-2
Low-voltage switchgear and controlgear-part 2: Circuit breakers;
TRE series ELCB(Standard use environment for TRE series ELCB)
1. Ambient temperature: Within the range of -5oC–+40oC(However, the average for the duration of 24 hours must not exceed 35oC);
2. Altitude: 2000m or less
3. Installation class: III
4. The magnetic field near the instalation site should not be more than five times the earth magnetic field in any direction.
5. Pollution: II
Classification:
According to the poles: 2-poles, 3-poles, 4-poles
According to the breaking capacity: S-type, H-type
According to the rated current: Fix type, Adjustable type(08In-1.0In)
According to the trip action time: Fix type, Adjustable type(0.1s/0.3s/0.5s)
According to the rated residual current: Fix type, Adjustable(30mA/100mA/300mA/500mA)
TRE series ELCB
Standard:
TRE series circuit breaker and auxiliaries comply with the following international standard:
1.IEC/EN 60947-1
Low-voltage switchgear and controlgear-part 1: General rules;
2.IEC/EN 60947-2
Low-voltage switchgear and controlgear-part 2: Circuit breakers;
TRE series ELCB(Standard use environment for TRE series ELCB)
1. Ambient temperature: Within the range of -5oC–+40oC(However, the average for the duration of 24 hours must not exceed 35oC);
2. Altitude: 2000m or less
3. Installation class: III
4. The magnetic field near the instalation site should not be more than five times the earth magnetic field in any direction.
5. Pollution: II
Classification:
According to the poles: 2-poles, 3-poles, 4-poles
According to the breaking capacity: S-type, H-type
According to the rated current: Fix type, Adjustable type(08In-1.0In)
According to the trip action time: Fix type, Adjustable type(0.1s/0.3s/0.5s)
According to the rated residual current: Fix type, Adjustable(30mA/100mA/300mA/500mA)Technical data table:
| Ampere frame size | TREF2(125A) | ||||||
| Breaking capacity code | S | H | |||||
| Product code and poles | 2P | 3P | 4P | 2P | 3P | 4P | |
| TREF2-S2 | TREF2-S2 | TREF2-S2 | TREF2-H2 | TRMF2-H3 | TRMF2-H4 | ||
| Protective function | Over load & Short circuit & Ground fault | ||||||
| Rated current, In(A) | 15, 20, 30, 40, 50, 60, 75, 80, 100, 125 | ||||||
| Rated residual current | Operating, IΔn(mA) | 30, 50, 100, 200, 300, 500 | |||||
| Non-operating, IΔno(mA) | 15, 25, 50, 100, 150, 250 | ||||||
| Adjustable part | Rated current setting(0.8In-1.0In) | √ | √ | ||||
| Lockup device for operating handle | – | √ | √ | – | √ | √ | |
| Residual current, IΔn | 30mA/100mA/300mA/500mA | ||||||
| Trip action time | 0.1s/0.3s/0.5s | ||||||
| Rated operational voltage, Ue(V), AC 50/60 Hz | 240/415 | ||||||
| Rated insulation voltage, Ui(V) | 1000 | ||||||
| Rated impulse withstand voltage, Uimp(kV) | 8 | ||||||
| Residual current off-time at IΔn ,Sec (s) | 0.1 | ||||||
| Standard | Conformity with IEC/EN 60947-2 | ||||||
| Rated frequency(Hz) | 50/60 | ||||||
| Rated short-circuit breaking capacity, Icu(kA) | |||||||
| AC | 240V | 35 | 50 | ||||
| 415V | 18 | 35 | |||||
| Ics=% * Icu | 100% | ||||||
| Mechanical life(circle) | 8500 | ||||||
| Electrical life(circle) | 1500 | ||||||
| Dimension: Length*Width*Height |
2-poles | 130*50*60 | |||||
| 3-poles | 130*75*60 | ||||||
| 4-poles | 130*100*60 | ||||||

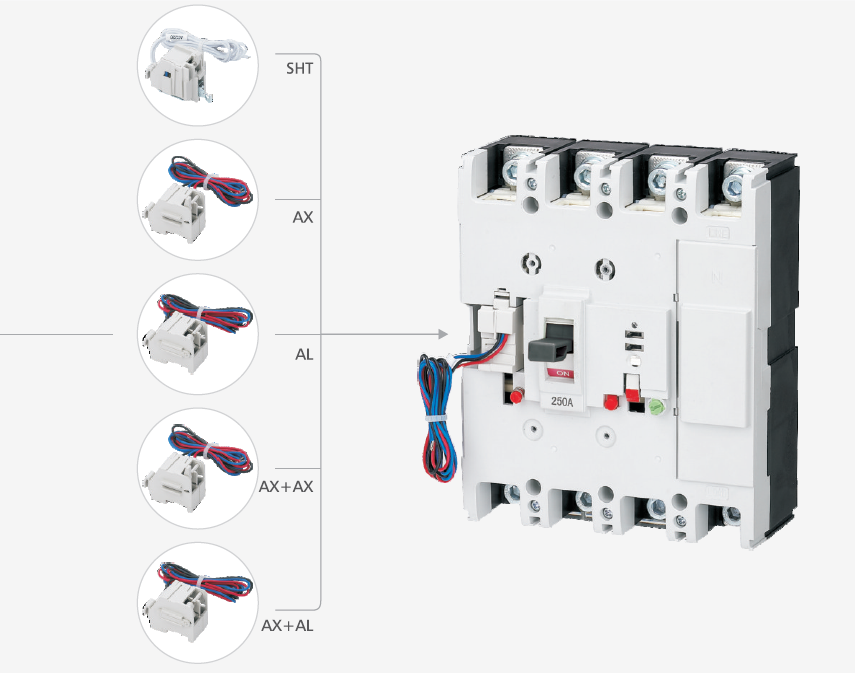

Built-in accessory:
Built-out accessory:

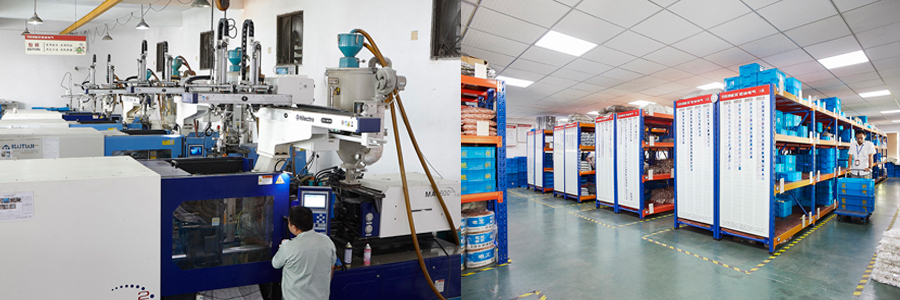

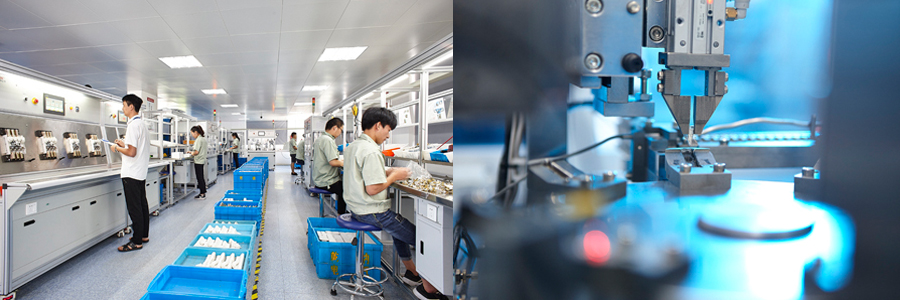

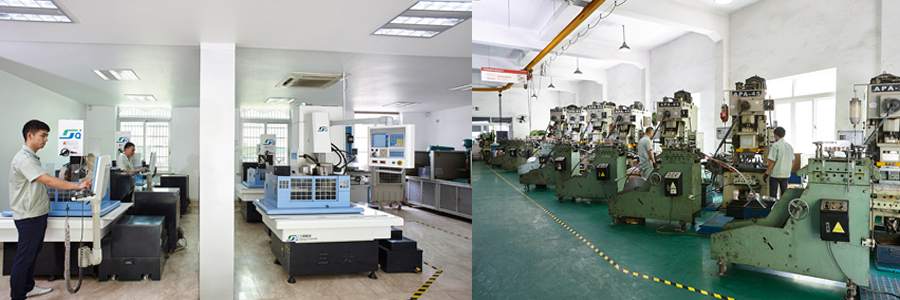

Company show:
