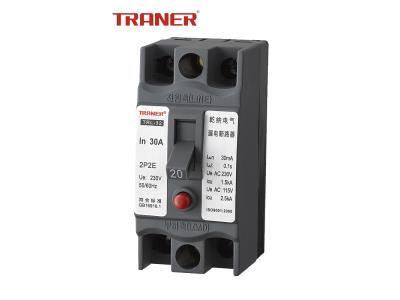

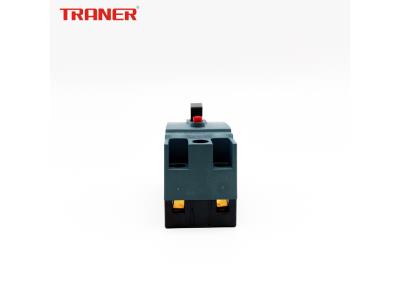

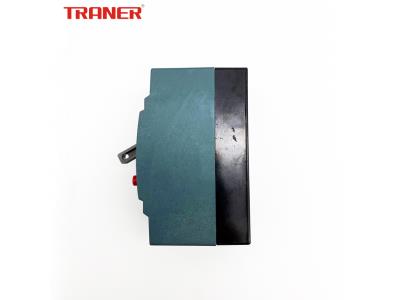

TRL-40(a) 16A 20A 25A 32A 40A, Earth Leakage Circuit Breaker RCCB
Inquire NowDescription
The TRL-40(a) Earth Leakage Circuit Breaker (RCCB) is a mini safety device designed to offer reliable earth leakage protection, ensuring safety from ground faults. This compact breaker adheres to the standards set by IEC/EN 61008-1 and GB 16916.1. With its innovative patent design, the TRL-40(a) is not only easy to assemble but also engineered for optimal performance in various electrical environments. Available in rated currents of 16A, 20A, 25A, 32A, and 40A, this breaker is an essential component for safeguarding electrical installations.
Specifications
| Feature | Details |
|---|---|
| Product Code | TRL-40(a) |
| Protection | Earth leakage protection (Ground fault protection) |
| Rated Current | 16A, 20A, 25A, 32A, 40A |
| Rated Residual Current |
Operating, IΔn: 15mA, 30mA Non-operating, IΔno: 7.5mA, 15mA |
| Poles | 2 poles |
| Rated Voltage | 110V AC, 220V AC |
| Residual Current Off-Time | 0.1s |
| Standard | IEC/EN 61008-1, GB16916.1 |
| Approval | CE, CCC |
| Type of Trip | Ground fault (Electronic) |
| Rated Switch-On Breaking Capacity, Im | 500A |
| Rated Limited Short Circuit Current, Inc | 2.5 KA |
| Endurance |
Electrical: 1000 operations Mechanical: 2000 operations |
| Material of Body |
Base: Plastic Cover (Grey): Plastic Cover (Black): Bakelite |
| Type of Operation | AC |
| Dimensions (L*W*H) | 70mm * 32mm * 51mm |
Additional Information
For optimal performance, ensure proper installation and regular testing of the TRL-40(a) breaker in accordance with electrical safety standards. This device is suitable for various residential and commercial applications, providing peace of mind with its reliable earth leakage protection.
