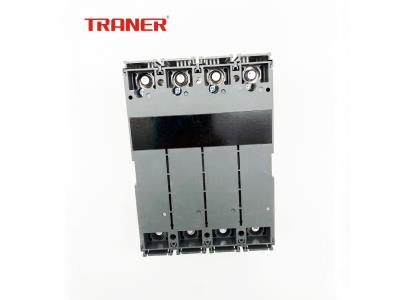

TRMF2 125A 4 Poles, Thermal Adjustable Comply IEC60947-2, Moulded Case Circuit Breaker
Inquire NowDescription
The TRMF2 125A 4 Poles Thermal Adjustable Moulded Case Circuit Breaker (MCCB) is designed for robust protection in low-voltage switchgear and control applications. Complying with international standards IEC/EN 60947-1 and IEC/EN 60947-2, this circuit breaker ensures reliability and efficiency in electrical systems. With adjustable thermal settings and a breaking capacity classification, the TRMF2 series is suitable for various operational environments.
This MCCB operates effectively within an ambient temperature range of -5°C to +55°C and is equipped to handle relative humidity levels from 45% to 85%. Its design considers altitudes of up to 2000m, with necessary adjustments for higher altitudes. It is engineered to function optimally in clean environments, free from excessive steam, smoke, or corrosive materials.
The TRMF2 circuit breaker offers various configurations, classified by the number of poles (1-pole, 2-poles, 3-poles, 4-poles) and breaking capacity types (S-type, H-type), along with fixed and adjustable current rated options.
Specifications
| Attribute | Details |
|---|---|
| Ampere Frame Size | TRMF2(125A) |
| Breaking Capacity Code | S, H |
| Product Code and Poles |
|
| Rated Current, In(A) | 15, 20, 30, 40, 50, 60, 75, 80, 100, 125 |
| Rated Operational Voltage, Ue(V), AC 50/60 Hz | 240/415 |
| Rated Insulation Voltage, Ui(V) | 1000 |
| Rated Impulse Withstand Voltage, Uimp(kV) | 8 |
| Rated Frequency(Hz) | 50/60 |
| Mechanical Life (circles) | 8500 |
| Electrical Life (circles) | 1500 |
| Dimensions (L*W*H) |
|
Additional Information
Built-in Accessories:

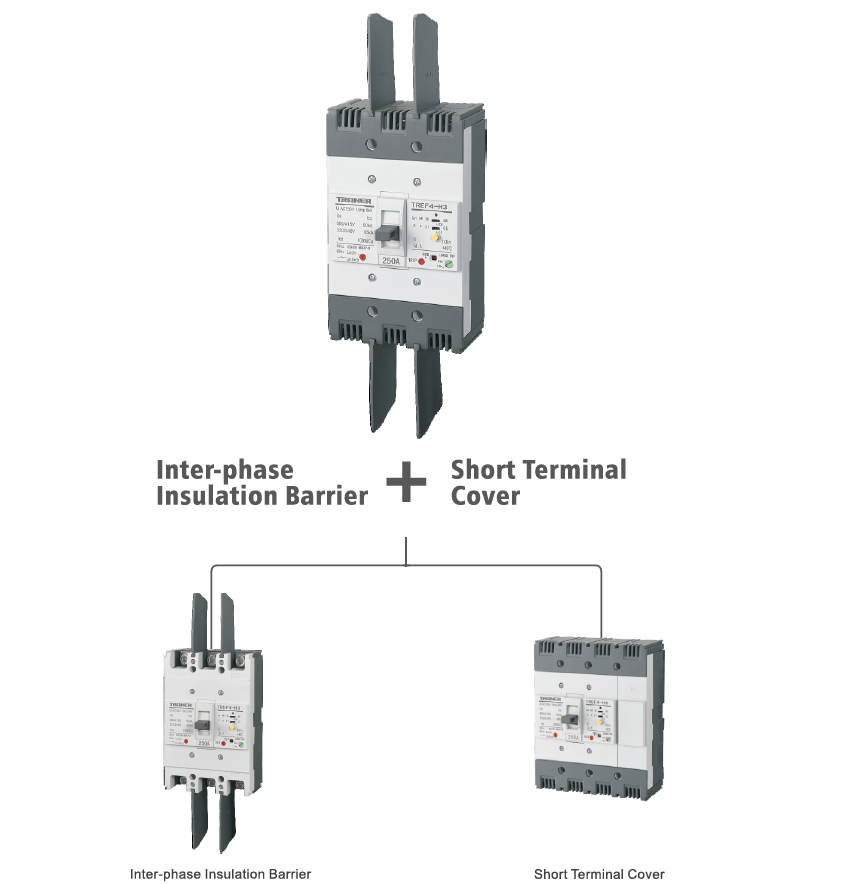

Built-out Accessories:
