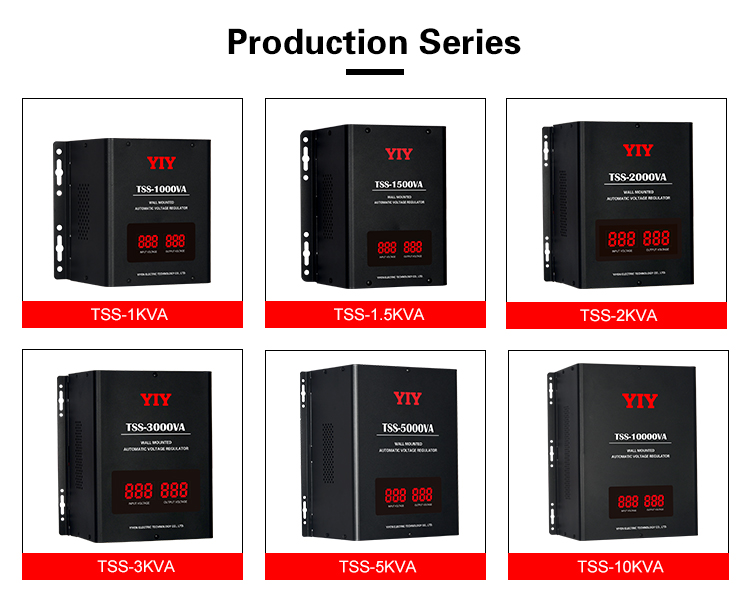

TSS Series Single Phase Wall Mounted Servo Type Volage Stabilizer
Inquire Now
? Over voltage & Under voltage protection
? Over temperature protection
? Reaction time( voltage stabilization time) ≤60ms
? Short delay (5s) & Long delay (255s)
? High precision: 220VAC±3%

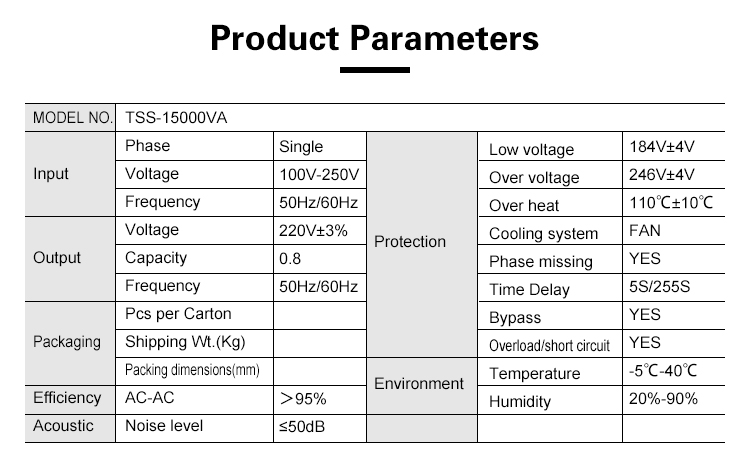

| Specification | 500VA | 1000VA | 1500A | 2000VA | 3000VA | |
| Input | Phase | Single phase | ||||
| Voltage | AC130V-250V/70V-150V/160V-250V(Customization) | |||||
| Frequency | 50Hz/60Hz | |||||
| Output | Voltage | 220V/230V/240V±2% or 110V/120V/130V±2%(Optional) | ||||
| Capacity | 400W | 800W | 1200W | 1600W | 2400W | |
| Frequency | 50Hz/60Hz | |||||
| Protection | Low voltage | AC184±4V/AC105V±4V | ||||
| Over voltage | AC246±4V/AC142V±4V | |||||
| Time delay | 5 sec/255 sec selectable | |||||
| Overload/short circuit | Dual protection(fuse+MCU) | Dual protection(MCB+MCU) | ||||
| Packaging | Pcs per carton | 4 | 1 | |||
| Shipping Wt.(Kg) | 16.6 | 21.35 | 23.15 | 27.9 | 11.45 | |
| Packing dimensions(mm) | 245*340*425 | 495*285*390 | 355*295*240 | 365*275*280 | 540*325*270 | |
| Efficiency | AC-AC | 98% | ||||
| Acoustic | Noise level | ≤50dB | ||||
| Environment | Temperature | 一5℃ to 40℃ | ||||
| Humidity | 20% to 90% | |||||
| QTY(pcs) | 20FT | 3200 | 2100 | 2100 | 1120 | 1120 |
| Specification | 5000VA | 8000VA | 10000A | 12000VA | 15000VA | |
| Input | Phase | Single phase | ||||
| Voltage | AC130V-250V/70V-150V/160V-250V(Customization) | |||||
| Frequency | 50Hz/60Hz | |||||
| Output | Voltage | 220V/230V/240V±2% or 110V/120V/130V±2%(Optional) | ||||
| Capacity | 4000W | 6400W | 8000W | 10000W | 12000W | |
| Frequency | 50Hz/60Hz | |||||
| Protection | Low voltage | AC184±4V/AC105V±4V | ||||
| Over voltage | AC246±4V/AC142V±4V | |||||
| Time delay | 5 sec/255 sec selectable | |||||
| Overload/short circuit | Dual protection(MCB+MCU) | |||||
| Packaging | Pcs per carton | 1 | ||||
| Shipping Wt.(Kg) | 20.8 | 27.65 | 27.65 | 30.5 | 30.5 | |
| Packing dimensions(mm) | 540*325*270 | 610*360*305 | 610*360*305 | 370*330*580 | 370*330*580 | |
| Efficiency | AC-AC | 98% | ||||
| Acoustic | Noise level | ≤50dB | ||||
| Environment | Temperature | 一5℃ to 40℃ | ||||
| Humidity | 20% to 90% | |||||
| QTY(pcs) | 20FT | 600 | 420 | 420 | 420 | 420 |
