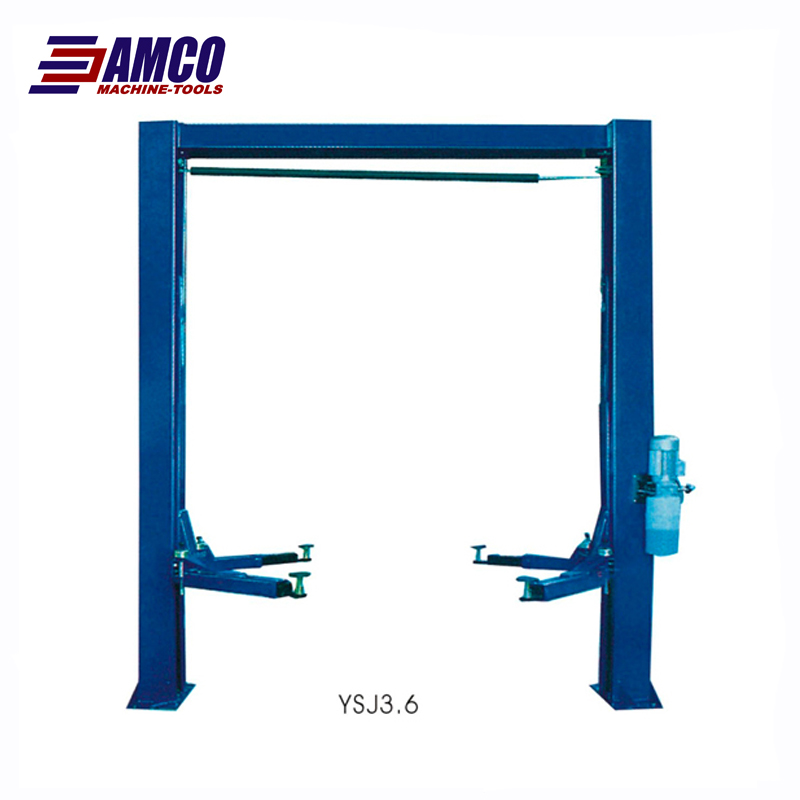

Two Post LifterYSJ3.6C
Inquire NowDescription
The Two Post Lifter YSJ3.6C is a robust and reliable solution for automotive lifting needs, designed for efficiency and safety in mind. This lifter features a single-point manual lock release and incorporates a high-quality power unit equipped with an aluminum motor, ensuring durability and performance. Its operation is facilitated by the synchronization of double cylinders, along with a steel cable that provides left and right synchronization. The built-in limit switch at the top position offers an additional layer of safety, while the 24V safety voltage control box guarantees secure functionality during use.
Specifications
Lifting Capacity | Min. Height | Max. Height | Overall Height | Width Between Columns | Overall Width | Lifting Time | Lowering Time |
---|---|---|---|---|---|---|---|
3600Kg/4000Kg | 100mm | 1850mm | 3612-3912mm | 2860mm | 3470mm | 60s | >30s |
Additional Information
- Single-point manual lock for easy operation
- High-quality aluminum motor for enhanced performance
- Safety features built-in for secure lifting
