tyre Changers

Inquire Now

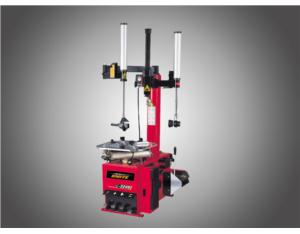

Name：tyre ChangersModel：U-228Introduction：Luxurious dual body, bigger and strengthen backward column, luxurious dual helper arms, quick air booster system, standard tyre Changers

Motor power
0.75kw/0.55kw/1.1 kw
Power supply
220V/400V/110V
Max .wheel diameter
1143mm(45＂)
Max .wheel width
406mm(16＂)
Outside clamping
12″～25″
Inside clamping
14″～28″
Air supply
8bar
Bead breaker force
2500kg
Noise level
<75dB
Package size(main body)
1200*1230*940mm
Package size(help body)
1230*450*350mm
Package size(help body)
1550*310*550mm
Weight
445/395kg
◆Full automatic pneumatic tilting arm , pneumatic locked optional position
◆Heighten , lengthen double helper arms, advance the covering surface
◆Left and right helper arms , goes up and down balanced controlled by pneumatic
◆Centering device keep the tyre and turntable in one concentric circle
◆Double helper arms demount the tyre easily , suitable for any kind of tyre
◆360°rotary type pressing shovel
◆28″large turntable and powerful motor, suitable for low profile tyre
◆Quick air booster makes the tyre and rim jointed instantly , especially suitable for low profile tyre
