U baffle ceiling roll forming machine
Inquire NowDescription

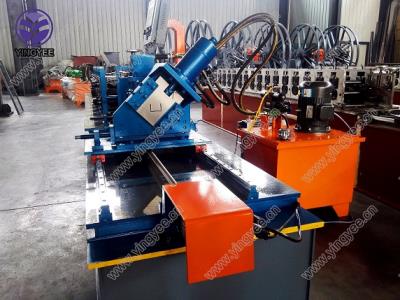

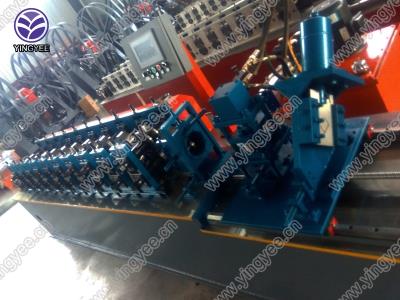

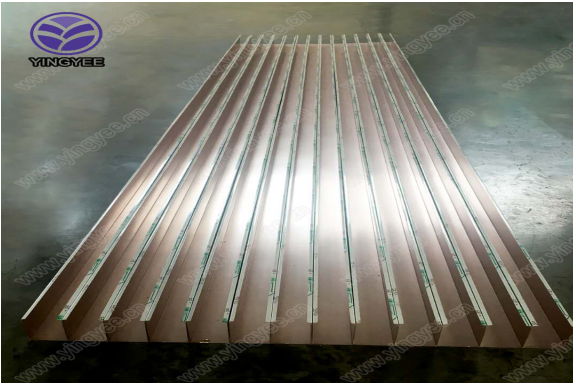

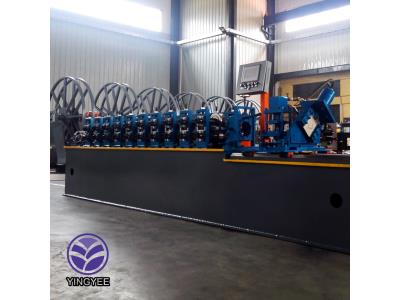

The U Baffle Ceiling Roll Forming Machine is a state-of-the-art production line designed for manufacturing U-shaped baffle ceilings. This machine combines efficiency and precision, making it ideal for the creation of high-quality ceiling panels. It includes essential components such as a vertical decoiler, feeding guide system, a robust forming system, and an advanced servo hydraulic cutting mechanism. Each machine is engineered to handle demanding production environments while ensuring top-notch output quality.

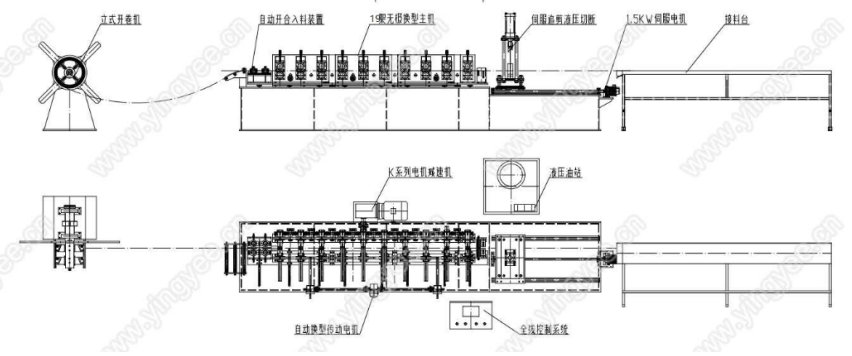

Included Components:
- Vertical Decoiler x1
- Feeding Guide System x1
- Mainly Forming System x1
- Servo Hydraulic Cutting x1
- Hydraulic Station with Cooling Fan x1
- Full Line Control System x1
- Ramp Receiving Table x1
Designed with a user-friendly interface, the machine ensures seamless operation, allowing for optimal production speed and quality control. The U Baffle Ceiling Roll Forming Machine is an indispensable asset for manufacturers looking to enhance their ceiling production capabilities.
Specifications
| Specification | Details |
|---|---|
| Main Power | 7.5 kW |
| Forming Speed | 30 m/min |
| Shaft Material/Diameter | #45 Steel, 60 mm (Cementation) |
| Roller Material | Cr12 with Heat Treatment |
| Forming Steps | 19 steps |
| Driving Mechanism | Chain and Gear |
| Voltage | 380V 50Hz 3 Phase (customizable) |
| Cutting Power | 1.5 kW |
| Hydraulic Station Power | 4 kW |
Additional Information
The machine features an advanced electronic component system, including:
- Inverter: Delta (Taiwan)
- Encoder: Omron (Japan)
- Servo Motor: Shanghai Zoncn
- Low-Voltage Apparatus: CHNT (China)
For optimal performance, it is essential to maintain proper voltage and adhere to usage guidelines as provided in the operational manual.
