Description

UJBC Underground Insulation Piercing Connector is designed for underground branch connections in low voltage applications. This versatile connector efficiently accommodates both insulated copper and aluminium cables, ensuring reliable and safe connectivity.

The connector body and teeth are crafted from a corrosion-resistant aluminium alloy, providing high mechanical strength and durability. The insulation sheath and rubber cap are made from weather and UV-resistant materials, enhancing longevity and performance in various environmental conditions.

Key features include a specially designed shear head bolt that allows for efficient installation with specific shear-off torque, ensuring that the teeth penetrate the cable without compromising the mechanical strength of the conductor. Additionally, the cable port and rubber cap are pre-filled with silicone grease to guarantee optimal insulation performance. The design also allows for an easy and safe installation without the need for stripping cable insulation, and a viewing window enables users to check the cable installation position.

This product meets the standard ANSI C 119.1-2011, making it a reliable choice for professionals in the field.

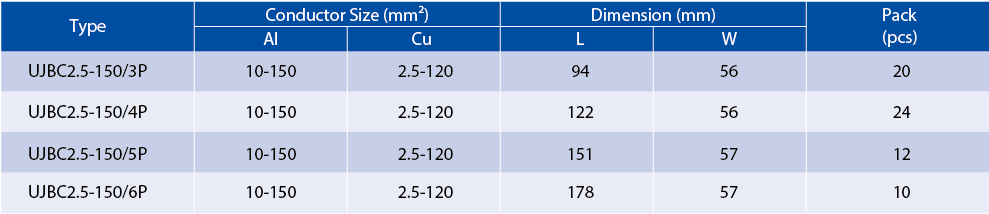

Specifications

Attribute Details
Material Corrosion-resistant aluminium alloy, weather and UV resistant materials
Application Underground branch connections in low voltage
Standard ANSI C 119.1-2011

Additional Information

For ease of installation, ensure to check the cable’s position through the viewing window before finalizing the connection.
