UL AC air conditioning 2POLE 30A definite purpose Contactor
Inquire NowDescription
The UL AC Air Conditioning 2POLE 30A Definite Purpose Contactor is a robust and reliable solution for HVAC applications. Designed for use in commercial settings, this contactor is perfect for air conditioning systems, refrigeration units, resistive heating, and lighting installations. With its silver cadmium oxide contacts, it ensures a high-performance operation while maintaining safety and efficiency. Built to meet or exceed the American and Canadian electrical standards, this contactor is a testament to quality engineering and durability.
Specifications
| Attribute | Value |
|---|---|
| F/L Inductive Amps | 30A |
| Poles | 2P |
| Resistive Amps | 40A |
| Coil Voltage | 120V |
| Hertz | 50/60 |
| Locked Rotor Amps 240/480/600 | 180/150/120 |
Additional Information
HCDP series Definite Purpose Contactors are suitable for commercial applications including air conditioners, refrigeration, resistive heating, lighting, and many other installations where a low-cost, high-performance contactor is needed. These devices offer flexibility and are designed to meet or exceed electrical and mechanical requirements as defined by Definite Purpose Contactors standards of USA/Canada.
Main Production Data:

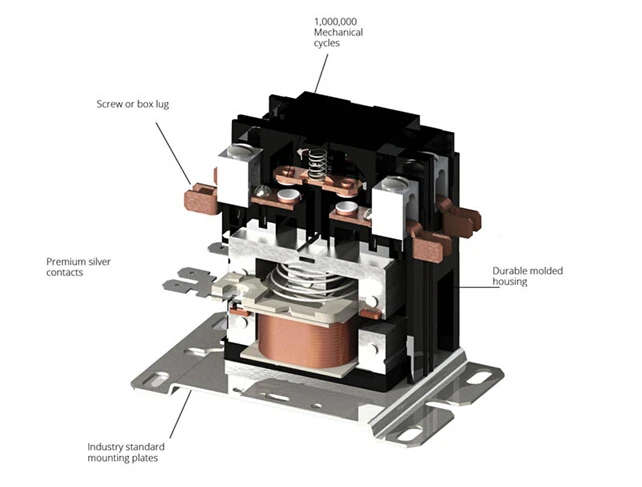

- Silver Cadmium Oxide Contacts
- Ranges: 20 – 90 FLA
- Poles: 1pole, 1.5pole, 2pole, 3pole, 4pole
- Coil Voltages: 24, 110/120, 208/240, 277 VAC
- Terminations: #10-32 screw – 20, 25 & 30 FLA Models, Box Lug – 40, 50, 60, 75 & 90 FLA Models
- Temperature Range: -40°F to +150°F / -40°C to +65°C
- UL Listed, CSA, S MARK, CCC Approved
Options:
- 1, 2, 3, and 4 Pole Configurations
- 24, 120, 240, and 480 VAC Coils
- Wide range of electrical ratings
- Screw, Box or Pressure Plate Connections
- NEMA mounting base
- NO/NC End Switch Kits
