Quick Details
Warranty:2 years
After-sale Service:Free spare parts, Return and Replacement
Project Solution Capability:graphic design, 3D model design, total solution for projects, Cross Categories Consolidation
Application:Villa
Design Style:Modern
Place of Origin:Shanghai, China
Brand Name:Smlege
Type:Floor Heating Parts
Floor Heating Part Type:Floor Heating Thermostats
Material:Anti-flammable PC +ABS
Supply Ability:20000 Piece/Pieces per Month
Packaging Details:50 units/carton 40*31*24cm 13kg
Port:SHANGHAI/NINGBO
Lead Time :
Quantity(Pieces) 1 – 10000 >10000
Est. Time(days) 30 To be negotiated

underfloor heating base station

Base station is the central connection unit of a roomby-room temperature control for the surface temperature adjustment of heating systems.
Base station is available in the versions with 8 zones in 230 V. With minimum expense, it can be wired to all system components as e. g. thermostats and actuators. The system components are supplied directly with the voltage supply of bass station.
All switching commands for the thermostats are forwarded directly to the connected system components.

Feature:

* Design with 8 zones
* 230 V version
* A maximum of 16 actuators can be connected
* Equipment for heating
* Simple, intuitive installation and operation
* Status signalling by LEDs
* Proven cable guide and standard-complying strain relief
* Screw less terminal connection technique
* Clearly structured connection terminals

* Pump and boiler control
* Control direction : NC (normally close)
* High functional security
* 120s delayed start,prevent conflicts between internal and external water pump
* Maintenance-free

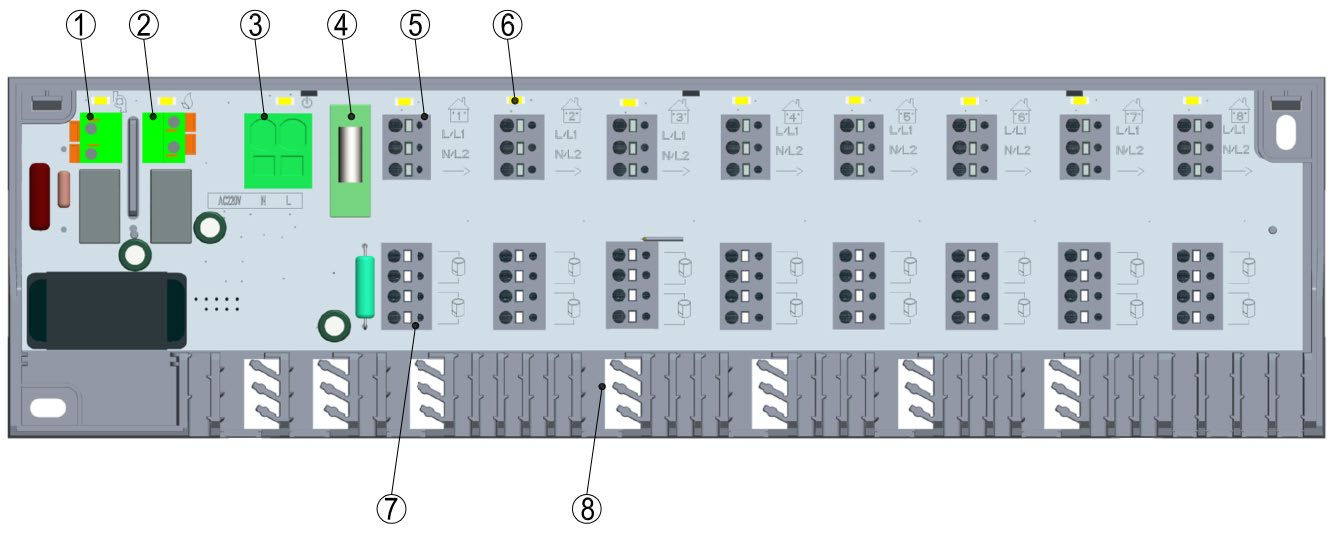

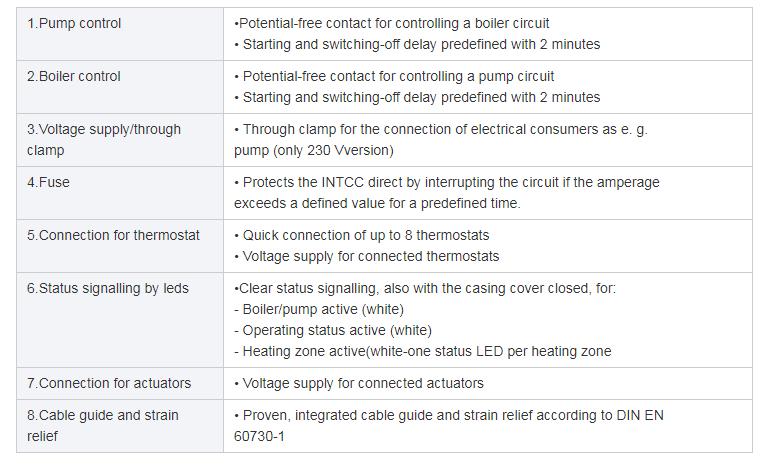

Device overview:

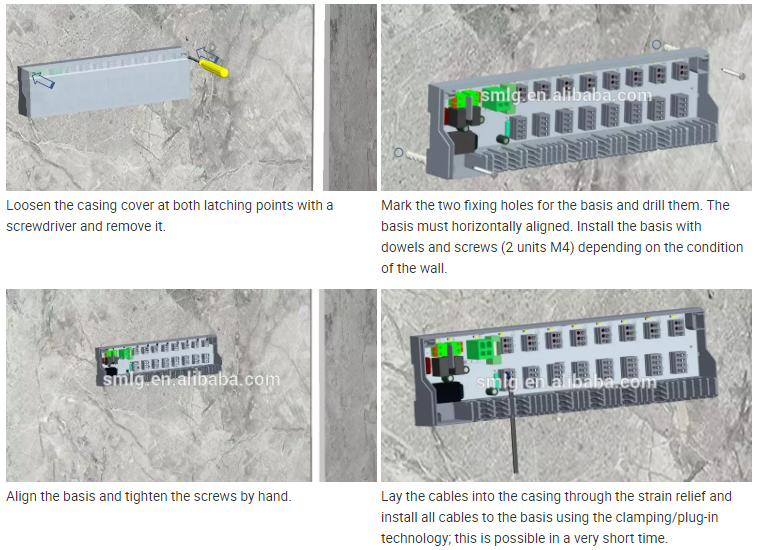

Wall Installation

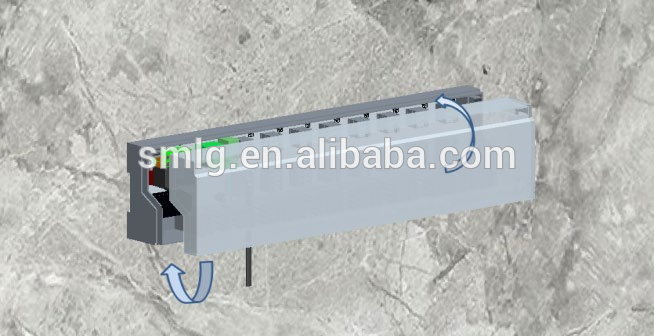

Close the cover and apply mains voltage. Now the basis is ready to operate.

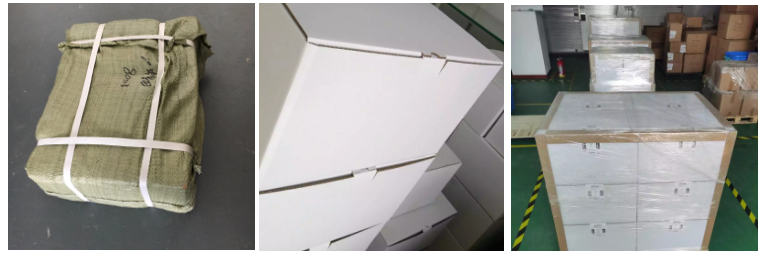

Product packaging

FAQ

Q: Are you trading company or manufacturer ?
A: Both, actually we are both factory and trading company.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to
quantity.

Q: Do you provide samples ? is it free or extra ?
A: No, we couldn’t offer the sample for free charge and do not pay the cost of freight.

Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 30% T/T in advance ,balance before shipment.
If you have another question, pls feel free to contact us

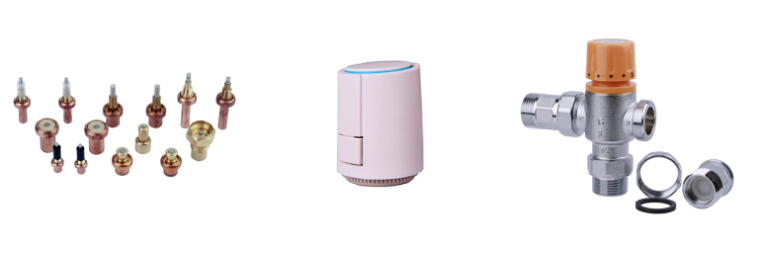

Main Products

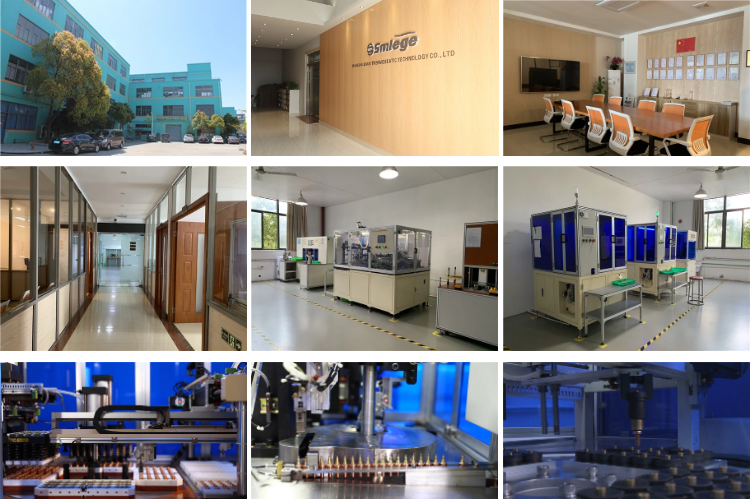

Company Profile
