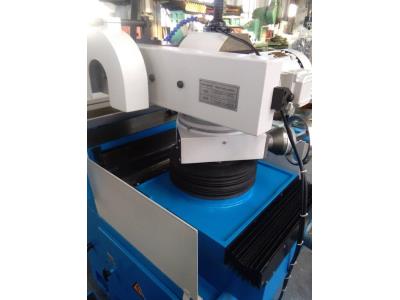

Universal Bit Multi-purpose Bench Cnc Surface Grinding Machine
Inquire NowDescription
The Universal Bit Multi-purpose Bench CNC Surface Grinding Machine is an essential tool for professionals in tooling and mold building, mechanical fabrication, development, laboratories, and training settings. Crafted from solid gray cast iron, this machine minimizes vibrations, ensuring precision and durability. Weighing in at an impressive 1300 kg, it excels at internal and external cylindrical grinding, conical grinding, and tool grinding for various equipment such as cutters, drills, and chisels. Additionally, it facilitates the grinding of flat surfaces, making it a versatile asset in any workshop.
Specifications
| Model | 14101 | 14102 |
|---|---|---|
| Specification | MTG20A | MTG25 |
| Max Sowing Diameter Over Table | 200mm | 250mm |
| Max Workpiece Length | 500mm | |
| Size for Surface Grinding (L*W) | 300*125mm | |
| Size for Cutter Grinding | 200-500mm | |
| Max Weight of Workpiece | 10kg | |
| Workhead Spindle Speeds | 110, 200, 300rpm | 60, 90, 120, 175, 235, 345rpm |
| Workhead Swivel | ＋90° | |
| Speed of Wheelhead Up-Down Travel | 280mm/min | |
| Internal Grinding Spindle Speed | 13500rpm | |
| Longitudinal Table Travel Hand Control | 500mm | |
| Table Traverse Speed | ＜7 m/min | |
| Max Swivel of Table | ＋45 -30° | |
| Total Power | 2.905kw | 3.105kw |
| Overall Dimensions | 1520x1133x1173mm | 1520x1220x1360mm |
| Size of Case | 1820x1400x1630mm | 2000x1520x1630mm |
| Gross Weight / Net Weight | 1700/1285kg | 1780/1380kg |
| Old Model | 2M9120A | 2M9125 |
Additional Information
This grinding machine features a unique three-point bearing system that ensures minimal temperature effects on grinding quality. The hydraulic feed mechanism allows for efficient table movement, with a maximum longitudinal feed rate of up to 7 m/min. The grinding head allows for the simultaneous adjustment of two different wheels, with three adjustable speeds (110, 200, 300 min-1) for tailored performance.
