Universal Bus iK3 Series Servo Drives 5kW,220v
Inquire NowDescription
The Universal Bus iK3 Series Servo Drives deliver exceptional power and precision, designed specifically for advanced applications that demand high performance and adaptability. With a robust 5kW output and compatibility with a 220V power supply, these servo drives excel in performance metrics, showcasing a current loop frequency response greater than 2.5 kHz and a speed loop frequency response exceeding 1.6 kHz.
Equipped with a 23-bit absolute encoder and a Kalman observation algorithm, the iK3 Series ensures unparalleled accuracy and responsiveness. Its unique features, such as the multi-axis synchronization algorithm achieving accuracy within 0.1 microseconds, make it a standout choice for complex, synchronized motion tasks. Enjoy the benefits of enhanced motor control, including rapid speed response due to its weak magnetic observation and control functionality.
Adaptable to various mechanical structures, the servo drives utilize a standard EtherCAT communication protocol for seamless integration with any EtherCAT bus controller. Additional functionalities like active resonance suppression, end jitter suppression, friction compensation, and groove torque compensation further optimize performance across diverse applications. Designed with a thickened three-proof paint process, these drives resist moisture and corrosion, ensuring durability in challenging environments.
Safety is paramount; the iK3 Series complies with international standards, featuring security functions such as SS1, SS2, and SBC for reliable operation. For user convenience, an optional hand-held operation panel is available for easy parameter setting and monitoring, simplifying system debugging and enhancing user experience.

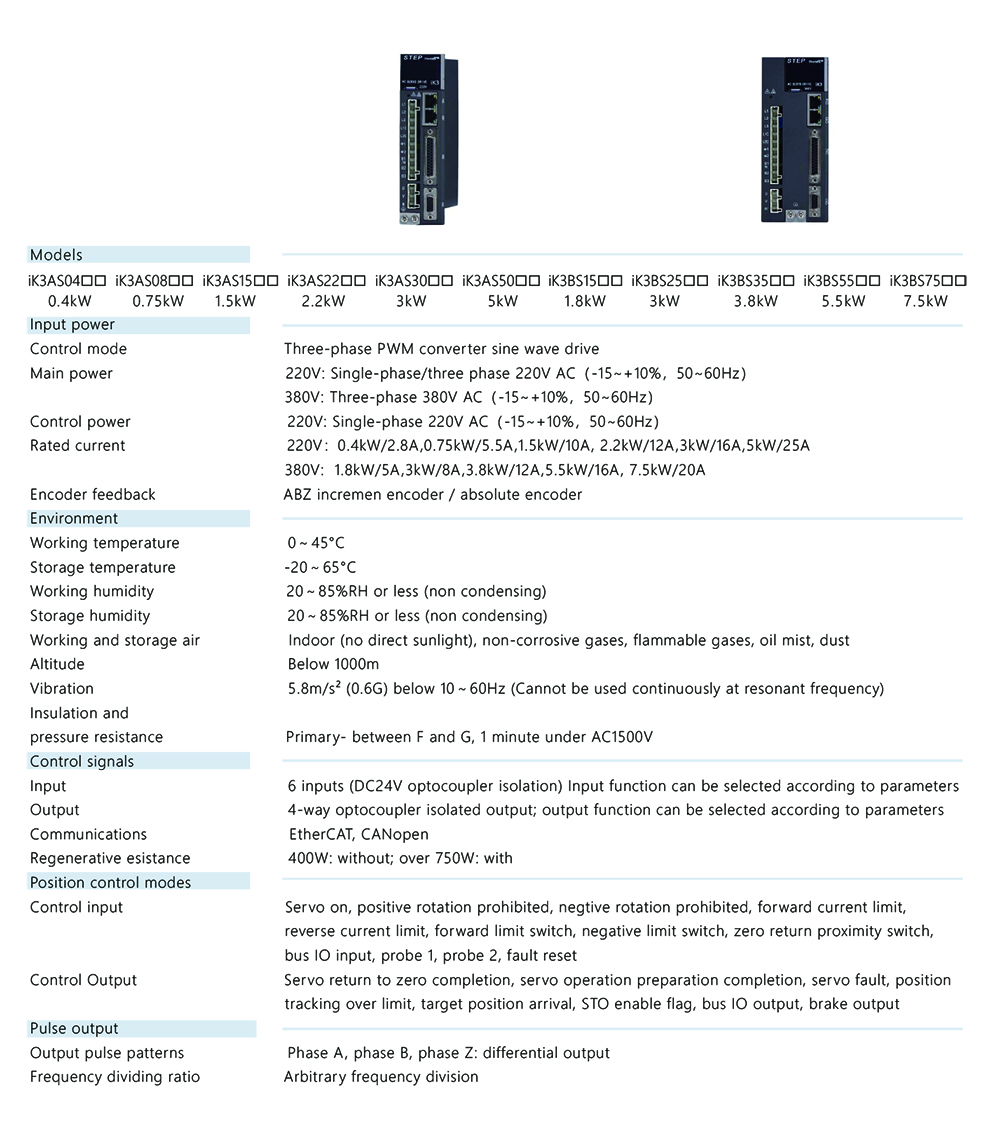

Specifications
Attribute | Details |
---|---|
Output Power | 5 kW |
Voltage | 220 V |
Current Loop Frequency Response | > 2.5 kHz |
Speed Loop Frequency Response | > 1.6 kHz |
Encoder Type | 23-bit Absolute Encoder |
Synchronization Accuracy | < 0.1 μs |
Communication Protocol | EtherCAT |
Safety Functions | SS1/SS2/SBC |
Additional Information
- Active resonance suppression
- End jitter suppression
- Friction compensation
- Groove torque compensation
- Environmental resistance with thickened three-proof paint process
