Universal Linear Quad Ku-band LNB
Inquire NowDescription

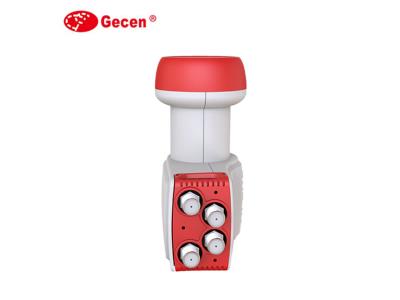

The Universal Linear Quad Ku-band LNB is a cutting-edge device designed for optimal satellite signal reception. Compliant with DVB-S2 for both HD and UHD broadcasts, this LNB boasts a low noise figure, ensuring high-quality performance with minimal interference. With a focus on energy efficiency, it operates with low power consumption while providing excellent cross-polarization isolation and frequency stability. Its robust housing is engineered to withstand extreme temperatures and harsh weather conditions, featuring UV-resistant materials and a custom-fit weather protection cap to enhance durability.
- Compatible with various satellite systems
- Perfect for both residential and commercial installations
- Reliable performance under various environmental conditions
Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Input Frequency Range | Low Band: 10.70~11.70GHz | Gain Flatness | ±0.5dB/27MHz |
| High Band: 11.70~12.75GHz | Cross POL. Isolation | 20dB (Min.) | |
| Output Frequency Range | Low Band: 950~1950MHz | Image Rejection | 40dB (Min.) |
| High Band: 1100~2150MHz | Output VSWR | 2.0:1 (Typ.) | |
| L.O. Frequency | Low Band: 9.75GHz | P1dB | 0dBm (Min.) |
| High Band: 10.60GHz | DC Current Consumption | 130mA (Typ.) | |
| L.O. Frequency Stability | ±1.0MHz (Max.) @ +25℃ | Low/High Band Switching | Low Band: 0Hz |
| ±2.0 MHz (Max.) @ -30℃ ~ +70℃ | High Band: 22KHz ± 4KHz | ||
| L.O. Phase Noise | -75dBc/Hz @ 1KHz | POL. Switching Voltage | 10.5~14.0V @ Vertical |
| -80dBc/Hz @ 10KHz | 16.0~20.0V @ Horizontal | ||
| -90dBc/Hz @ 100KHz | Relative Humidity | 0%~95% | |
| Conversion Gain | 60dB (Typ.) | Operating Temperature | -30℃ ~ +70℃ |
| Noise Figure | 0.6dB (Typ.) | Connector Type | 75Ω Female Connector |
Additional Information
To ensure optimal performance of the Universal Linear Quad Ku-band LNB, it is recommended to install it in a location that minimizes obstructions and interference. Regular maintenance checks will help keep the device functioning at its best.
