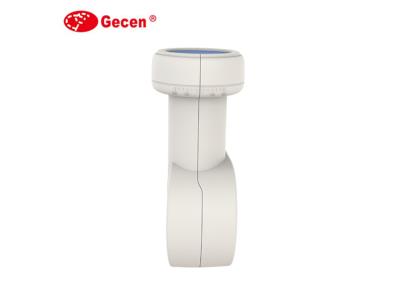

Universal Linear Wide Band LNB
Inquire NowDescription
The Universal Linear Wide Band LNB is designed for optimal performance in satellite communication, complying with DVB-S2 standards for both HD and UHD signal reception. This high-quality LNB offers exceptional features, including a low noise figure and low power consumption, ensuring efficient operation. Its high cross-polarization isolation and remarkable frequency stability make it an excellent choice for users seeking reliable signal integrity in various environmental conditions. Additionally, the LNB is designed to withstand extreme temperatures and is equipped with a UV-resistant weather protection housing, along with a custom-fit weather protection cap, guaranteeing durability and longevity.
Specifications
| Item | Specification | Item | Specification |
|---|---|---|---|
| Input Frequency Range | 10.70 ~ 12.75 GHz | Cross POL. Isolation | 25 dB (Typ.) |
| Output Frequency Range | Low Band: 950 ~ 1950 MHz | ||
| High Band: 1100 ~ 2150 MHz | |||
| Vertical: 290 ~ 2340 MHz | |||
| Horizontal: 290 ~ 2340 MHz | |||
| L.O. Frequency | 9.75GHz/10.6GHz | ||
| 10.41 GHz | Image Rejection | 40 dB (Typ.) | |
| L.O. Frequency Stability | +1.0 MHz (Max.) @ +25°C | ||
| +2.0 MHz (Max.) @ -40°C ~ +60°C | Output VSWR | 2.0:1 (Max.) | |
| Noise Figure | 1.0 dB (Typ.) | Power Voltage | 9 ~ 19V DC |
| Conversion Gain | 50 ~ 60dB | Output Connector Type | 75Ω Female Connector |
| Gain Flatness 26MHz Bandwidth | +0.5dB (Typ.) | Output Spurious | <-60dBm |
| Operating Temperature | -40°C ~ +60°C | ||
| Gain variation | 7dBm (Max) @ full band |
Additional Information
This LNB is ideal for various satellite applications, providing a reliable solution for users needing enhanced signal quality and stability in diverse weather conditions.
