Universal Pulse K1 Series Servo Drive 7.5kW ,380V
Inquire NowDescription
The Universal Pulse K1 Series Servo Drive is a powerful 7.5kW control solution designed for high-performance motion control applications. With an operating voltage of 380V, this servo drive features advanced internal positioning modes that allow for continuous multi-path planning and rich motion control. It supports up to 32 data sets, each customizable for pulse number or angle, and allows precise settings for speed, acceleration, deceleration, and emergency deceleration.
Stability is a key feature of the K1 Series, equipped with mechanical resonance frequency analysis and two sets of adjustable trap filters, which effectively mitigate low-frequency resonance and mechanical end vibrations. Users can also set vibration frequency and damping to achieve optimal performance.
This multifunctional servo drive incorporates frictional torque compensation to reduce static friction effects during mechanical commutation, enhancing command following performance at low speeds. Additionally, it supports a multibus communication protocol, specifically CANopen, facilitating versatile integration into various systems.
Designed with ease of operation in mind, the K1 Series provides support for debugging software and mechanical characteristics analysis, ensuring intuitive parameter setting and monitoring for users.

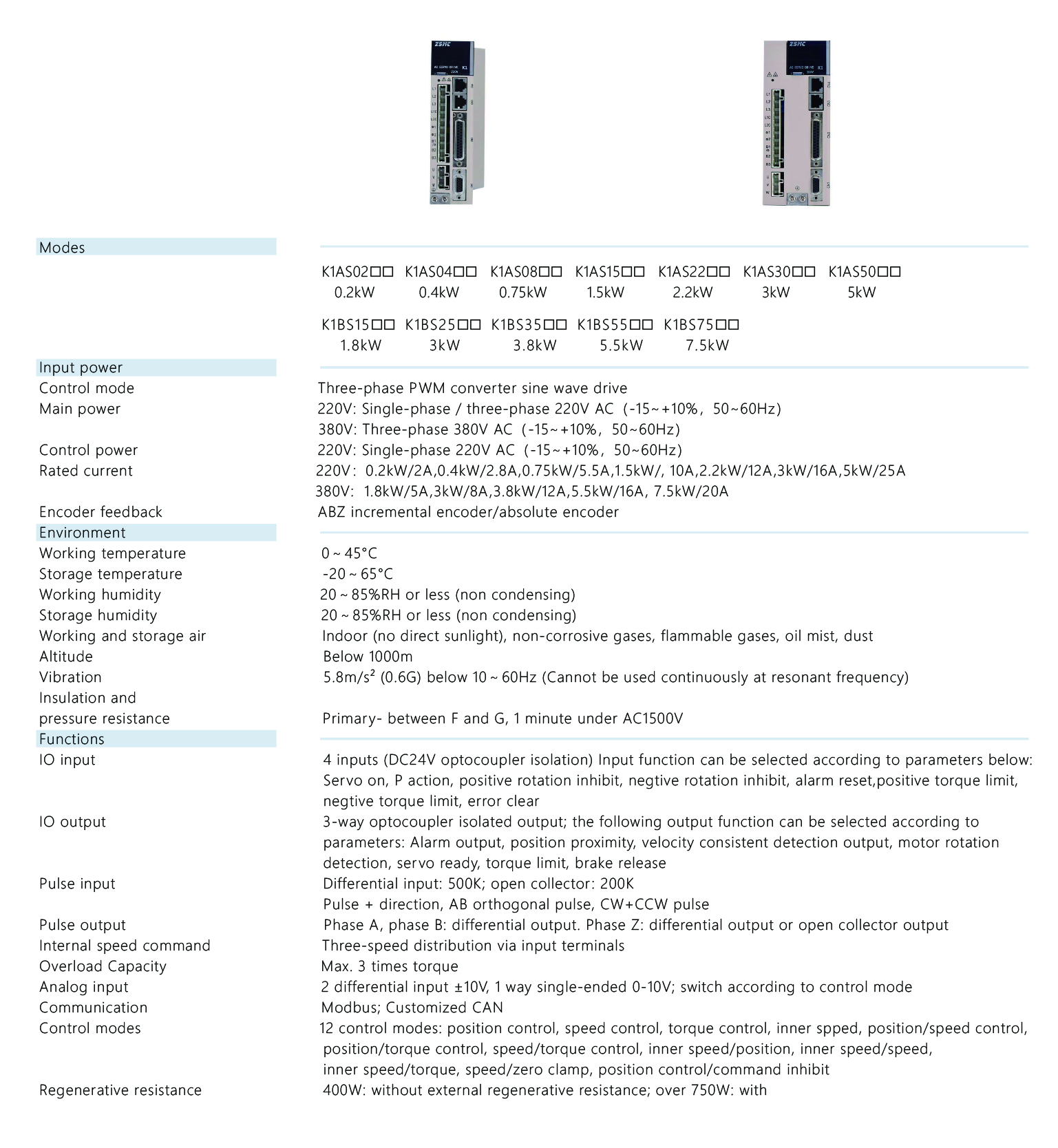

Specifications
| Attribute | Details |
|---|---|
| Power Rating | 7.5 kW |
| Operating Voltage | 380V |
| Internal Position Mode | Multiple data sets up to 32 |
| Frequency Range | 50 ~ 5000 Hz |
| Vibration Frequency | 1 ~ 100 Hz |
| Communication Protocol | CANopen |
Additional Information
- Automatic load inertia determination for optimal gain
- Support for frictional torque compensation
- Easy debugging and parameter monitoring functions
