Description

The Universal Pulse K1 Series Servo Drive is a high-performance 3.8kW, 380V unit designed for advanced motion control applications. This intelligent servo drive stands out with its powerful internal position mode, enabling continuous multi-path planning and accommodating up to 32 data sets for precise motion execution. Each data set can be customized with specific pulse counts or angles, and the internal position mode allows for tailored speed, acceleration, deceleration, and emergency stops.

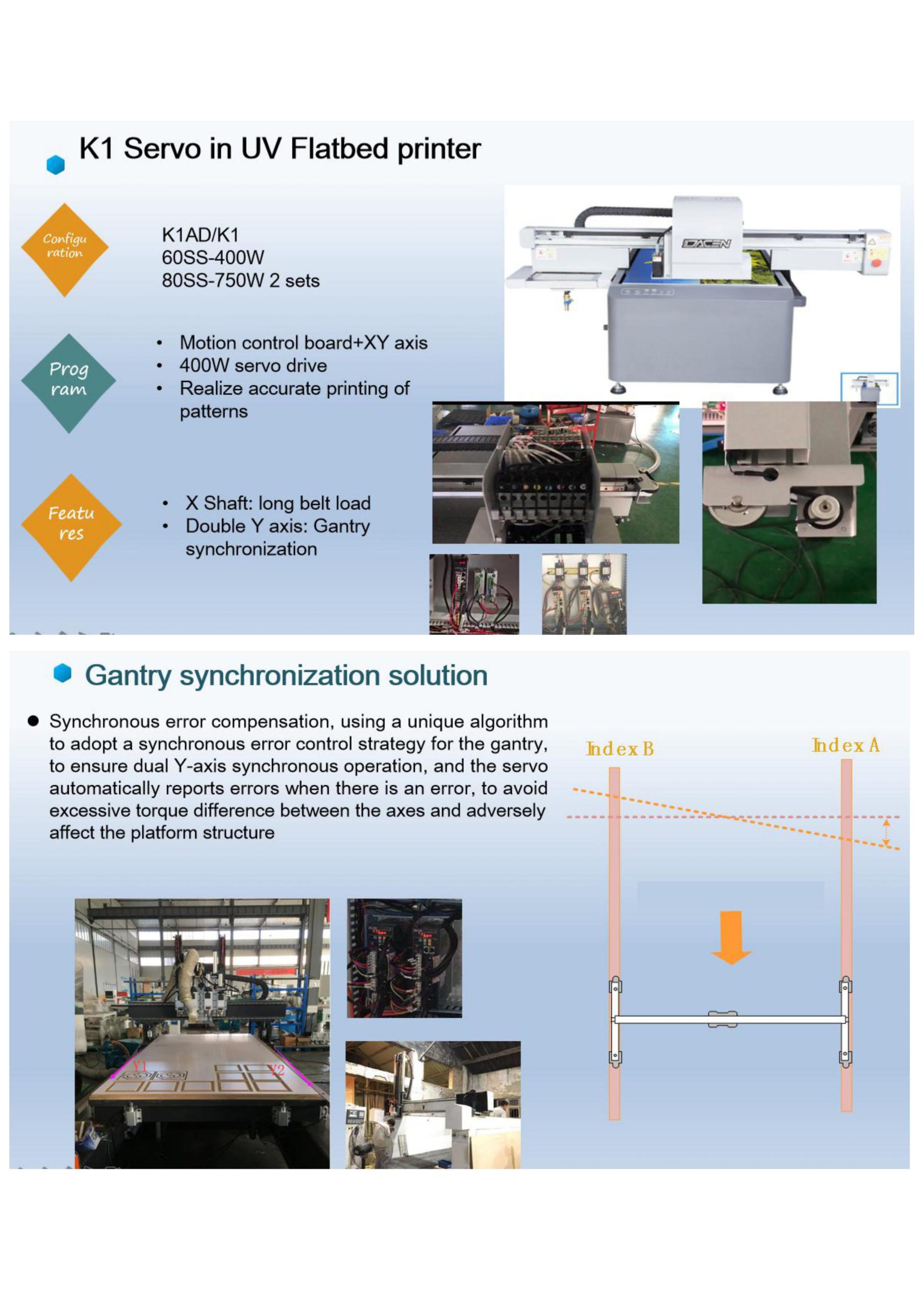

With its stable performance features, the K1 Series incorporates mechanical resonance frequency analysis and two sets of adjustable trap filters (ranging from 50 to 5000Hz) to effectively mitigate low-frequency resonance and mechanical vibrations. Users can also set vibration frequency (1 to 100Hz) and damping to optimize their applications.

This multifunctional servo drive includes frictional torque compensation to alleviate static friction effects during mechanical commutation, thereby enhancing command-following capabilities at low speeds. It supports CANopen multibus communication, making it a versatile choice for various industrial automation tasks.

Ease of operation is a key advantage of the K1 Series, with user-friendly debugging software that facilitates mechanical characteristics analysis, parameter settings, and real-time monitoring for an intuitive operational experience.

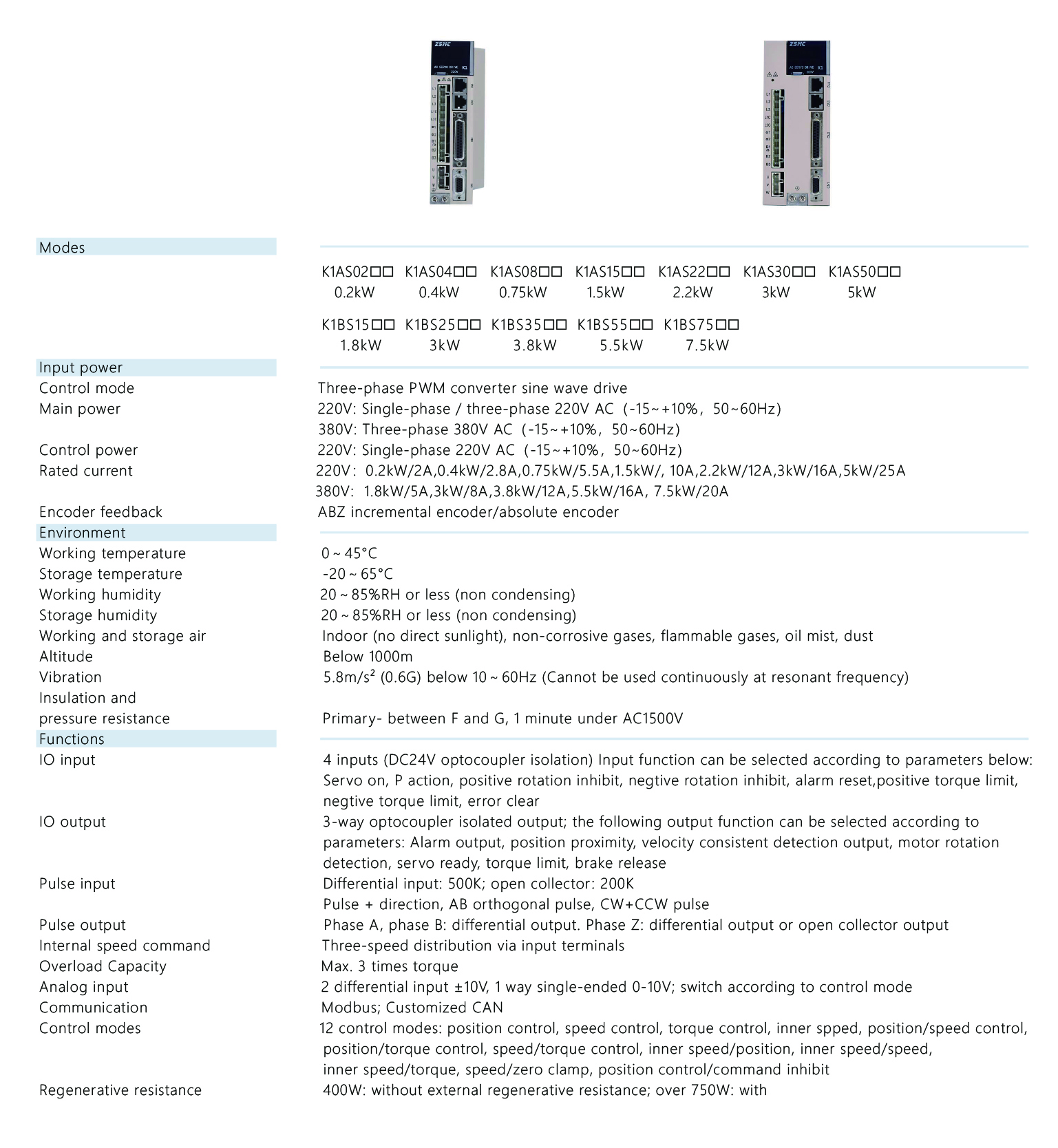

Specifications

Additional Information

• Intelligent Motion Control: Allows for rich motion control capabilities.
• Automatic Load Inertia Detection: Optimizes gain settings for faster commissioning.
• Vibration Damping: Adjustable settings to overcome mechanical vibration challenges.
