Upright Drilling Machine Z5032/1 Z5040/1 Z5045/1
Inquire NowDescription

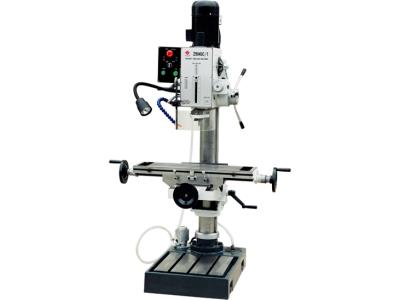

The Upright Drilling Machine Z5032/1, Z5040/1, and Z5045/1 are versatile tools designed for precision drilling, milling, and tapping tasks. With a robust design, these machines feature a head that can swivel 360 degrees horizontally, allowing for enhanced flexibility in operation. The headstock and worktable can move up and down perpendicularly, ensuring accurate positioning for various applications. The super high column and precision micro feed contribute to the machine’s overall performance, while the positive spindle lock guarantees safety and stability during use. The distinct auto device for releasing tools simplifies operation, making it user-friendly, and the geared drive minimizes noise levels, promoting a quieter working environment.
Specifications
| Feature | Z5032/1 | Z5040/1 | Z5045/1 |
|---|---|---|---|
| Max. drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M. T. 3 or R8 | M. T. 4 | M. T. 4 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Step of spindle auto-feeding | 6 | 6 | 6 |
| Range of spindle auto-feeding amount | 0.06-0.30mm/r | 0.06-0.30mm/r | 0.06-0.30mm/r |
| Min. distance from spindle axis to column | 290mm | 290mm | 290mm |
| Max. distance from spindle nose to worktable | 725mm | 725mm | 725mm |
| Max. distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
| Max. travel of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock (horizontal) | 360° | 360° | 360° |
| Max. travel of worktable bracket | 600mm | 600mm | 600mm |
| Worktable size availability | 380×300mm | 380×300mm | 380×300mm |
| Swivel angle of table horizontally | 360° | 360° | 360° |
| Table leaned | ±45° | ±45° | ±45° |
| Size of stand worktable availability | 417×416mm | 417×416mm | 417×416mm |
| Motor power | 0.75KW (1HP) | 1.1KW (1.5HP) | 1.5KW (2HP) |
| Voltage/Frequency | As customer’s requirement | As customer’s requirement | As customer’s requirement |
| Speed of motor | 1400 r.p.m | 1400 r.p.m | 1400 r.p.m |
| Cooling pump power | 0.04KW | 0.04KW | 0.04KW |
| Net weight/Gross weight | 437kg/487kg | 442kg/492kg | 442kg/492kg |
| Packing size | 1850×750×1000mm | 1850×750×1000mm | 1850×750×1000mm |
| Loading amount | 18pcs/20″ container | 18pcs/20″ container | 18pcs/20″ container |
Additional Information
Standard accessories:
Drill chuck 1-13mm, Removing Block, Drill chuck arbor
Optional accessories:
90mm parallel vise, 125mm parallel vise, milling cutter holder, drill chuck, mill chuck, coolant system, working lamp, auto-tapping electrical, boring bar
