Upright Drilling Machine (Z5032 Z4040 Z5045)
Inquire NowDescription

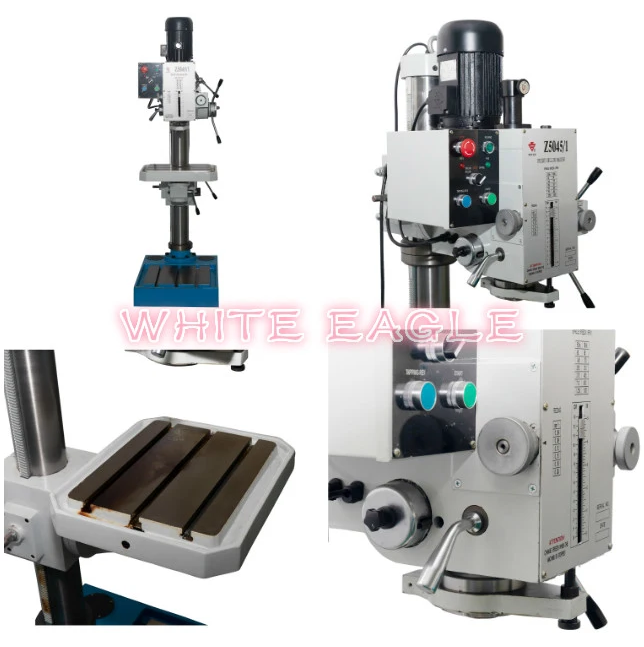

The Upright Drilling Machine (Models: Z5032, Z4040, Z5045) is a versatile and powerful tool designed for drilling, milling, and tapping operations. This machine features a head that swivels 360 degrees horizontally, allowing for enhanced maneuverability and precision. With a super high column and a headstock that moves up and down perpendicularly, it ensures stability and accuracy in every task. The precision micro feed and positive spindle lock enhance operational control, while the distinct automatic device for releasing tools makes operation effortless. The geared drive design minimizes noise, making it suitable for various workshop environments.
Specifications
| Feature | Z5032 | Z4040 | Z5045 |
|---|---|---|---|
| Max. drilling capacity | 32mm | 40mm | 45mm |
| Spindle taper | M. T. 3 or R8 | M. T. 4 | M. T. 4 |
| Spindle travel | 130mm | 130mm | 130mm |
| Step of spindle speed | 6 | 6 | 6 |
| Range of spindle speed 50Hz | 80-1250 r.p.m | 80-1250 r.p.m | 80-1250 r.p.m |
| 60Hz | 95-1500 r.p.m | 95-1500 r.p.m | 95-1500 r.p.m |
| Min. distance from spindle axis to column | 283mm | 283mm | 283mm |
| Max. distance from spindle nose to worktable | 725mm | 725mm | 725mm |
| Max. distance from spindle nose to stand table | 1125mm | 1125mm | 1125mm |
| Max. travel of headstock | 250mm | 250mm | 250mm |
| Swivel angle of headstock (horizontal/perpendicular) | 360° / ±90° | 360° / ±90° | 360° / ±90° |
| Max. travel of worktable bracket | 600mm | 600mm | 600mm |
| Worktable size availability | 380×300mm | 380×300mm | 380×300mm |
| Swivel angle of table horizontally | 360° | 360° | 360° |
| Table leaned | ±45° | ±45° | ±45° |
| Size of stand worktable availability | 417×416mm | 417×416mm | 417×416mm |
| Motor Power | 0.75KW (1HP) | 1.1KW (1.5HP) | 1.5KW (2HP) |
| Speed of motor | 1400 r.p.m | 1400 r.p.m | 1400 r.p.m |
| Net weight/Gross weight | 430kg/480kg | 432kg/482kg | 435kg/485kg |
| Packing size | 1850×750×1000mm | 1850×750×1000mm | 1850×750×1000mm |
| Loading amount | 18pcs/20″ container | 18pcs/20″ container | 18pcs/20″ container |
Additional Information
Standard accessories: Drill chuck 1-13mm, Removing Block, Drill chuck arbor
Optional accessories: 90mm parallel vise, 125mm parallel vise, milling cutter holder, drill chuck, mill chuck, coolant system, working lamp, auto-tapping electrical, boring bar, 150mm rotary table.
