USB Charger
Inquire NowDescription

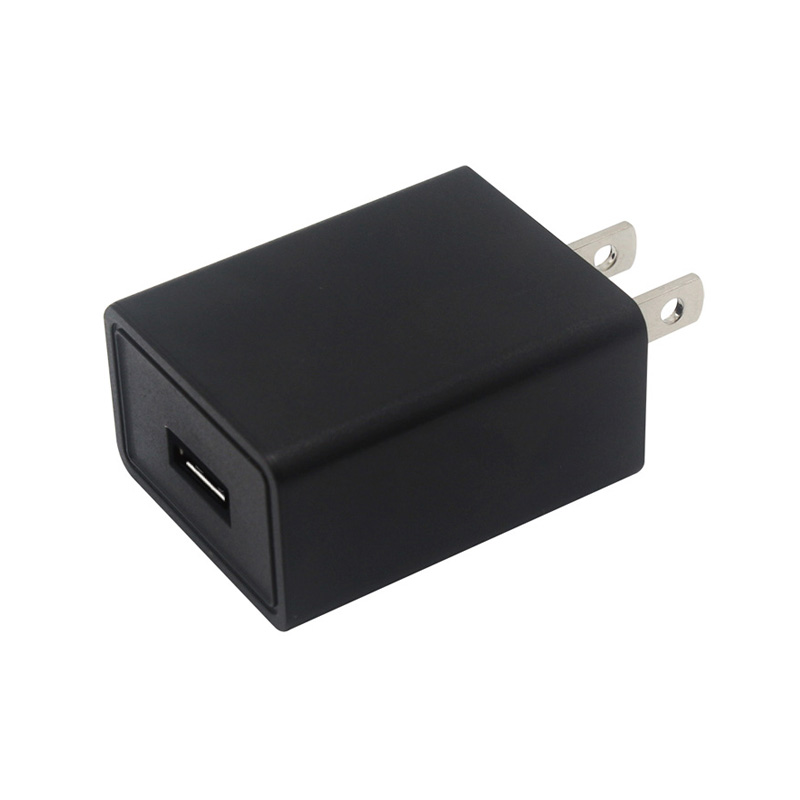

Introducing the USB Charger YS10-U, a reliable and efficient charging solution designed to meet your power needs. With a maximum output of 10.5W and a versatile input range of 100-240VAC, this compact charger is perfect for both home and travel use. Its smart design ensures compatibility with a variety of devices, allowing you to charge your gadgets quickly and safely. The charger features multiple safety protections including short circuit, over current, and over voltage safeguards, ensuring your devices remain protected during charging. With an energy efficiency rating of Level VI, you can be confident that you’re making an environmentally friendly choice.
Specifications
| Attribute | Details |
|---|---|
| Model: | YS10-U |
| Power: | 6W-10.5W max. |
| Input: | 100-240VAC 50/60Hz |
| Output Voltage: | 5V |
| Output Current: | 0.01-2.1A |
| Input Current: | 0.2A max. |
| Inrush Current: | 65Amps max. at 100VAC/60Hz, full load |
| Leakage Current: | 25mA Max. at 120VAC input |
| Energy Efficiency Level: | VI |
| No Load Power Consumption: | ＜0.1W |
| Protections: | Short Circuit / Over Current / Over Voltage |
| Working Temp: | -20°C to 50°C |
| Working Humidity: | 5%-90% RH non-condensing |
| Storage Temp., Humidity, and Altitude: | -40℃ to +70°C; 5% to 95% RH; up to 5000 meters AMSL |
| Input Plug: | US 2pin |
| Certificates and Approvals: | UL, CE, GS, EMC, FCC, RoHS, REACH |
| MTBF: | 100,000 hours minimum at full load at 25℃ ambient |
| Life: | 3 years alternative |
| Dimension: | 47*37*24mm |
| Weight: | 60g |
| Packing: | 100pcs/ctn 36*28.5*25CM |
Additional Information
This USB Charger is designed with user safety and efficiency in mind, making it an ideal choice for personal and professional use. Be sure to follow the manufacturer’s recommendations for use and care to ensure the longevity of your charger.
