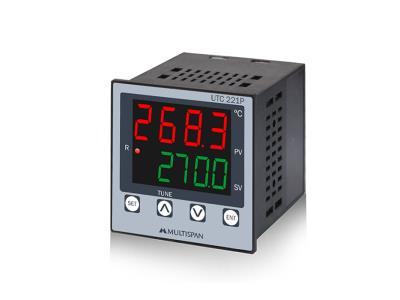

UTC-221P -Single Output PID Controller
Inquire NowDescription
The UTC-221P Single Output PID Controller is an advanced temperature control device designed to monitor and adjust the temperature of various environments. This versatile controller is perfect for industrial, commercial, and domestic applications, ensuring that heating, air conditioning, and other temperature-sensitive devices operate within a preset range. With its reliable performance, the UTC-221P helps maintain a comfortable and safe environment.
Features
- 3 + 3 Digit, 7 Segment LED Display
- Universal Input TC/RTD
- PID/ON-OFF Control
- Auto / Self Tuning
- Heating PID / Cooling (Relay || SSR)
Specifications
| Control Type | PID/On-Off |
|---|---|
| Display Type | 3 Digit/7 Segment |
| Accuracy | ±1% of FSD ± 1 Degree Celsius |
| Temperature Range | 55 Degree Celsius |
| Input Type | Thermocouple: (J,K) RTD PT-100 |
| Dimension | 96X96X52 mm (H X W X D) |
| Relay Type | 1C/O NO-C-NC |
| Rating | 5A@230VAC/28VDC Resistive Load |
| Output Signal | 12V DC, 30mA DC |
| Keys | SET, INC, DEC, ENT |
| Operating Temperature | 55 Degree Celsius |
| Relative Humidity | Up to 95% RH (Non-Condensing) |
| Power Consumption | 4VA |
| Protection Level | IP-65 |
| Panel Cutout | 92 X 92 mm (H X W) |
| ADC Resolution | 10 Bits |
| Sample Rate | 6 Sample/Sec |
| Sensor Burnout Current | 1.10 uA |
| RTD Excitation Current | 0.2mA |
| CMRR | 120db |
| Input Impedance | 1M |
| Proportional Band | 0000 to 999.9 |
| Integral Time | 0000 to 999.9 |
| Derivative Time | 0000 to 999.9 |
| Relay | 1 Nos. |
| Sensor | J/K/PT-100 2W/3W |
| Output Signal | 12V DC, 30mA DC |
| Model Number | UTC 221P |
| Brand | Multispan |
| Minimum Order Quantity | 10 |
Dimension
