V Shape Mixer
Inquire NowDescription

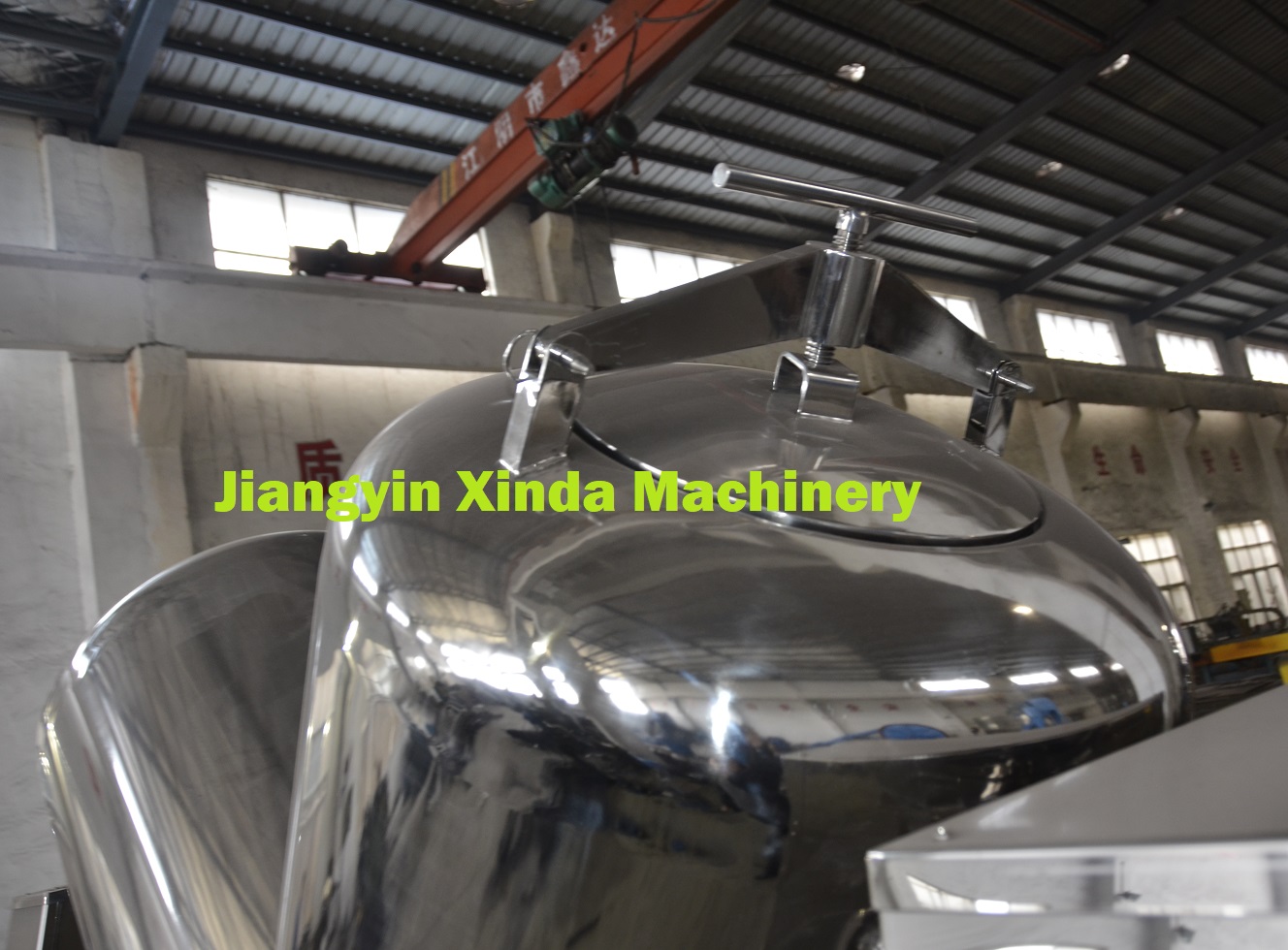

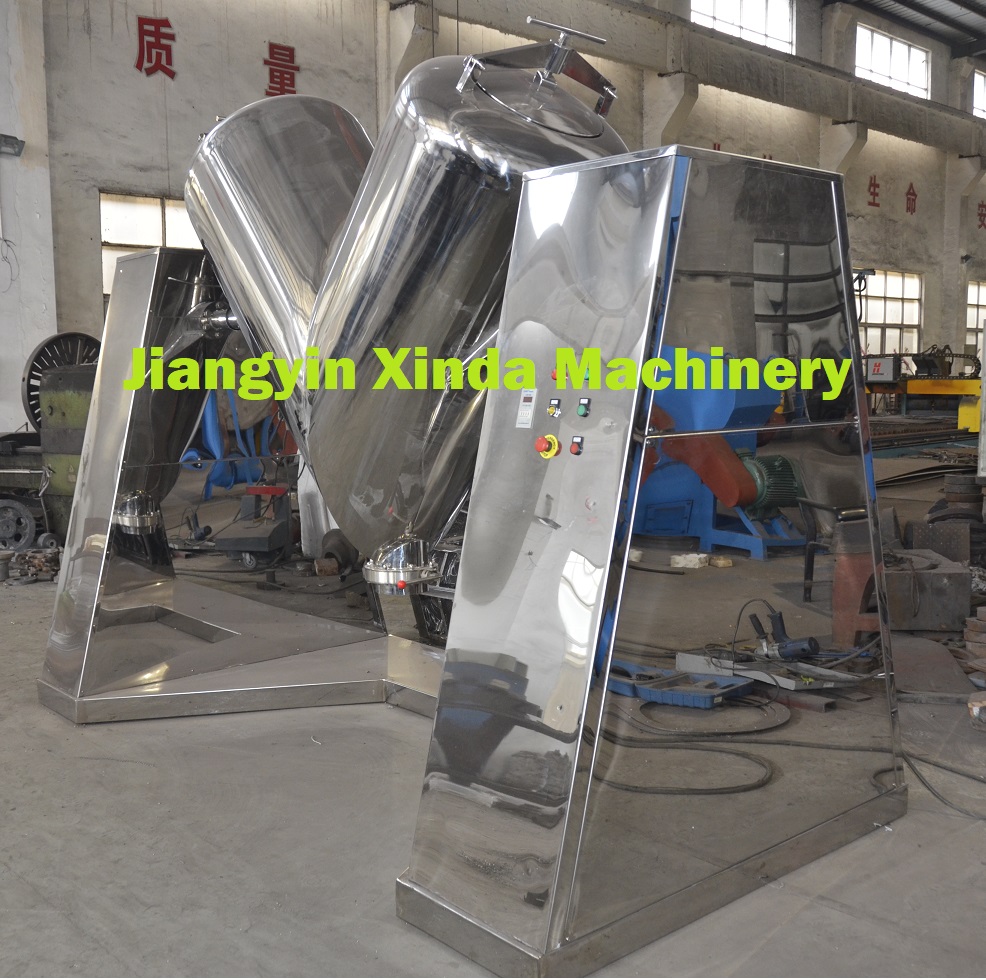

The V Shape Mixer is a high-efficiency mixing solution, specifically designed for the pharmaceutical and related industries. This innovative mixer features a unique structure of the mixing cylinder that ensures high mixing efficiency, eliminating dead corners for an even blend. Crafted from durable stainless steel, both the interior and exterior surfaces are polished to perfection, providing not only longevity but also ease of cleaning.
Specifications
| Model | Capacity (kg/h) | Charge-in Time (min) | Mixing Time (min) | Total Volume (m³) | Cylinder Speed (r/min) | Motor Power (kw) | Weight (kg) | Rotation Diameter (mm) | Overall Size (L×W×H) (mm) |
|---|---|---|---|---|---|---|---|---|---|
| GHJ-180 | 40 | 4-6 | 4-8 | 0.18 | 15 | 1.1 | 280 | 1400 | 1780×840×1750 |
| GHJ-300 | 80 | 4-6 | 6-10 | 0.3 | 15 | 1.5 | 350 | 1600 | 1880×1000×1850 |
| GHJ-500 | 100 | 4-6 | 6-10 | 0.5 | 12 | 2.2 | 550 | 1900 | 2500×1220×2420 |
| GHJ-1000 | 200 | 6-9 | 6-10 | 1.0 | 12 | 4 | 950 | 2400 | 2975×1600×3000 |
| GHJ-1500 | 300 | 6-10 | 6-10 | 1.5 | 12 | 5.5 | 1100 | 2520 | 3190×1600×3100 |
| GHJ-2000 | 400 | 12-18 | 6-10 | 2.0 | 10 | 7.5 | 1600 | 2900 | 3800×1900×3310 |
| GHJ-2500 | 500 | 12-18 | 6-10 | 2.5 | 8 | 7.5 | 2040 | 3100 | 3990×1990×3790 |
| GHJ-4000 | 800 | 12-18 | 6-10 | 4.0 | 6 | 11 | 2800 | 3800 | 4945×2200×4230 |
