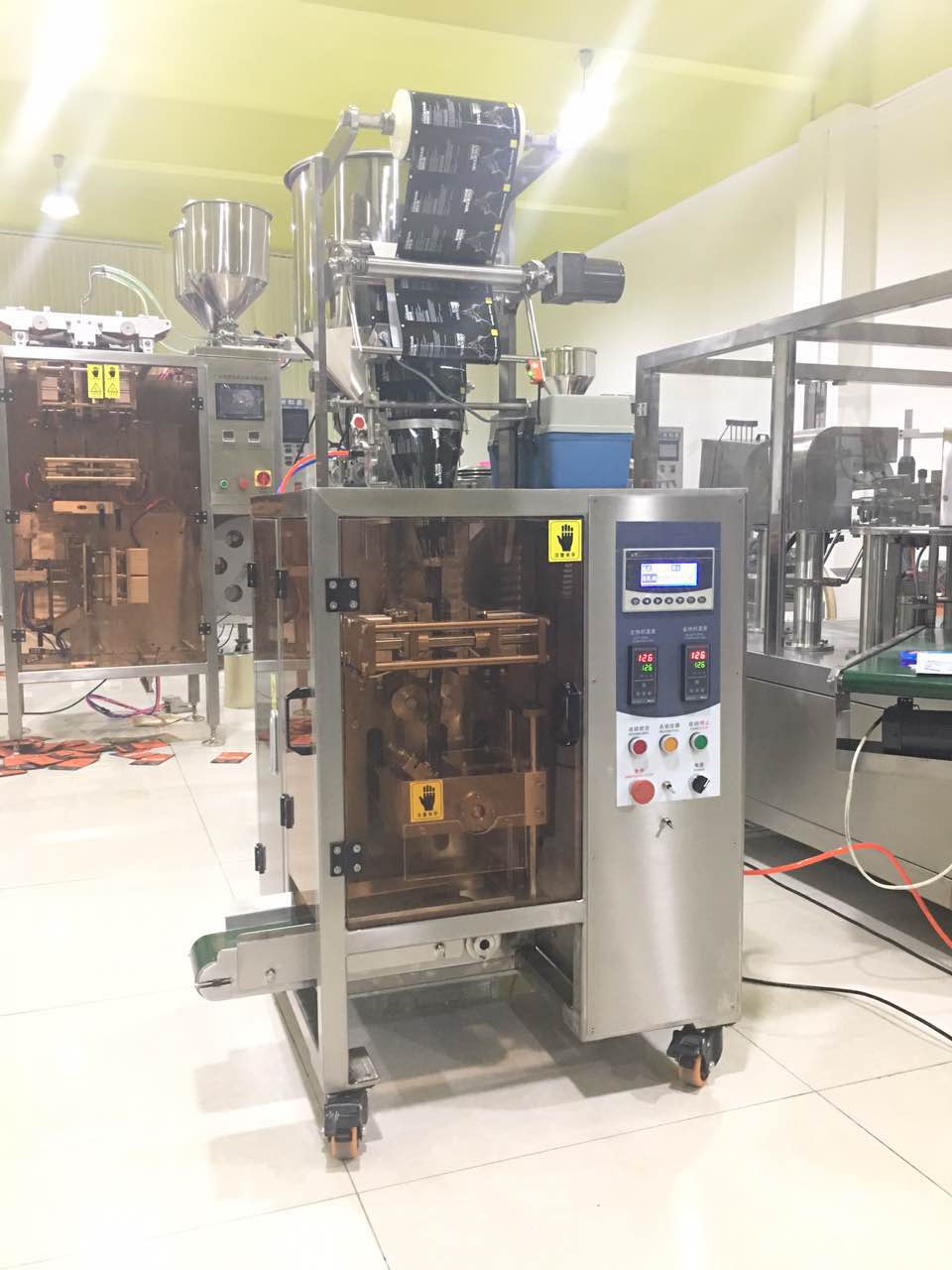

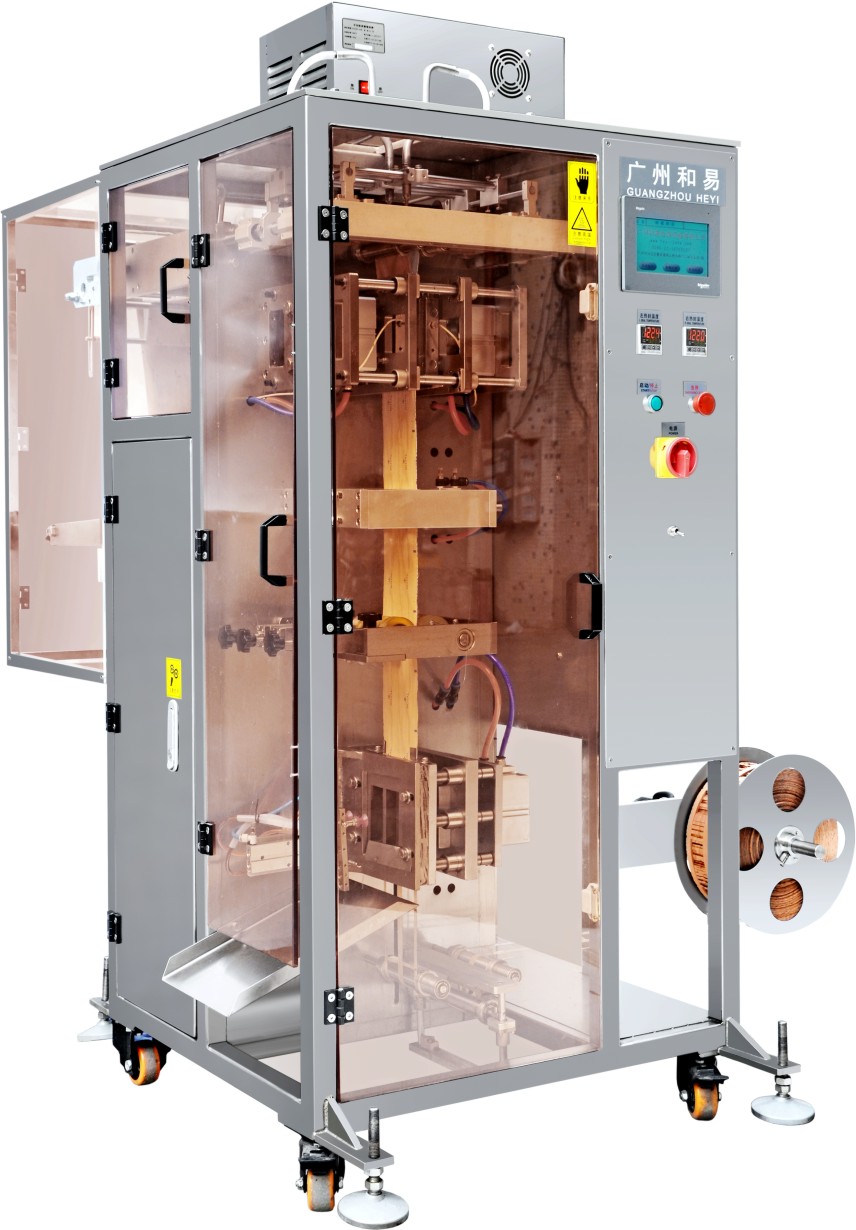

Vertical Irregular Shape Sachet Packaging Machine
Inquire NowDescription
The Vertical Irregular Shape Sachet Packaging Machine is an innovative solution designed for the automatic packaging of various liquid and paste products across multiple industries including cosmetics, food, healthcare, and pharmaceuticals. This advanced machine efficiently packages items such as cleansers, skin creams, sauces, energy drinks, and more into uniquely shaped sachets, ensuring versatility and quality in every package.
Equipped with high-end components such as a Siemens PLC controller and a user-friendly color touch screen, this machine simplifies operation and minimizes wear on parts. The full pneumatic control system enhances reliability, while the SUS304 material construction meets stringent GMP production standards. Safety is prioritized with all heat-generating and moving parts concealed behind protective covers, ensuring compliance with electrical standards.
Specifications
| Feature | Details |
|---|---|
| Model Number | HY-IY320 |
| Filling Range | 1-20ml / 10-50ml |
| Sachet Size | W: 30-130mm, L: 30-170mm |
| Max. Film Width | 320mm |
| Sachet Type | Irregular shape sachet |
| Filling Method | Pneumatic pump / Magnetic pump |
| Capacity | 25-40 ppm |
| Power Voltage and Consumption | 220V 50-60Hz / 4.5KW |
| Air Pressure and Consumption | 0.4m³/min, 0.6-0.8Mpa |
| Dimension (L*W*H) | 920*1291*2173mm |
| Weight | 450KG |
| Packaging Film Materials | PE laminated film, such as PET/AL/PE, PET/PE, Nylon/PE (Thickness: 0.08~0.12mm, 3 or 4 layers) |
| Inner Core Diameter | 75mm |
| Outer Roll Diameter | 300mm-500mm |
Additional Information
This machine is customizable to operate as a single or dual output system, making it suitable for various production demands. The die cutting features ensure precise cuts without burrs, and the durability of the punching die, crafted with HKS-9 material through six processing techniques, guarantees long-lasting performance. Designed for ease of use, one operator can effectively supervise multiple units, boosting productivity in any packaging environment.
