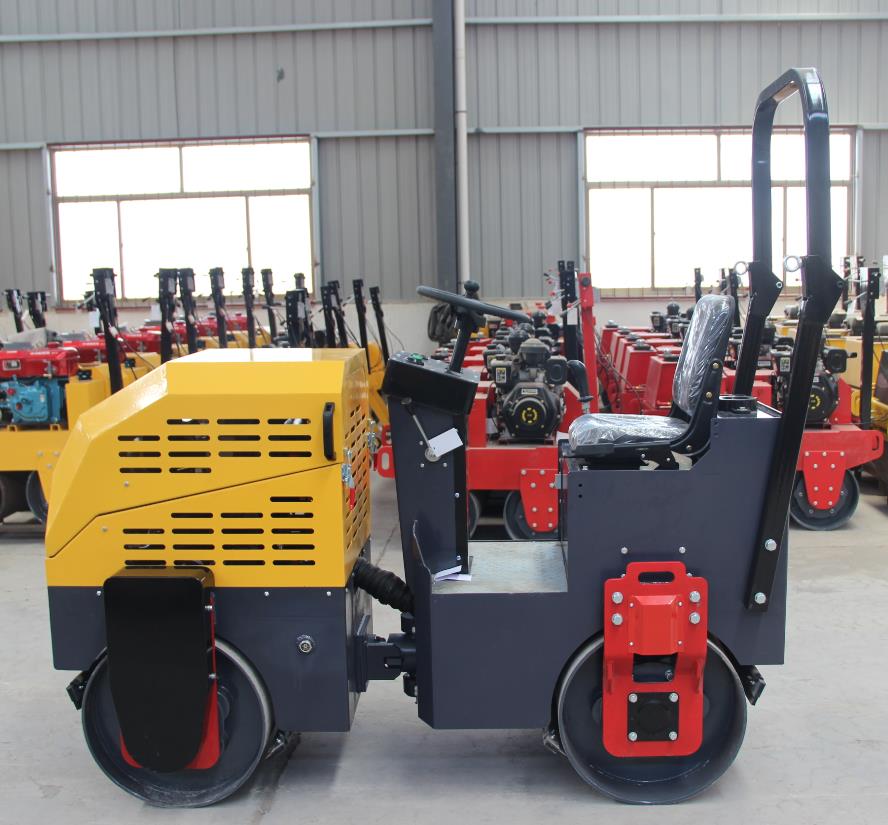

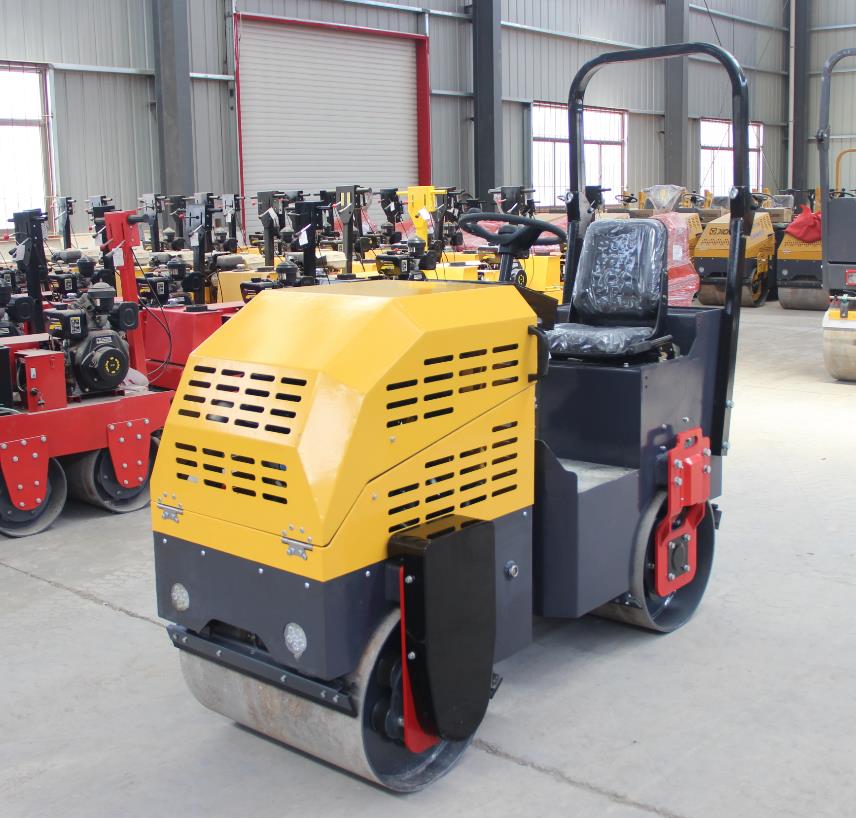

vibrating double drum road roller 1Ton hydraulic compactor
Inquire NowDescription
The Vibrating Double Drum Road Roller is a powerful 1-ton hydraulic compactor designed for efficient and effective road construction and maintenance. Engineered with a robust gasoline or diesel engine, this roller ensures top-notch performance with brand-name quality assurance. Its articulated front and rear frame connection allows for superior maneuverability, while the front and rear two-wheel drive walking feature guarantees excellent traction on various surfaces. The hydraulic power steering system enhances control, making it easy to operate. With a remarkable compaction effect, this machine is the ideal choice for professionals seeking reliability and efficiency.
Specifications
| Attribute | Details | Attribute | Details |
|---|---|---|---|
| Speed | 0-8 KM/H | Model | Changfa CF186 |
| Turning Radius | 2000 mm | Type | Diesel engine, air-cooled four-stroke |
| Gradeability | 30% | Power | 9 HP / 3600 RPM |
| Before/After Static Line Load | 56 N/cm | Fuel Tank Capacity | 5.5 L |
| Nominal Amplitude | 0.5 mm | Fuel Consumption | 300/KW.H |
| Vibration Frequency | 75 HZ | Steel Wheel Width | 700 mm |
| Exciting Force | 30 KN | Steel Wheel Diameter | 530 mm |
| Drive Method | Hydraulic drive, stepless speed change | Total Length | 2100 mm |
| Vibration Method | One-button vibration, electromagnetic clutch | Total Width | 860 mm |
| Steering Method | Hydraulic steering | Total Height | 1600 mm |
| Sprinkling Method | Electronically controlled pressure water spray | Package Dimensions | 2290 x 950 x 1650 mm |
| Working Weight | 1040 kg |
Additional Information
For optimal performance, ensure regular maintenance of the engine and hydraulic system. Always follow safety protocols during operation to prevent accidents and equipment damage.
