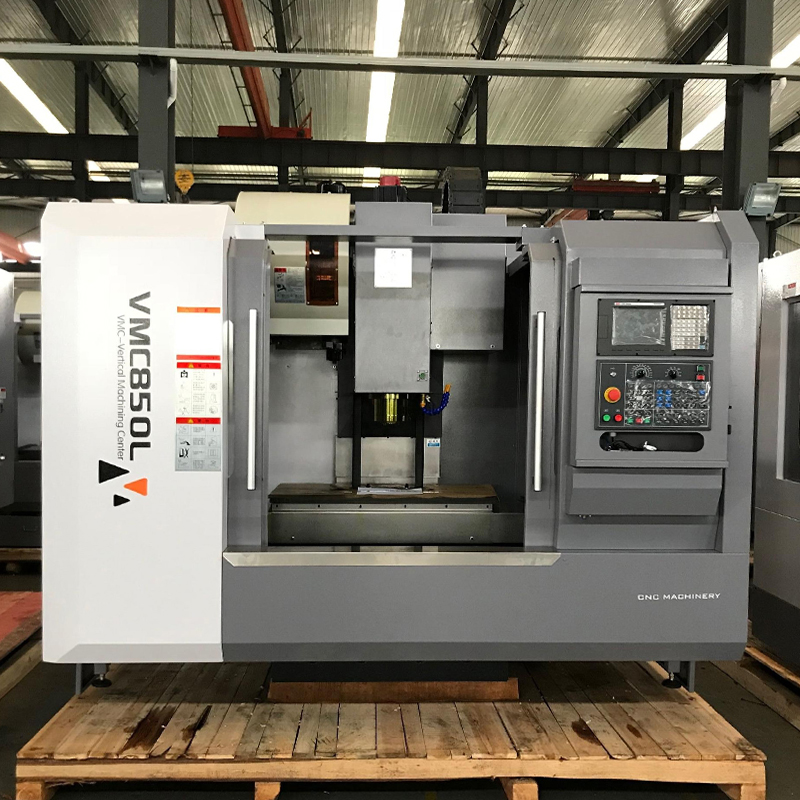

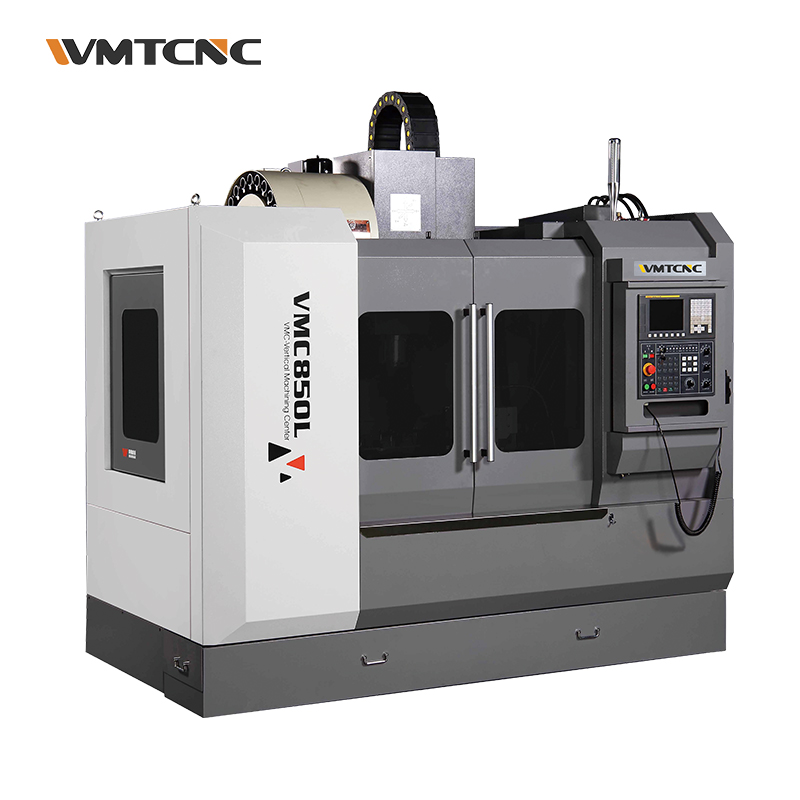

VMC850L CNC milling machine center
Inquire NowDescription
The VMC850L CNC milling machine center is engineered for precision and durability, featuring major components crafted from the finest gray cast iron known for its exceptional shock resistance. This machine has undergone a dual aging treatment to eliminate internal residual stresses, ensuring robust rigidity for both heavy and intermittent cutting applications. Designed using advanced CAD software, the VMC850L boasts an optimal structure that enhances its intensity, rigidity, and thermal stability. The meticulously polished joint faces guarantee effective contact areas, making this machine an essential tool for high-performance machining tasks.
Specifications
| Specification | VMC850L |
|---|---|
| Worktable size (LxW) | 1000x500mm |
| T-slot (NxWx D) | 5x18x100mm |
| X/Y/Z axis travel | 850/500/600mm |
| Distance from spindle center to column | 572mm |
| Distance from spindle nose to worktable surface | 120-720mm |
| Spindle taper | BT40 |
| Spindle power | 7.5/11kw |
| Max. spindle speed | 8000rpm |
| Max. feed speed | 12m/min |
| Rapid feed speed (X/Y/Z) | 32/32/30m/min |
| X/Y/Z axis ball screw | 4016 |
| Tool magazine capacity | 24T |
| Max. length of tool | 300mm |
| Tool change time (T-T) | 2.5s |
| Positioning accuracy (X/Y/Z) | ±0.010mm |
| Re-positioning accuracy (X/Y/Z) | ±0.005mm |
| LxWxH | 2540x2320x2780mm |
| Max. loading of worktable | 500kgs |
| Machine weight | 5200kgs |
Additional Information
- Key components designed with CAD software for enhanced performance.
- Manually polished joint faces for superior contact area and stability.
