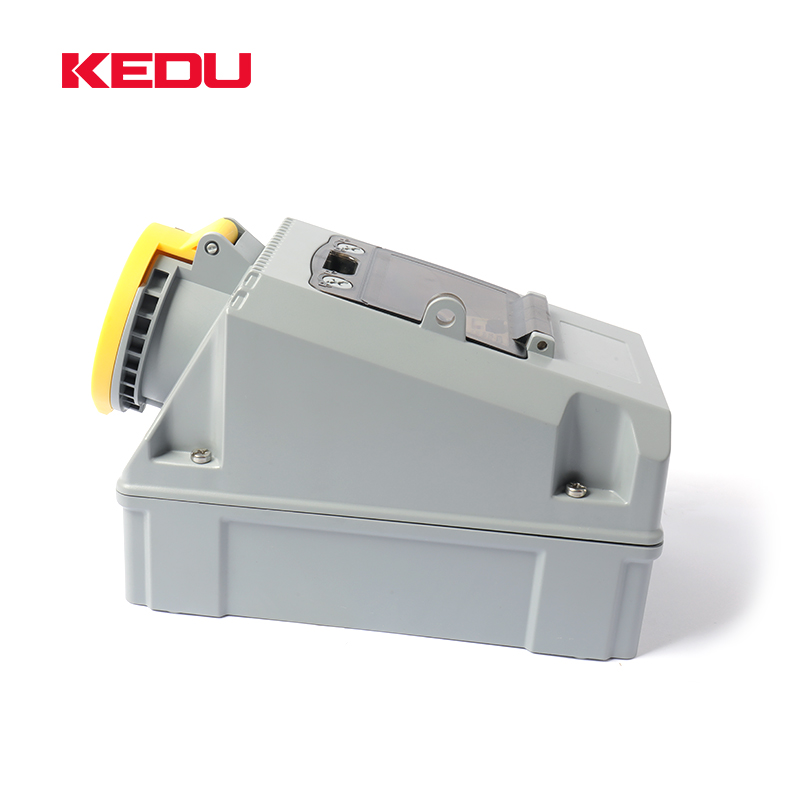

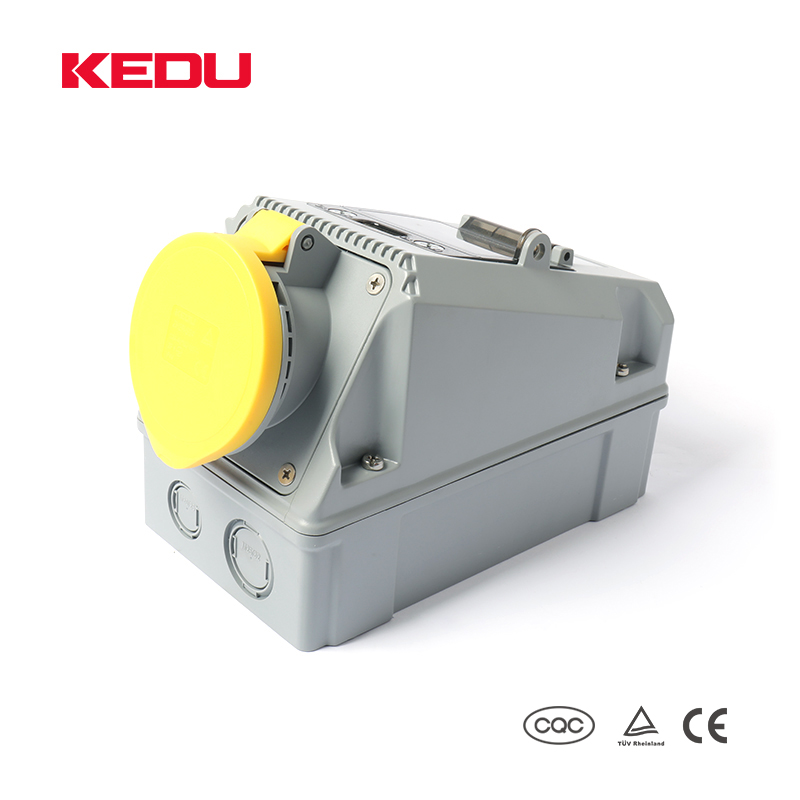

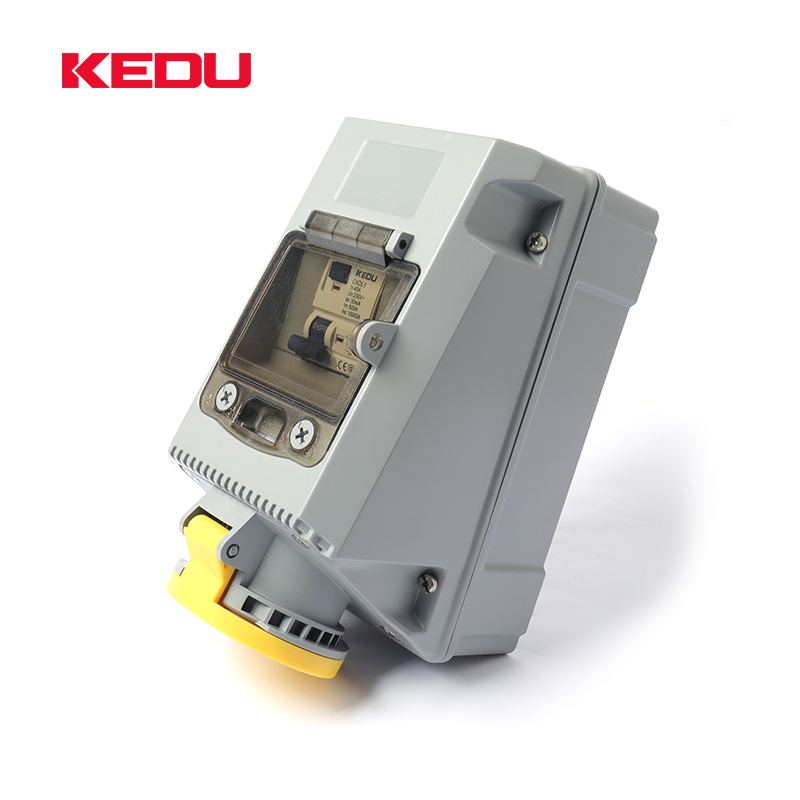

Wall Mounted Socket Outlets IP44
Inquire NowDescription
The Wall Mounted Socket Outlets are designed for durability and reliability in various environments. With an IP44 rating, these outlets are protected against dust and water splashes, making them ideal for both indoor and outdoor use. They feature IK08 shock resistance, ensuring they can withstand impact and are safe for high-traffic areas.
Pre-wired with a 30mA RCCB, these outlets provide enhanced protection against electrical faults. Available in both 16A and 32A options, they cater to a range of power needs. The versatile cable entry options (M25xM32 + M20xM25) allow for easy installation, accommodating cable areas from 1 to 6 mm². Designed in compliance with EN 60309-1:1999+A1+A2 and EN 60309-2:1999+A1+A2 standards, these socket outlets guarantee safety and efficiency.
Specifications
| Attribute | Details |
|---|---|
| Protection Rating | IP44 |
| Impact Resistance | IK08 |
| Pre-wired | 30mA RCCB |
| Current Options | 16A / 32A |
| Cable Entry | M25xM32 + M20xM25 |
| Cable Area | 1-6mm² |
| Standards Compliance | EN 60309-1:1999+A1+A2, EN 60309-2:1999+A1+A2 |
Additional Information
For optimal performance and safety, ensure that the installation is carried out by a qualified electrician. Regularly inspect the socket outlets for any signs of wear or damage.
