Description
The Wall Mounted Type Hybrid Solar Air Conditioner is a cutting-edge solution designed to provide efficient cooling and heating while significantly reducing electricity consumption. By harnessing solar energy, this innovative air conditioner achieves an impressive 30%-50% savings on electricity. Operating effectively in temperatures ranging from -5 to 53 degrees Celsius, it is perfect for a variety of climates. Featuring a CE certification, this system is reliable and built to last, utilizing world-renowned brand compressors known for their high efficiency and longevity. The digital LED display and user-friendly digital e-Touch interface make operation seamless, even for the elderly and children. With an advanced multi-fold heat exchanger and anti-dust air filter, this air conditioner ensures a fresher environment while maximizing cooling capacity.
Specifications
| Feature | Model No. | TKF(R)-26GW | TKF(R)-35GW | TKF(R)-60GW | TKF(R)-72GW |
|---|---|---|---|---|---|
| Power Supply | 220-240VAC, 1PH, 50Hz | ||||
| Capacity | Cooling Btu/h | 9000 | 12000 | 20000 | 24000 |
| Cooling W | 2600 | 3500 | 6000 | 7200 | |
| Heating Btu/h | 10000 | 13000 | 22000 | 27000 | |
| Heating W | 2900 | 3800 | 6600 | 7900 | |
| Noise Level Indoor dB(A) | ≤40 | ≤42 | ≤46 | ≤50 | |
| Air Circulation m³/h | 450 | 550 | 850 | 1050 | |
| Suitable Area m² | 11~17 | 15~23 | 25~42 | 30~48 | |
| EER W/W | 3.64 | 3.89 | 3.88 | 3.82 | |
| Power Input Cooling W | 650~770 | 800~1025 | 1350~1560 | 1700~1900 | |
| Indoor Unit Net mm | 785*285*210 | 785*285*210 | 985*320*215 | 985*325*230 | |
| Outdoor Unit Net mm | 790*260*540 | 790*260*540 | 850*300*755 | 940*300*755 | |
| Weight Indoor Unit kg | 10/11 | 10.5/13 | 17/18.5 | 21/23 | |
| Weight Outdoor Unit kg | 31/34 | 38/40 | 50/52 | 55/58 | |
Additional Information

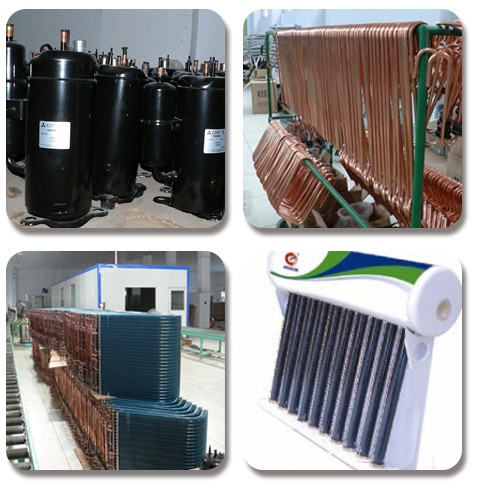

This air conditioner features a vacuum tube solar collector system, utilizing a diameter of 47mm with varying lengths and quantities depending on the model. The system is designed for easy installation and maintenance, ensuring longevity and reliability. It also includes intelligent defrosting capabilities for optimal performance in colder climates.
