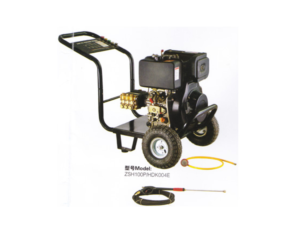

Water pump set ZSH100P
Inquire Now#### **Description**
The Water Pump Set ZSH100P is a robust and efficient solution designed for various pumping needs. Featuring a powerful diesel engine model ZC186FA/ZC186FAE, this pump set is engineered for high performance with a rated power output of 6.20 kW. It boasts an impressive suction time of just 160 seconds over a distance of 5 meters, making it ideal for quick and effective water transfer. The ZSH100P is constructed with durability in mind, ensuring reliable operation in demanding conditions.
#### **Specifications**
| Model | ZSH100P |
|---|---|
| Suction Time (s/5m) | 160 |
| Starting Method | Handle/Electrical |
| Net Weight (kg) | 65 |
| Overall Dimension (L*W*H) (mm) | 635*500*570 |
| Diesel Engine Model | ZC186FA/ZC186FAE |
| Rated Power (kW) | 6.20 |
| Rated RPM | 3600 |
| Max Flow (LPH) | 96 |
| Max Lift (m) | 22 |
| Suction Height (m) | 8 |
| Inlet & Outlet Diameter (mm) | 100 (4”) |
#### **Additional Information**
For optimal performance, ensure the pump is maintained regularly and check the oil levels before operation.
