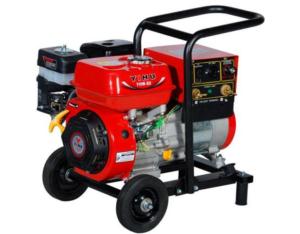

WELDING GENERATOR – YHW-80
Inquire NowDescription
The YHW-80 Welding Generator is a powerful and efficient solution designed for both professional welders and DIY enthusiasts. This generator welder combines robust performance with user-friendly features, making it ideal for a range of welding tasks. It operates with a rated power of 0.8 kW and can reach a maximum power of 1.0 kW, ensuring that you have the capability to handle various welding projects with ease. With a rated voltage of 220V and a frequency of 50/60 Hz, this machine provides reliable power for your welding needs.
Designed for versatility, the YHW-80 allows for a current output range of 50 to 80 A, accommodating welding rods between 2.2 mm to 3.2 mm. The generator is powered by the YH170F engine, featuring a bore and stroke of 70 x 54 mm, and an impressive compression ratio of 8.5:1. The machine is equipped with a recoil start system for easy operation. Whether you’re working on metal fabrication, repairs, or construction, the YHW-80 Welding Generator delivers consistent performance and reliability.
Specifications
| Attribute | Details |
|---|---|
| Model | YHW-80 |
| Rated Frequency (Hz) | 50/60 |
| Rated Voltage (V) | 220 |
| Rated Power (kW) | 0.8 |
| Max Power (kW) | 1.0 |
| Power Factor | 1.0 |
| No-loading Voltage (V) | 62 |
| Rated Voltage DC (V) | 26 |
| Range of Output Current (A) | 50～80 |
| Welding Rod (mm) | 2.2～3.2 |
| Engine Model | YH170F |
| Bore X Stroke (mm) | 70 x 54 |
| Compression Ratio | 8.5:1 |
| Starting System | Recoil Start |
| Oil Capacity (L) | 0.6 |
| Fuel Capacity (L) | 3.6 |
| N.W/G.W (Kg) | 40/42 |
| Dimension (L x W x H) mm | 560 x 490 x 490 |
| 20FT (set) | 176 |
