Description

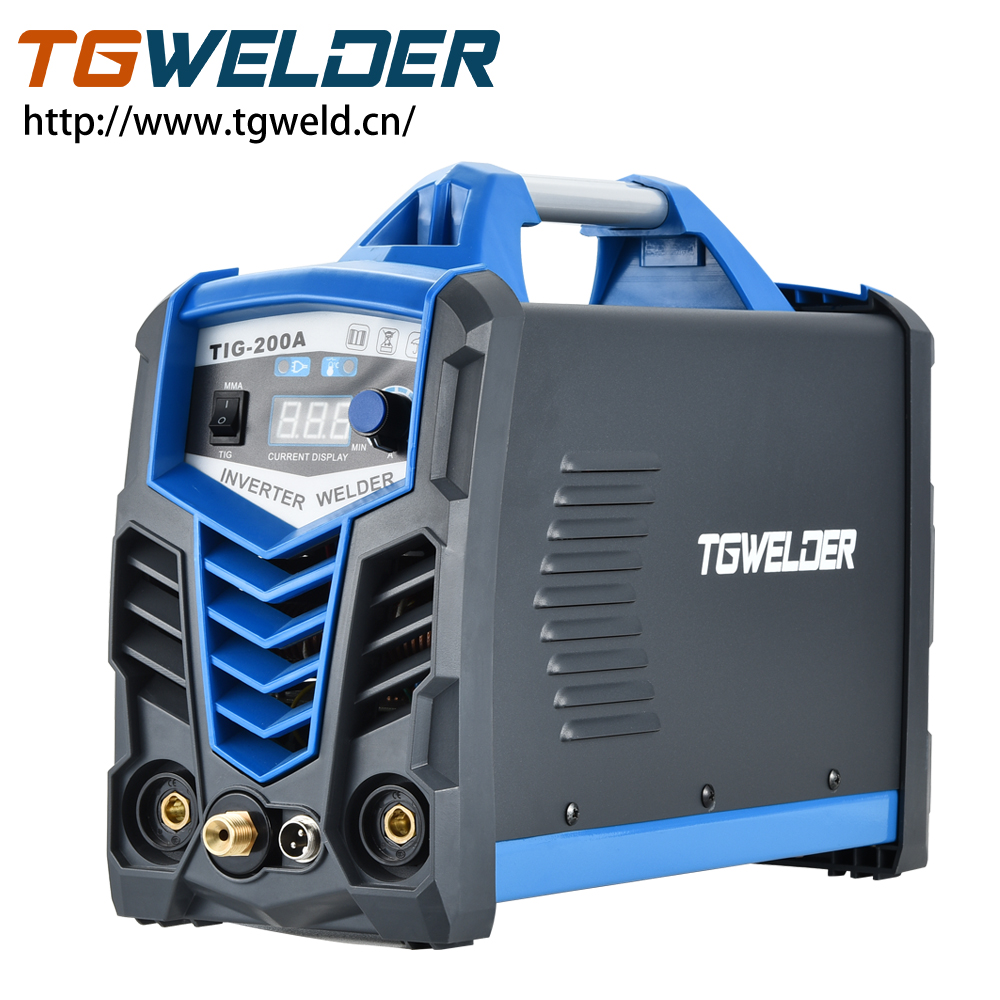

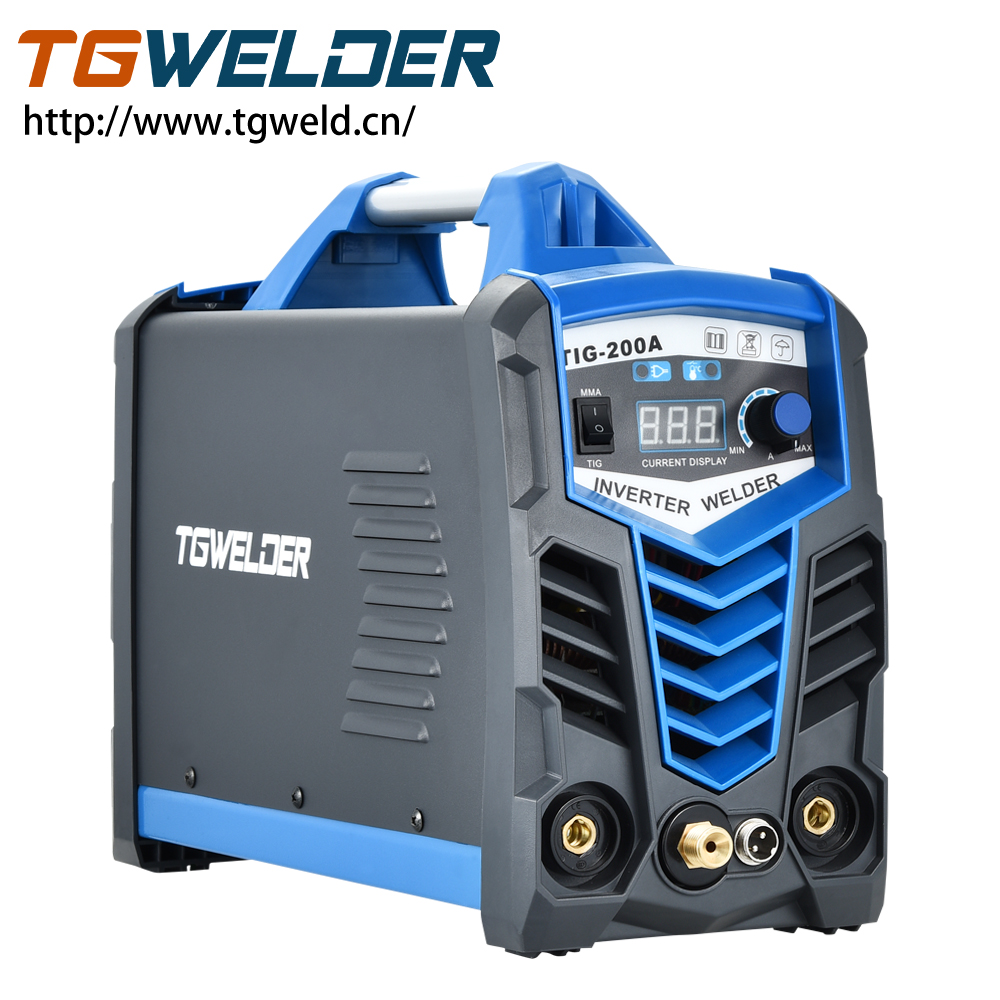

The TIG-200A Welding Machine is a powerful and efficient tool designed for precision welding tasks. With an input voltage of 220V and a frequency of 50/60Hz, it operates seamlessly for a variety of welding applications. This machine delivers a maximum no-load voltage of 60V and features a current range of 10-200A, making it suitable for both light and heavy-duty welding. Its rated duty cycle of 60% ensures that you can work continuously without overheating, while the insulation class H provides excellent thermal protection. Compact and lightweight, weighing only 5.8 kg, the TIG-200A is ideal for both professional and hobbyist welders looking for reliability and performance.

Specifications

Attribute Details
Model TIG-200A
Input Voltage (V) 220V
Frequency (Hz) 50/60
Real Current (A) 160
Rated Input Capacity (KVA) 4
Rated Work Voltage (V) 16.4/26.4
Max No-load Voltage (V) 60
Current Range (A) 10-200
Rated Duty Cycle (%) 60
Insulation Class H
Protection IP21S
Dimension (CM) 39 x 17 x 31
Net Weight (KG) 5.8
