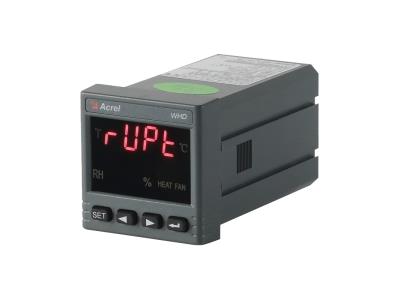

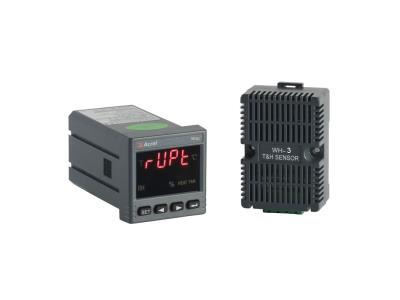

WHD48-11 Temperature & Humidity Controller
Inquire NowDescription
The WHD48-11 Temperature & Humidity Controller is a sophisticated device designed to monitor and manage temperature and humidity levels in various environments. Equipped with digital temperature and humidity sensors, this controller displays real-time values on its user-friendly panel. It features contacts for fan and heater control, along with an alarm system for detecting issues with the heater or sensor. With the option for an RS485 port or alarm output, it facilitates long-distance data transmission and control.
This advanced controller is ideal for protecting high-voltage switchgear, terminal boxes, ring network panels, and box transformer substations from the risks of excessive temperature and humidity. Its robust anti-jamming capabilities and reliability make it a dependable choice for critical applications. Users appreciate the programmable alarm points, display settings, and communication features, all easily adjustable via the control keys.
Specifications
| Attribute | Details |
|---|---|
| Temperature Accuracy | ±1℃ |
| Humidity Accuracy | ±5%RH |
| Auxiliary Power Supply | AC 85-265V, DC 100-350V |
| Basic Power Consumption | ≤0.8W |
| Relay Power Consumption (each channel) | ≤0.7W |
Additional Information
This controller is suitable for panel mounting and is designed to measure and control conditions specifically in air, making it perfect for environments like computer rooms, warehouses, and electrical distribution rooms.
