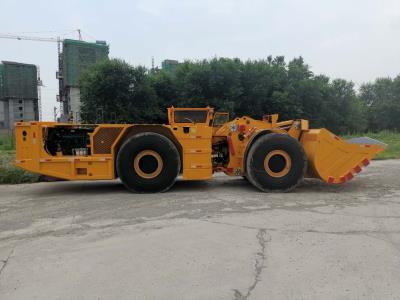

WJ-6 Underground Wheel Loader ( 14 Metric Ton)
Inquire NowThe WJ-6 Underground Wheel Loader is a robust and powerful diesel-driven loader designed for demanding underground applications. With a bucket volume of 6 m³ and a loading capacity of 14 metric tons, this machine excels in efficiency and performance. It boasts a maximum offload height of 2445 mm, making it ideal for tunnel sections with dimensions of ≥3.5m × 3.5m. Renowned for its reliability, the WJ-6 features main components from famous brands, ensuring exceptional durability and service even during challenging times, such as pandemics. Its advanced design allows for quick delivery times of 4 to 10 months to site, along with 24/7 service and parts availability.
| Item | Measure Unit | WJ-6 |
|---|---|---|
| Shovel Capacity | m3 | 6 |
| Rated Loading Capacity | kg | 14,000 |
| Max. Shovel Force | kN | 350 |
| Max. Dumping Height | mm | 2445 |
| Traveling Speed (Gear I) | km/h | 3.9 |
| Traveling Speed (Gear II) | km/h | 7 |
| Traveling Speed (Gear III) | km/h | 12.3 |
| Traveling Speed (Gear IV) | km/h | 22 |
| Machine Weight | kg | 39,500 |
| Turning Radius (Inner) | mm | 3,520 |
| Turning Radius (Outer) | mm | 7,100 |
| Length | mm | 10,600 |
| Width | mm | 2,866 |
| Height | mm | 2,500 |
The WJ-6 Underground Wheel Loader comes with various options to enhance its functionality, including:
- Sealed cabin with heater and air-conditioner
- Automatic central lubrication
- Automatic & Manual fire suppression system
- Radio & Video system
- Travel Aid system
- Remote control system
Clients are encouraged to confirm any preferences for main components.
