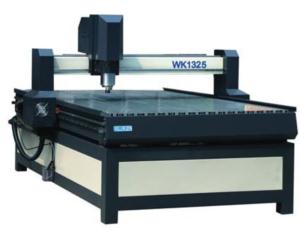

WK1325 CNC router
Inquire NowDescription
The WK1325 CNC Router is a high-performance machining tool designed for precision cutting and engraving tasks. Equipped with a spacious working area of 1,300 x 2,500 mm on the X and Y axes, and a Z axis working area of less than 200 mm, this router is ideal for a variety of materials. Its impressive maximum speed of 32,000 mm/min and a working speed of up to 10,000 mm/min ensure efficiency in production. The device boasts a working delicacy of 0.02 mm, making it suitable for detailed projects.
Built with a robust table size of 1,480 x 3,000 mm, the WK1325 is designed for heavy-duty use, while its spindle speed of 24,000 rpm allows for versatile applications. This CNC router is compatible with popular software such as Type3, Wentai, and Artcam, providing flexibility in operation. With a weight of 1000 kg, it offers stability during high-speed operations, and its water-cooled motor ensures optimal performance. The WK1325 CNC Router is certified with CE, ensuring compliance with international safety standards.
Specifications
| Specification | Details |
|---|---|
| X Y Axis Working Area | 1,300 x 2,500 mm |
| Z Axis Working Area | <200 mm |
| Table Size | 1,480 x 3,000 mm |
| Max Speed | 0 – 32,000 mm/min |
| Max Working Speed | 10,000 mm/min |
| Working Delicacy | 0.02 mm |
| Reposition Accuracy | 0.05 mm |
| Max Feeding Height | 110 mm |
| Engraving Command | G code, u00, mmg, plt |
| Software Compatibility | Type3, Wentai, Artcam |
| Max Power Consumption | 5.5 kW |
| Spindle | 3.3 kW variable speed, water cooled motor 4.5 kW |
| Spindle Speed | 24,000 rpm |
| Work Type | Stepper |
| Weight | 1000 kg |
| Working Voltage | AC 380V, 50Hz |
| Memory | 32M |
| Manner of Receiving Data | USB |
| Running Circumstance Temperature | 0 – 45°C |
| Relative Humidity | 30% – 75% |
| Work Table | By suction |
