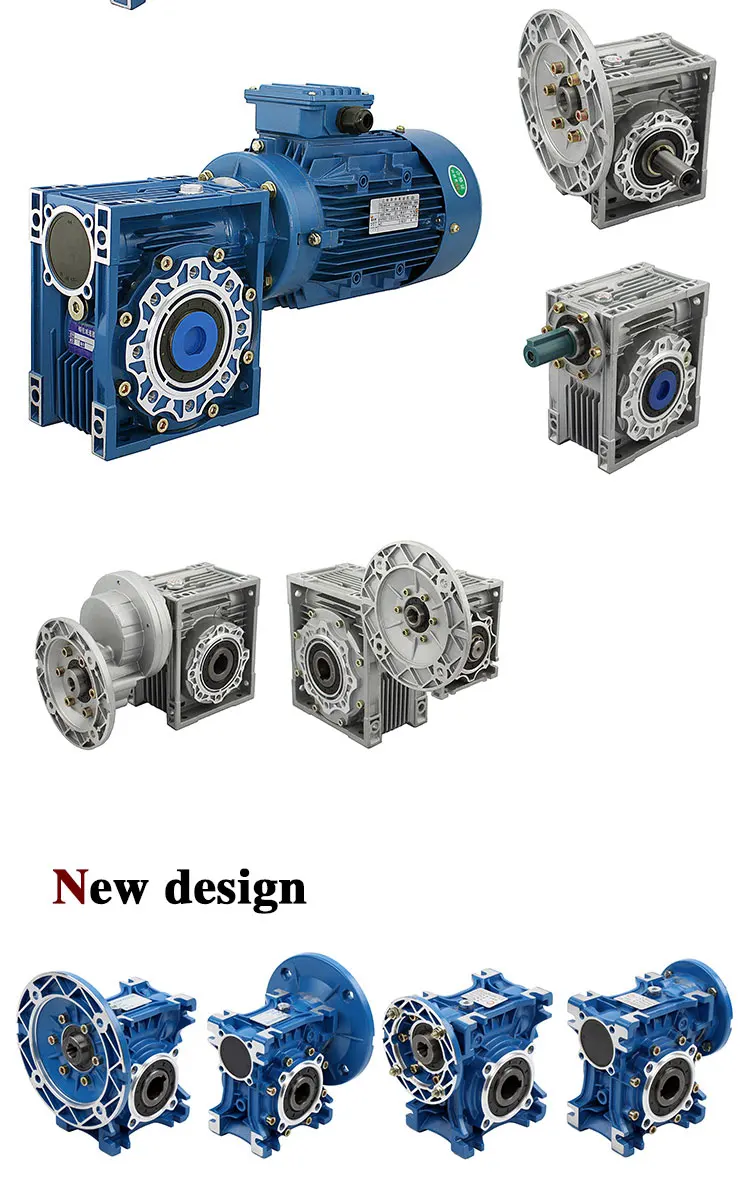

Worm gear speed reducer rv030 with 30rpm 60rpm 80rpm Aluminum Worm reducer
Inquire NowDescription

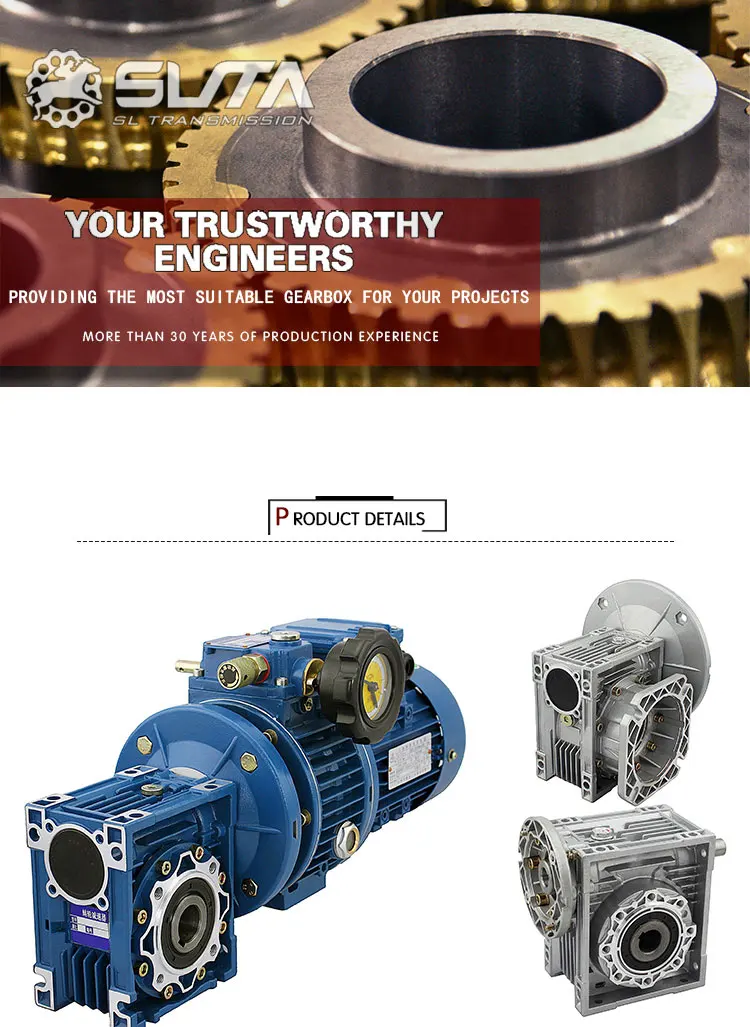

The Worm Gear Speed Reducer RV030 is a high-performance gearbox engineered for various industrial applications. Available with output speeds of 30rpm, 60rpm, and 80rpm, this aluminum worm reducer provides optimal efficiency and durability. Designed with a compact and elegant aluminum housing, the RV030 series is both lightweight and robust, making it an ideal choice for machinery in sectors such as chemicals, pharmaceuticals, and food processing.
This worm gearbox features advanced engineering that ensures seamless operation, low noise levels, and a high carrying capacity. Its flexibility and ease of installation make it a preferred choice for engineers and technicians. The RV030 excels in applications requiring efficient speed reduction and torque output, adapting to a variety of motor power specifications ranging from 0.09 to 15 kW.
Specifications
| Attribute | Details |
|---|---|
| Housing Material | ZL108 Al-alloy or HT200 cast iron |

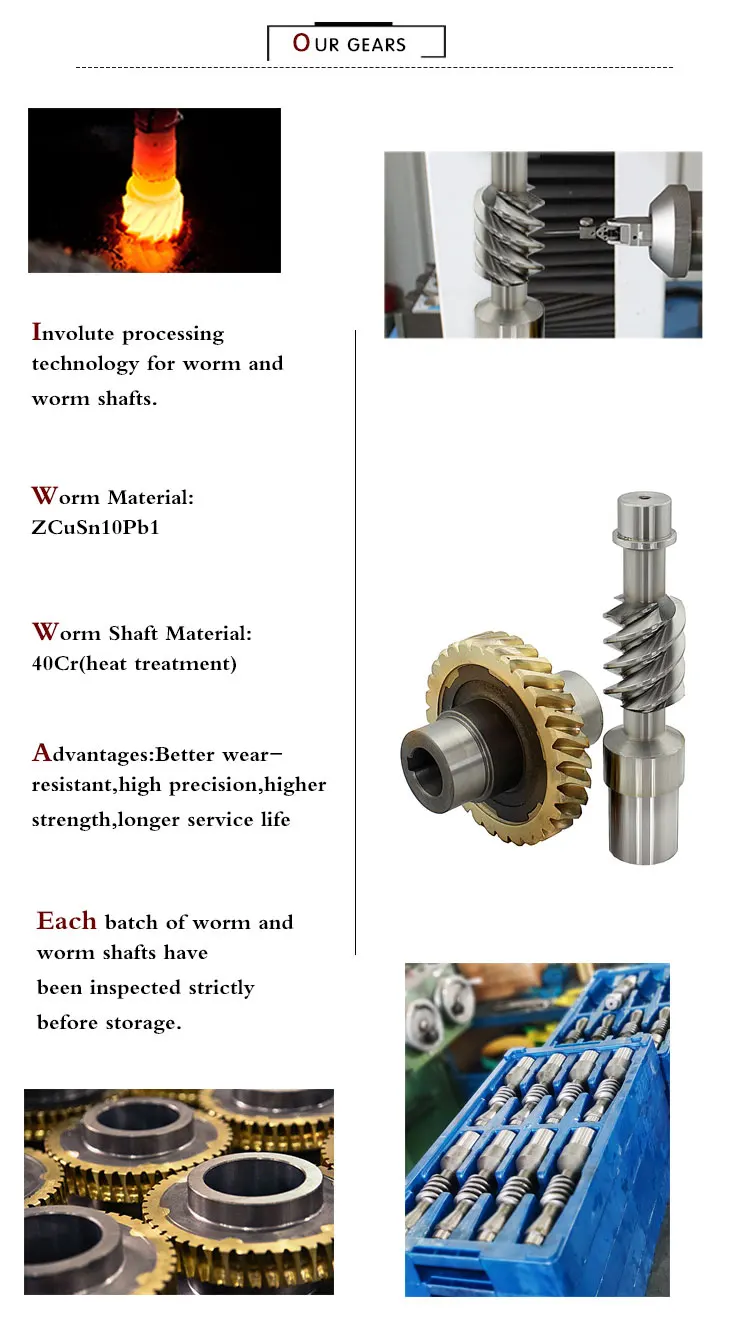

| Worm Wheel Material | ZCuSn10Pb1 |
| Worm Gear Material | 40Cr |
| Lubricating Oil | GB Gn230-460 Synthetic or Mineral oil |
| Efficiency | 50%~65% |
| Noise (MAX) | 60~68dB |
| Temperature Rise (MAX) | 50℃ |
| Temperature Rise (Oil) (MAX) | 60℃ |
| Vibration | ≤20µm |
| Backlash | ≤20 Arcmin |
| Brand of Bearings | C&U or other brand requested |
| Brand of Oil Seal | NAK— Taiwan or other brands requested |
Additional Information
- Output Speed Range: 0.01~193rpm
- Output Torque: Up to 880Nm
- Product Features:
- Compact design with an elegant appearance
- Low noise operation
- Efficient heat dissipation
- High carrying ability and steady performance
