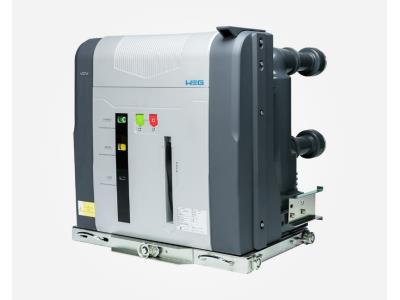

WV1 circuit-breaker
Inquire NowDescription
The WV1 circuit-breaker is a highly efficient and reliable device designed for high-voltage applications, from 12KV to 40.5kV. With a robust rated current of 630A to 4000A, this circuit-breaker ensures superior performance and safety in electrical installations. Its impressive breaking capacity ranges from 25kA to 40kA, allowing it to handle various fault conditions effectively. With a service life boasting a maximum mechanical cycle of over 50,000 times, this circuit-breaker is engineered for longevity and dependability.
Moreover, the WV1 circuit-breaker features a DC component of the rated short-circuit breaking current that exceeds 62%, ensuring optimal functionality under short-circuit conditions. The device is capable of enduring a maximum rated short-circuit current breaking times of at least 50, making it a top choice for any high-voltage electrical system. Its compatibility with mainstream cabinets, such as the KYN28, enhances its flexibility and ease of integration into existing setups.
Specifications
| Feature | Details |
|---|---|
| Rated Voltage | 12KV ~ 40.5kV |
| Rated Current | 630 ~ 4000A |
| Breaking Capacity | 25 ~ 40kA |
| Service Life | Maximum mechanical life ≥ 50,000 times |
| DC Component of Rated Short-Circuit Breaking Current | ≥ 62% |
| Maximum Rated Short-Circuit Current Breaking Times | ≥ 50 times |
| Interchange Compatibility | Mainstream cabinets such as KYN28 |
Additional Information
- Designed for high-voltage electrical applications.
- Ideal for use in industrial and utility environments.
- Ensures safety and reliability in electrical systems.
