X-150
Inquire NowDescription

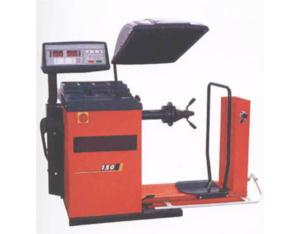

The X-150 is a state-of-the-art wheel balancing machine designed to accommodate both heavy trucks and passenger cars. With its advanced mechanical shaft crafted through high-precision techniques, this machine guarantees exceptional accuracy during repeated measurements. The X-150 features automatic dynamic balancing, static balancing, and self-balancing capabilities for aluminum alloy rims. Its self-calibration and troubleshooting functions streamline operations, while the convenient brake pedal enhances the overall user experience.
Specifications
| Attribute | Details |
|---|---|
| Max. Wheel Weight | 150 kg |
| Max. Wheel Diameter | 1200 mm |
| Motor Power | 0.6 kW |
| Power Supply | 110V/220V/380V, 50/60Hz |
| Balancing Accuracy | ±5 g |
| Balancing Speed | 42 – 200 r.p.m |
| Rim Diameter | 13″ – 24″ (330.2 mm – 609.6 mm) |
| Rim Width | 1.5″ – 20″ (38.1 mm – 508 mm) |
| Measuring Time | 8 – 20 sec |
| Noise Level | <70 dB |
Additional Information
- Equipped with convenient brake pedal for ease of operation.
- Ideal for both heavy-duty and passenger vehicle applications.
- Ensures high accuracy and efficient performance over repeated use.
