XCMG 2 ton mini underground mining wheel loader machine ZL20E(J) price
Inquire NowDescription
The XCMG ZL20E(J) is a cutting-edge 2 ton mini underground wheel loader designed to excel in confined spaces such as mines, containers, and docks. This loader is engineered for optimal performance, featuring an automatic leveling function that enhances working efficiency. With its advanced hydraulic system, impressive dumping height, and robust digging force, the ZL20E(J) stands out as a first-class product in its category.
This machine boasts an articulated frame that allows for a small turning radius, making it perfect for maneuvering in narrow areas with ease. The integration of a power shift system with hydraulic and steering controls results in a highly flexible operational experience, ensuring stability and portability throughout its applications. Additionally, the loader’s innovative glass-steel hood and automatic locking mechanism reduce noise levels, facilitating a more comfortable working environment and simplifying engine maintenance.
Specifications
| Description | Specification | Unit | |
|---|---|---|---|
| Rated operating load | 2000 | kg | |
| Bucket capacity | 1 | m3 | |
| Machine weight | 6400 | kg | |
| Dump clearance at maximum lift | 2580 | mm | |
| Reach at maximum lift | 960 | mm | |
| Wheel base | 2300 | mm | |
| Tread | 1490 | mm | |
| Max. breakout force | 56 | Kn | |
| Max. horse power | 45 | Kw | |
| Hydraulic cycle time-raise | 5 | s | |
| Total hydraulic cycle time | 9 | s | |
| Min. circle radius over outside bucket | 5100 | mm | |
| Min. turning radius over tyres | 4450 | mm | |
| Articulation angle | 35 | ° | |
| Gradeability | 28 | ° | |
| Tyre size | 16/70-20 | ||
| Overall machine dimension (LxWxH) | 5950x1960x2550 | mm | |
| Engine Model | LR4B3ZU-G73X3QR-U3 | ||
| Rated power/Speed | 66.2/2400 | Kw/rpm | |
| Travel speed | I-gear(F/R) | 10 | km/h |
| II-gear(F/R) | 28 | km/h |

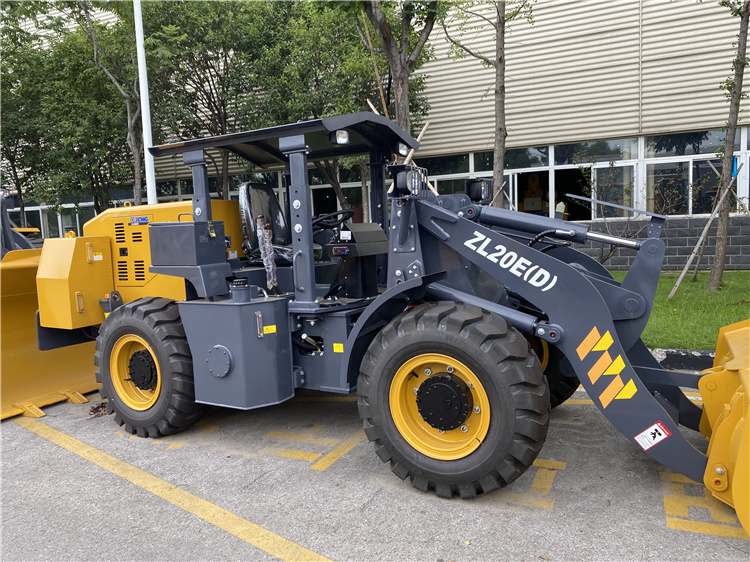

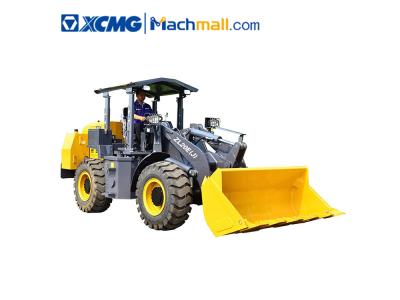

Product Show
