Description
The XCMG Factory 25 Ton Mobile Truck Crane QY25K is a highly reliable hydraulic crane that combines years of advanced design and manufacturing technology from XCMG. Built on a robust and mature technological foundation, this truck crane features a specially designed chassis that ensures strength and stability during operation. Its classic K series appearance not only adds to its aesthetic appeal but also provides all-around operational versatility.
Engineered for efficiency, the QY25K is ideal for a range of applications including urban renewal projects, transportation logistics, port operations, bridge construction, and various industrial lifting tasks. The crane’s operations are simple, convenient, and flexible, making it a favorite among construction professionals.
Advantages and Highlights:
- The bi-hexagonal cross-section boom offers a superior depth-width ratio, enhancing lifting capacity and strength while minimizing deformation.
- Plug-in boom head design improves connection length and reduces boom deformation.
- Outstanding travel and grade ability with a maximum grade of 40% and travel speeds up to 80 km/h.
- Features an open fixed displacement pump and variable displacement motor system for smooth, efficient, and energy-saving operations.
Specifications
| Description | Unit | Parameter Value |
|---|---|---|
| Overall length | mm | 12650 |
| Overall width | mm | 2500 |
| Overall Height | mm | 3380 |
| Wheel Base | mm | 4425+1350 |
| Track | mm | 2074/1834/1834 |
| Total vehicle mass in travel configuration | kg | 29400 |
| Axle load – Front axle | kg | 6600 |
| Axle load – Rear axle | kg | 22800 |
| Engine Model | SC8DK280Q3 | |
| Engine rated power | kw/(r/min) | 206/2200 |
| Engine rated torque | N.m/(r/min) | 1112/1400 |
| Max. travel speed | km/h | 75 |
| Min. travel speed | km/h | 2.9 |
| Min. turning diameter | m | 22 |
| Min. ground clearance | mm | 260 |
| Max. grade ability | % | 30 |
| Approach angle | ° | 16 |
| Departure angle | ° | 13 |
| Braking distance (at 30 km/h, full load) | m | ≤10 |
| Oil consumption per 100km | L | ≤37 |
| Exterior noise level during acceleration traveling | dB (A) | 84 |
| Noise level at seated position | dB (A) | 90 |

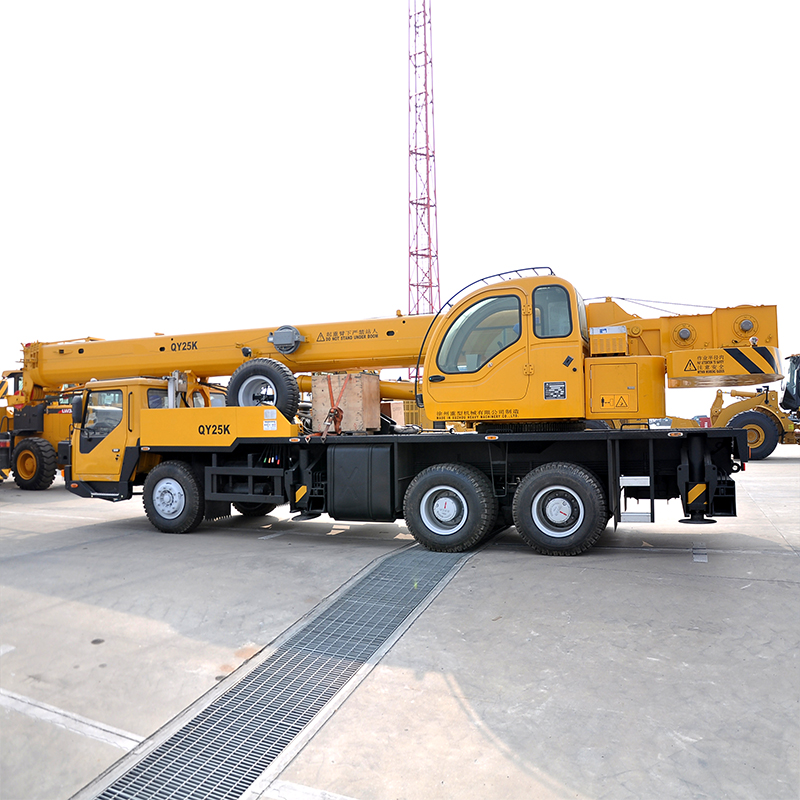

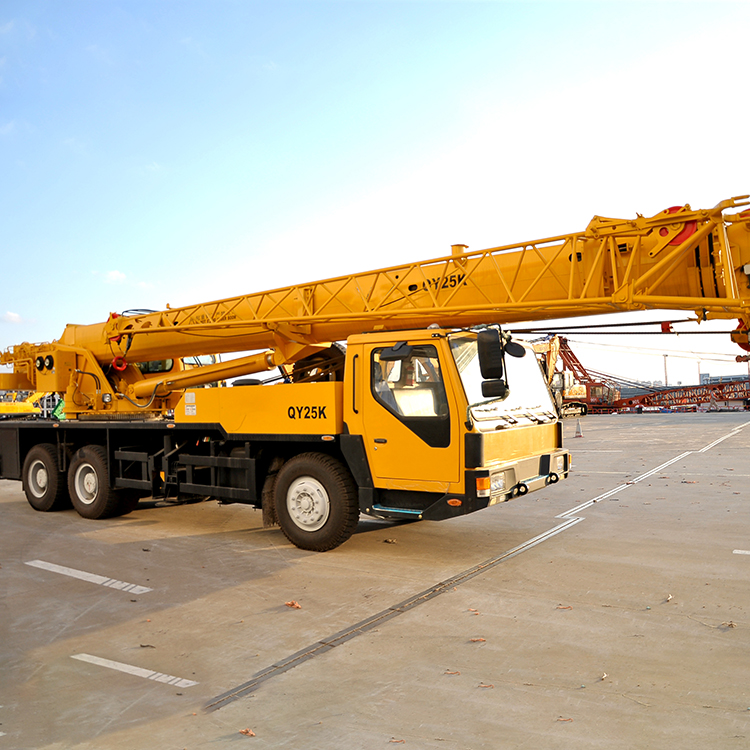

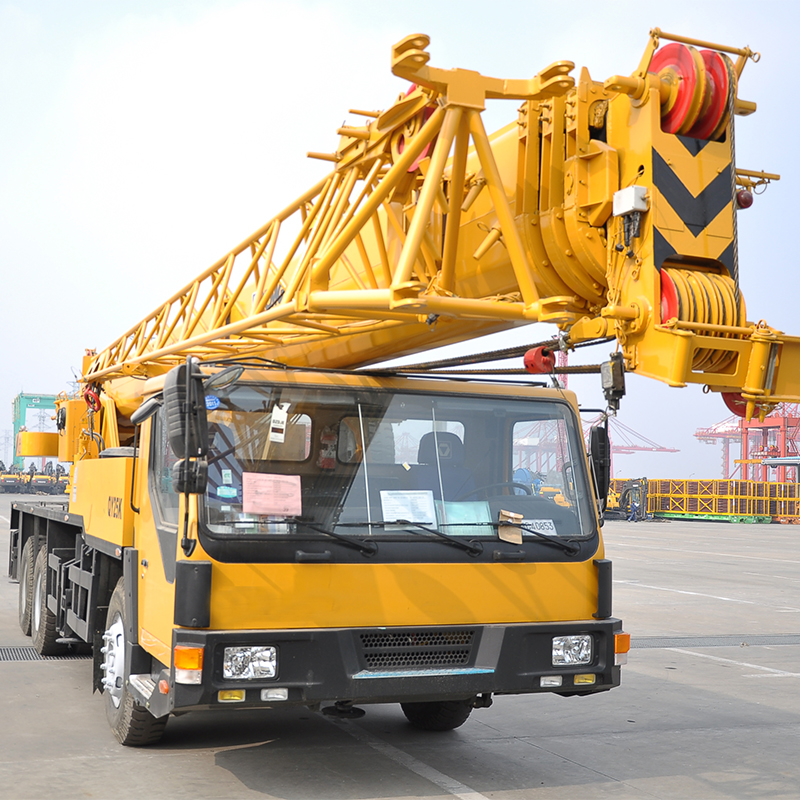

Product Show
