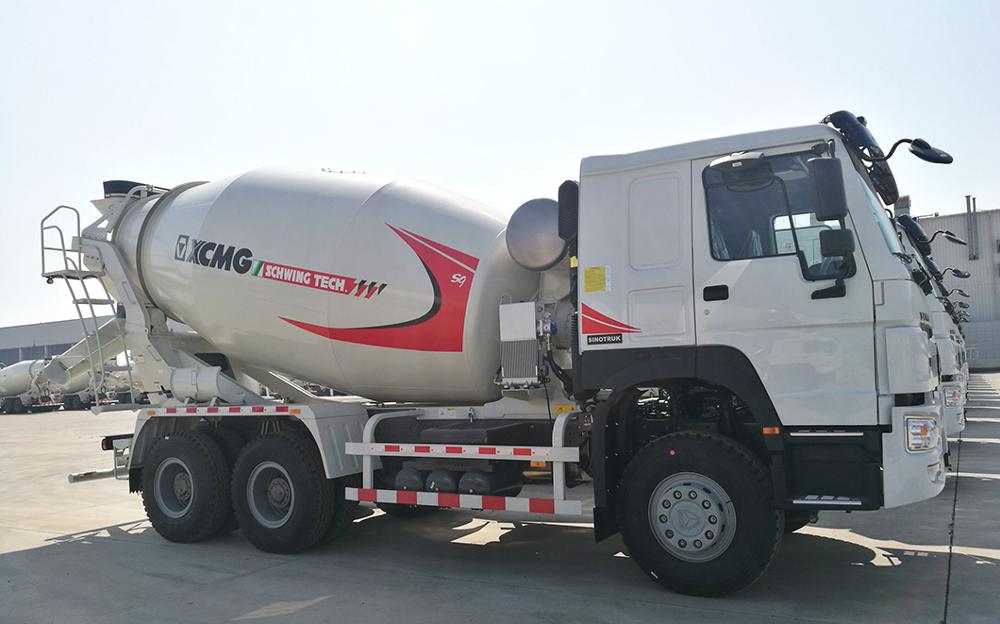

XCMG G12K 12m3 big concrete mixer truck large capacity concrete mixer machine price
Inquire NowDescription
The XCMG G12K 12m³ concrete mixer truck is the latest generation of large-capacity concrete mixing machines, designed to optimize efficiency and performance through an innovative modular design. This advanced concrete mixer truck integrates state-of-the-art technology to ensure superior mixing capabilities while maintaining environmental standards.
- Innovative Mixing Technology: The G12K features a unique double log spiral design with adjustable lift angles and screw pitches, ensuring uniform mixing and efficient discharge.
- Sustainable Engineering: Equipped with lightweight technology, twin-output control, and anti-scattering systems, this vehicle minimizes environmental impact while maximizing operational effectiveness.
- Robust Construction: The optimized chassis design prevents deformation and structural failure, enhancing durability and reliability in demanding conditions.
- World-Class Components: The hydraulic transmission system includes components from renowned global brands like ZF and Rexroth, ensuring dependable performance and longevity.
Specifications
| Description | Unit | Parameter Value |
|---|---|---|
| Geometric Volume | m³ | 19.5 |
| Max. Diameter of Drum | mm | 2380 |
| Drum Length | mm | 5967 |
| Mounting Tilt Angle | ° | 12 |
| Rotary Speed | r/min | 0~14 |
| Charging Speed | m³/min | ≥3 |
| Discharging Speed | m³/min | ≥2 |
| Residual Ratio of Discharging | % | <0.7 |
| Range of Slump | cm | 5~21 |
| Volume of Water Tank | L | 450 |
| Chassis Brand | Sinotruck | |
| Chassis Model | ZZ1257N4048W | |
| Curb Mass | kg | 15870 |
| Driving Type | 6×4 | |
| Wheelbase | mm | 4025+1350 |
| Outline Dimension (L×W×H) | mm | 9850×2500×3980 |
| Engine Model | WD615.47 | |
| Rated Power | Kw/r/min | 273 |
| Displacement | L | 9.726 |
| Emission Standard | ChinaⅡ |
Additional Information

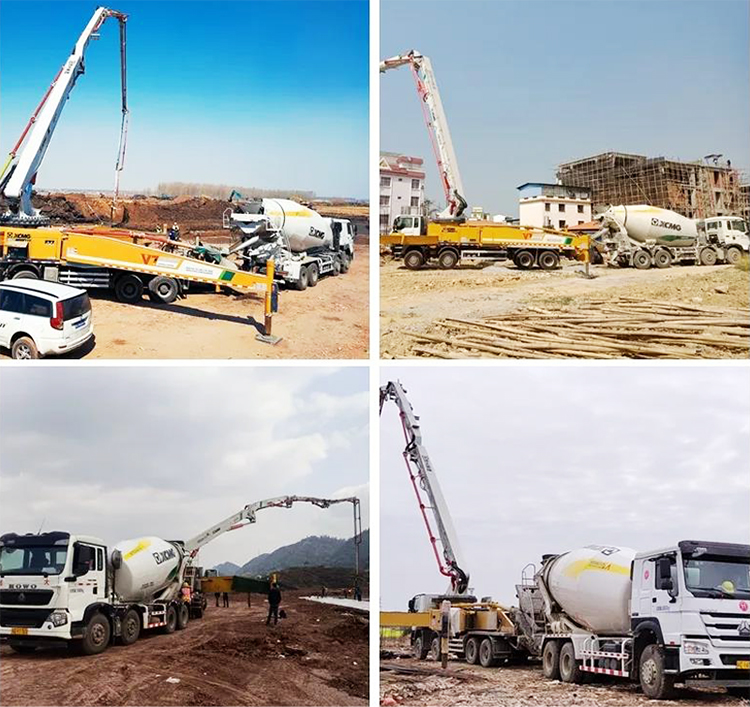

Product Show:
