XCMG new 8m3 concrete mixer truck G08K Chinese small concrete mixer machine price
Inquire NowDescription
The XCMG G08K 8m3 concrete mixer truck represents the forefront of concrete mixing technology. This advanced truck mixer features an integrated modular design that optimizes performance and enhances innovation. Equipped with a unique mixing technology, the G08K uses an original double log spiral design that can adjust the lift angle and screw pitch. This ensures a consistent and smooth flow of concrete within the mixing drum, resulting in uniform discharging and effectively minimizing the risk of blockages in concrete pumps caused by uneven mixtures.
Constructed with a robust chassis that integrates the upper and lower components, including the front and rear bases, the G08K’s design is streamlined for maximum efficiency. This truck is powered by high-quality hydraulic components from renowned brands such as ZF, Rexroth, and Bonfiglioli, guaranteeing reliable power and a longer service life.
Specifications
| Category | Item | Unit | Parameter |
|---|---|---|---|
| Overall Parameter | Model | G08K | |
| Curb weight | kg | 14000 | |
| Max. total weight | kg | 25000 | |
| Outline dimension (LxWxH) | mm | 8935×2500×3890 | |
| Chassis | Chassis model | ZZ1257N3641W | |
| Steering position | LHD | ||
| Driving type | 6×4 | ||
| Wheel base | mm | 3625+1350 | |
| Tire | 10.00R20 | ||
| Power take-off | Flywheel | ||
| Engine | Model | WD615.69 | |
| Max. power | kW | 247 | |
| Displacement | L | 9.726 | |
| Emission standard | Euro II | ||
| Drum system | Geometric volume | m3 | 13.6 |
| Agitating volume | m3 | 8 | |
| Max. diameter of drum | mm | 2280 | |
| Mixing drum length | mm | 4795 | |
| Slanting angle | ° | 15 | |
| Rotating speed | r/min | 0~14 | |
| Feeding speed | m3/min | ≥3 | |
| Discharge speed | m3/min | ≥2 | |
| Discharge residual rate | % | < 0.4 | |
| Slump scope | mm | 50~210 |
Additional Information

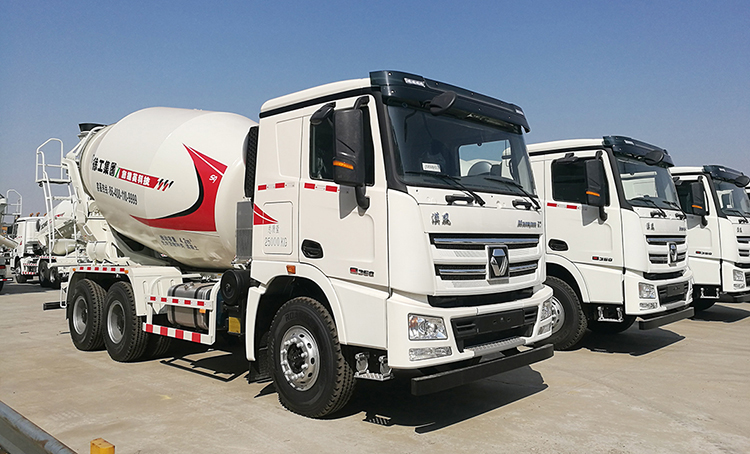

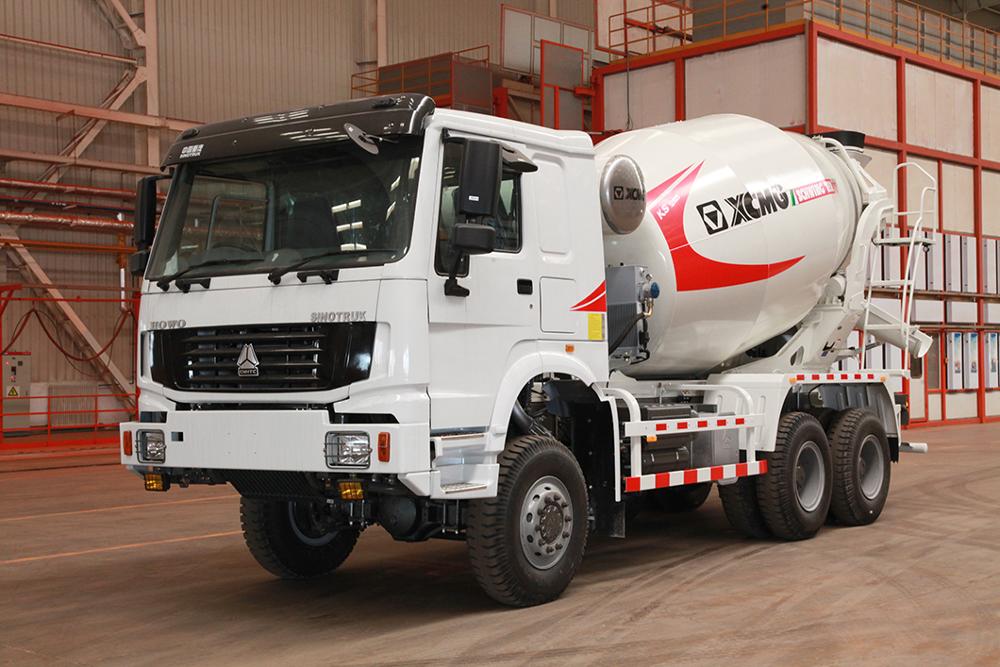

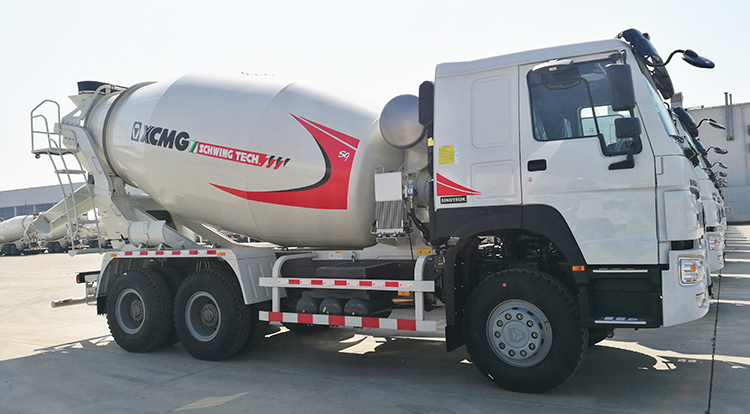

Product show
