XCMG Official 7 Ton Mining Front Wheel Loader LW700KN Price
Inquire NowDescription
The LW700KN is XCMG’s latest generation 7-ton mining front wheel loader, designed with cutting-edge globalized platform technology. This loader stands out for its exceptional performance in energy conservation, efficiency, reliability, comfort, and ease of maintenance. It is tailored for diverse applications, successfully handling both heavy materials, such as ores, and lighter materials, such as coal, making it ideal for operations in ports, mines, and logistics sectors.
Model Characteristics:
- Enhanced safety features with a broader visual field.
- Increased efficiency and reliability for optimum productivity.
- Reduces impact on drive shaft, ensuring improved drive reliability.
Specifications
| Description | Unit | Parameter value |
|---|---|---|
| Rated capacity | kg | 8000 |
| Bucket volume | m³ | 4.5 |
| Operating weight | kg | 28500 |
| Max. horse power | kN | 242 |
| Max. breakout force | kN | 260 |
| Hydraulic cycle time-raise | s | 6 |
| Total hydraulic cycle time | s | 10.8 |
| Tire model | 29.5R25 | |
| Dimension LxWxH | mm | 9300*3500*3770 |
| Wheelbase | mm | 3600 |
| Hinge height at maximum lifting height | mm | 4516 |
| Hinge height during loading | mm | 500 |
| Ground clearance | mm | 520 |
| Traction pin height | mm | 1200 |
Additional Information
No additional information available.

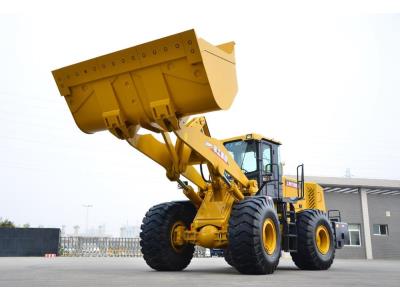

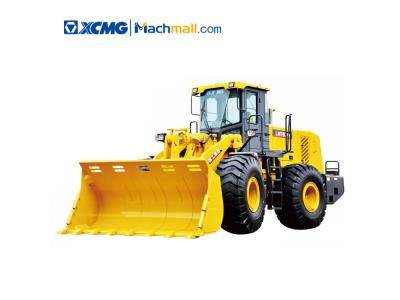

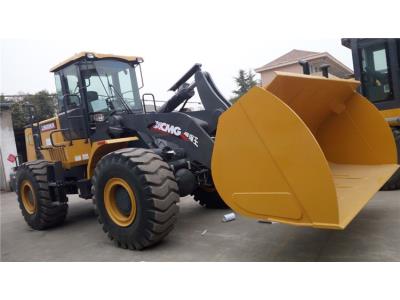

Product Show:
