Description
The XCMG HB37V concrete pump truck is engineered for superior performance, featuring advanced skirt valve pump technology for enhanced efficiency, coupled with a stable reversing buffer and a reliable full hydraulic reversing system. Built on the robust Sinotruk Sitrak chassis, it adheres to the China 6 emission standard, providing powerful output, high torque, and impressive energy conservation. This vehicle is specifically designed for off-road capabilities, making it an ideal choice for various construction projects.
Advantages and Highlights:
- Ultimately Safe Boom
- Lower Structure of High Rigidity
- Hydraulic System of Outstanding Performance
- Emissions Reduction with Enhanced Durability
- Electric Control Reversing for Faster Operation
- Higher Pumping Efficiency over Conventional Systems
Specifications
| Category | Item | Unit | HB37V |
|---|---|---|---|
| Overall | Outline Dimension | mm | 10080×2525×3750 / 9900×2525×3750 |
| Overall Weight | kg | 22870 / 23000 | |
| Chassis | Brand | / | Sinotruck Sitrak |
| Model | / | / | ZZ5237N521GF1/PAD752 / ZZ5231N521GE1 |
| Wheelbase | mm | 5200 | |
| Max. Power | kW | 228 / 225 | |
| Emission Standard | / | China VI / China V | |
| Pumping System | Theoretical | m3/h | 120 / 80 |
| Concrete Pumping Pressure | MPa | 8.7 / 13 | |
| Placing Boom | Reach Height | m | 36.5 |
| Reach Depth | m | 24.9 | |
| Slewing Radius | m | 32.5 | |
| Others | Transfer | / | S valve |

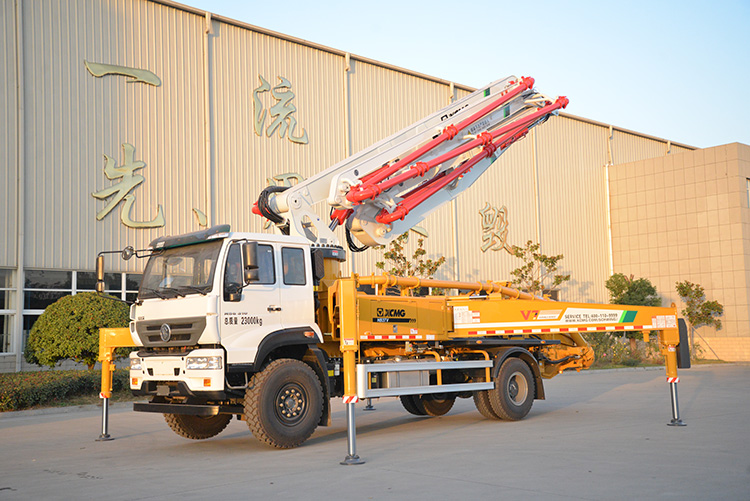

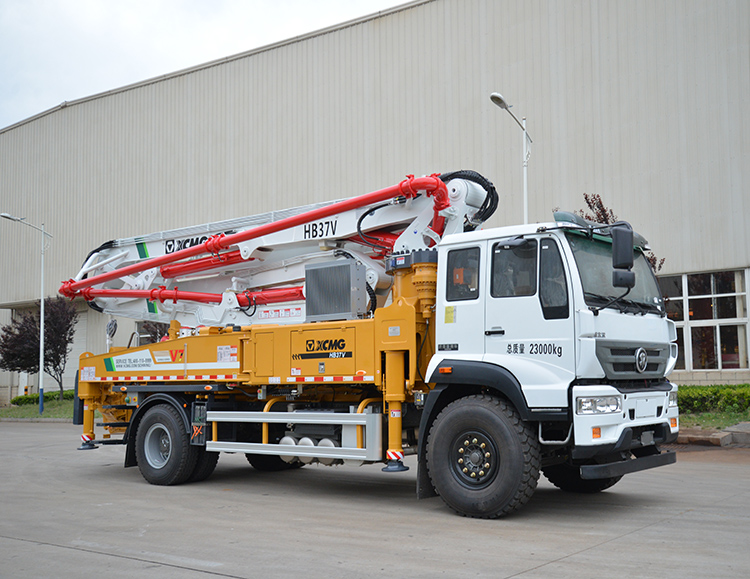

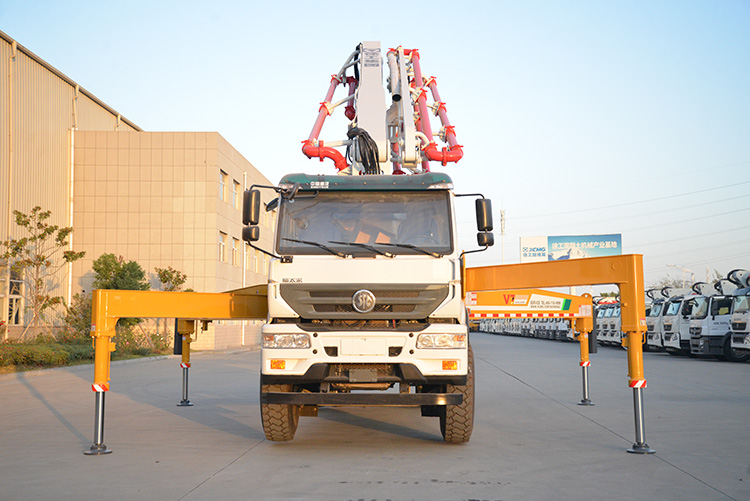

Product Show
