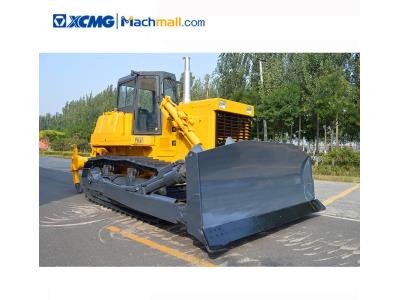

XCMG official TY230 217HP new crawler bull dozer machine Hydraulic bulldozer for sale
Inquire NowDescription
The XCMG official TY230 is a state-of-the-art 217HP crawler bulldozer designed for exceptional performance and durability. This hydraulic bulldozer stands out with its innovative design, incorporating advanced technology to deliver higher engine power reserves and efficiency. With features such as a hydraulically controlled drive system that allows for automatic speed regulation and seamless gear shifting, this machine is built to handle the toughest tasks while ensuring reliability and low fuel consumption.
Its robust construction includes a novel hexahedral cab that provides excellent visibility and superior ventilation, creating a dust-free operating environment. The TY230’s final drive system employs triangle spline and crowned gear technology, enhancing balance and stability under load, ensuring optimal performance in varied terrains.
Engineered for professional use, it boasts a pulse exhaust manifold for improved performance and emissions, making it ideal for any heavy-duty application.
Specifications
| Specification/Blade Type | Weight (kg) | Dimensions (mm) | Performance |
|---|---|---|---|
| Straight-tilt | 17400 | 3416×1145 | Max. Pulling Force: 142 KN |
| Angle | 17700 | 3970×1037 | Grade Ability: 30° |
| U-Blade | 17900 | 4061×1386 | Blade Capacity: 8.6 m³ |
| Min. Ground Clearance | 400 | Max. Lift: 1110 mm | Max. Depth: 530 mm |
| Min. Turning Radius | 3.2 | Max. Tilt Adjustment: ≥860 mm | Track Gauge: 1880 mm |
| Ground Pressure | 0.069 – 0.071 | Pitch Adjustment: 55° | Capability (m³/h): 247 – 260 |
| Weight of Blade | 2350 – 2560 |
Additional Information
- Hydraulically controlled drive for ease of operation.
- High torque reserve for adaptability in various conditions.
- Advanced turbocharger and water cooler technology for optimal performance.
