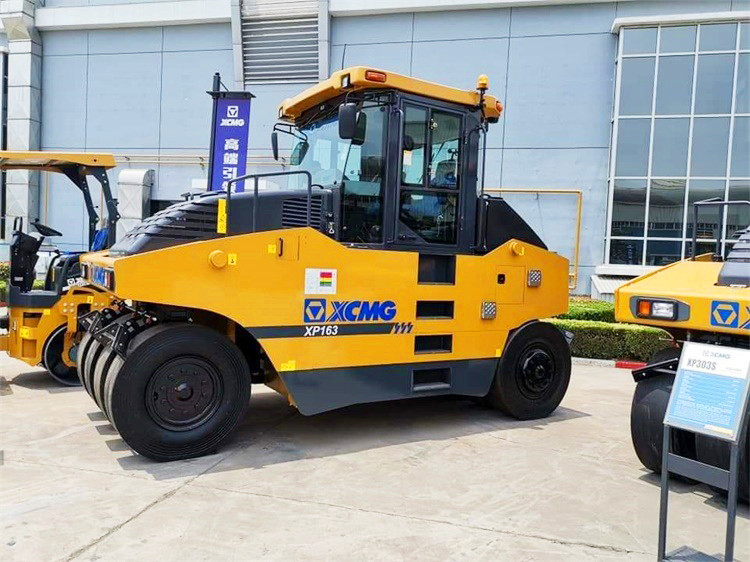

XCMG official XP163 China 16 ton hydraulic vibrating pneumatic tire road roller compactor
Inquire NowDescription
The XCMG XP163 is a powerful 16-ton hydraulic vibrating pneumatic tire road roller compactor designed for heavy-duty road construction and water conservancy projects. This self-propelled static roller excels at compacting asphalt pavements, foundation layers, and filling engineering tasks. It stands as an essential piece of equipment for achieving high-quality compaction, particularly in highway construction where it delivers results unmatched by other machinery.
What sets the XP163 apart is its innovative design, which features a flexible compaction function that prevents damage to materials while ensuring a dense and durable pavement surface. The roller’s ability to adjust balance weight and tire inflation pressure enhances its performance and expands its applications, effectively mitigating the risk of false compaction.
Equipped with full hydraulic steering, air-assisted hydraulic brakes, and a multi-gear transmission system, the XP163 offers swift and flexible maneuverability, making it convenient to transition between different construction sites. Additionally, the standard water spray system helps to prevent asphalt adhesion on the tire surface, ensuring optimal performance in any conditions.
Specifications
| Item | Unit | Specification |
|---|---|---|
| Maximum operating mass | kg | 30300 |
| Compaction width | mm | 2360 |
| Overlapping of tyres | mm | 65 |
| Ground pressure | kPa | 200-545 |
| Minimum turning radius | mm | 7620 |
| Swing quantity of front wheel | mm | 50 |
| Minimum ground clearance | mm | 300 |
| Theoretical gradeability | % | 20 |
| Wheel base | mm | 3840 |
| Travel speed (Gear I) | km/h | 0-8 |
| Travel speed (Gear II) | km/h | 0-17 |
| Engine type | – | SC7H180.2G3 |
| Rated power | kw | 132 |
| Rated speed | r/min | 1800 |
| Rated fuel consumption rate | g/kw.h | ≤233 |
| Tyre specification | – | 13/80-20 |
| Tyre tread pattern | – | Smooth tread |
| Number of tyres | – | Front 4, Rear 5 |
| Length (standard water sprinkler) | mm | 4925 |
| Length (standard oil sprinkler) | mm | 5015 |
| Width | mm | 2530 |
| Height | mm | 3470 |
| Diesel tank volume | L | 170 |
| Water tank volume | L | 650 |
Additional Information
With over 30 years of top sales volume in China, XCMG road rollers, including the XP163, are recognized globally for their outstanding performance and reliability in the field of compaction machinery.
