XCMG original manufacturer 215HP China motor grader machine GR215 for sale
Inquire NowDescription
XCMG’s GR215 motor grader is an essential machine designed for a variety of heavy-duty applications including large ground surface leveling, ditching, slope scraping, bulldozing, scarifying, and snow removal. This powerful 215HP motor grader is indispensable for engineering projects such as national defense construction, urban and rural road development, mine construction, water conservancy, and farmland improvement. The GR215 is powered by a reliable Dongfeng Cummins engine coupled with ZF technology gearbox and Meritor drive axle, ensuring optimal performance and dynamic matching of the transmission system.
Key features include advanced noise reduction measures, a double-circuit hydraulic brake system for enhanced safety, and a special enhanced working device that boosts its operational efficiency. With multiple optional parts available, the GR215 can be customized to expand its performance and working scope, making it a versatile choice for various construction tasks.
Specifications
| Item | GR215 |
|---|---|
| Engine model | 6CTA8.3-C215 |
| Rated power/speed | 160kW/2200rpm |
| Overall dimension (standard) | 8970x2625x3420 mm |
| Total weight (standard) | 16500 kg |
| Tire specification | 17.5-25 |
| Ground clearance (front axle) | 430 mm |
| Space of front and rear axles | 6219 mm |
| Space of middle and rear wheels | 1538 mm |
| Forward velocity | 5, 8, 11, 19, 23, 38 km/h |
| Reverse speed | 5, 11, 23 km/h |
| Tractive effort f=0.75 | 87 kN |
| Maximum gradeability | 20% |
| Tire inflation pressure | 260 kPa |
| Working system pressure | 16 MPa |
| Transmission pressure | 1.3—1.8 MPa |
| Maximum steering angle of front wheel | ±50° |
| Maximum slant angle of front wheel | ±17° |
| Minimum turning radius | 7.3 m |
| Maximum lift height of scrape knife | 450 mm |
| Maximum cutting depth | 500 mm |
| Maximum tilt angle | 90° |
| Cutting angle | 28°—70° |
| Angle of revolution | 360° |

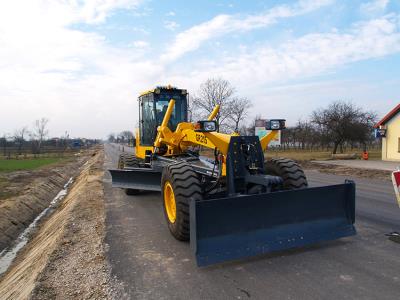

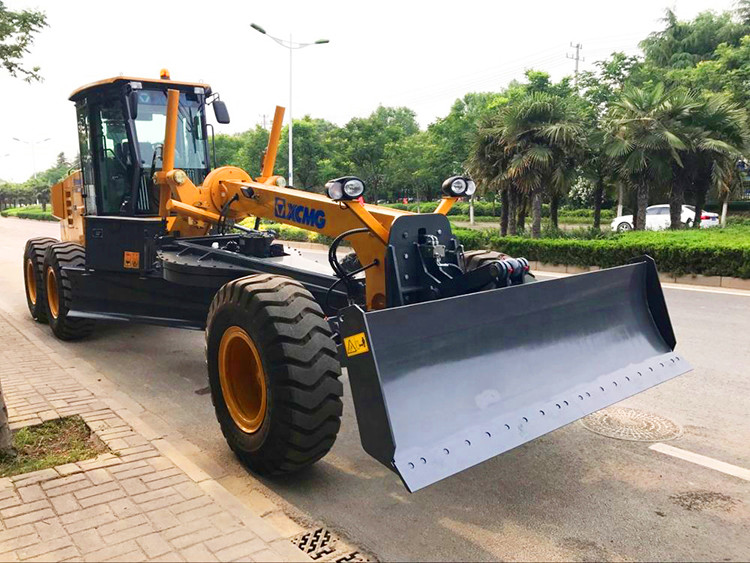

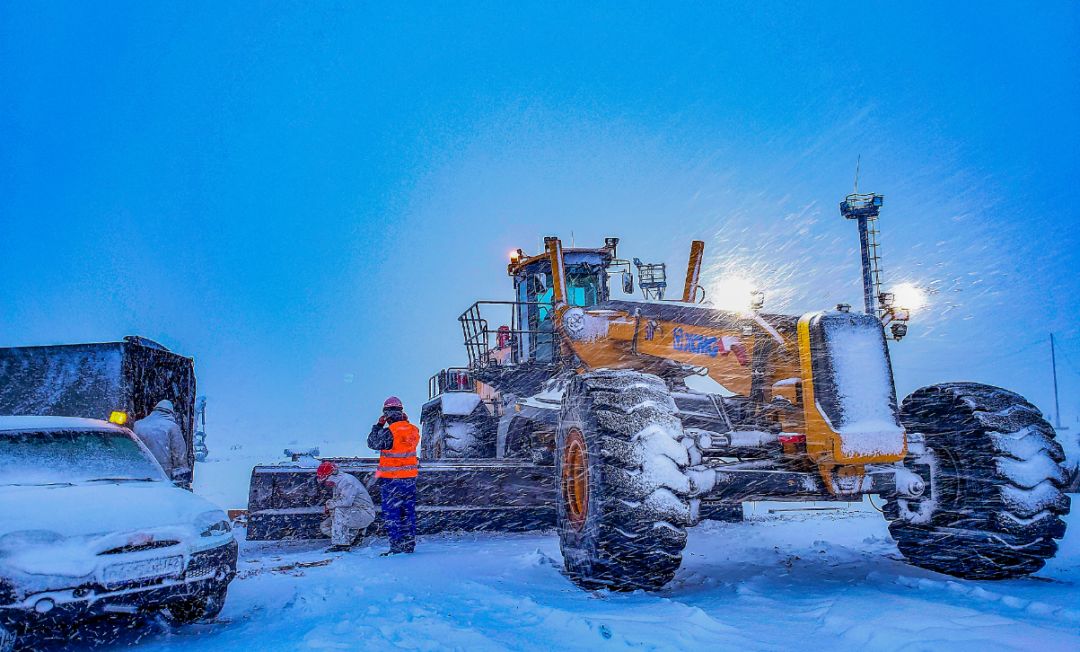

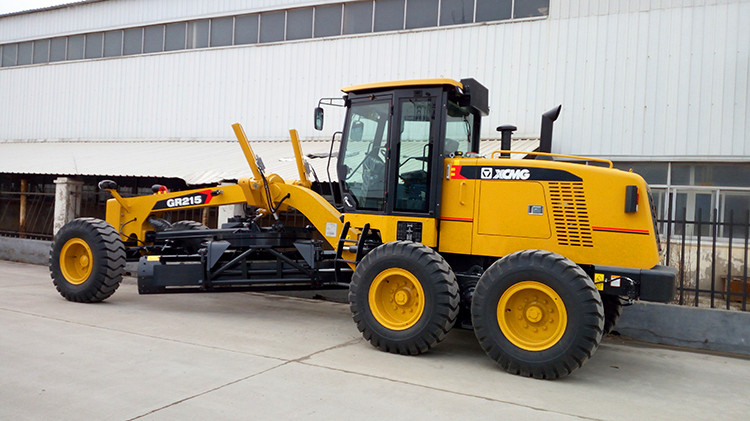

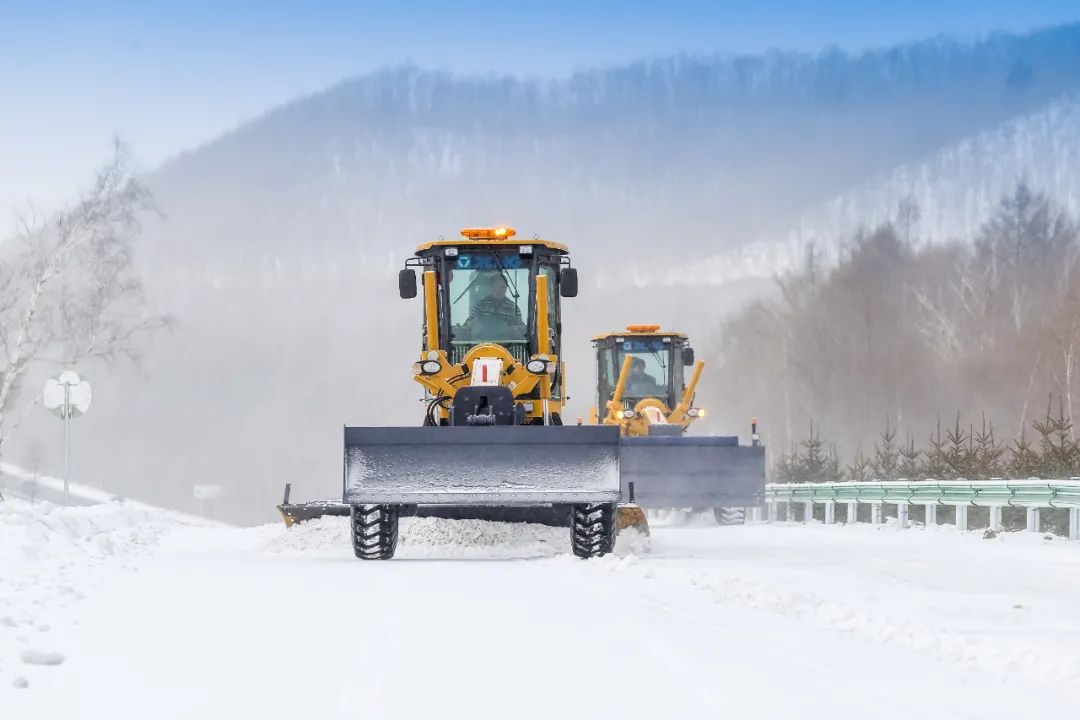

Product Show
