Description

The XDF3 Hydraulic Pilot Control Valve is engineered for precision and efficiency in fluid flow management. This pilot control valve boasts a quick response mechanism, ensuring accurate control suited for various industrial applications. Its ergonomic handle design enhances user comfort, available with optional switches or push buttons, enabling operation with minimal effort. The valve features a positioner that can seamlessly connect to a solenoid valve, facilitating precise positioning along with an unlock switch and auto reset functionality.

Designed for versatility, the pilot pressure valve integrates a logic valve, such as a floating control valve, and is compactly constructed for easy piping installation with minimal pressure drop within hydraulic systems. The outlet pressure adjusts dynamically with varying flow rates, offering enhanced control over cylinder speeds. Additionally, the hydraulic valve can be customized with a small lever for operation with fixtures, while the resilient arm of the lever effectively mitigates operational failures.

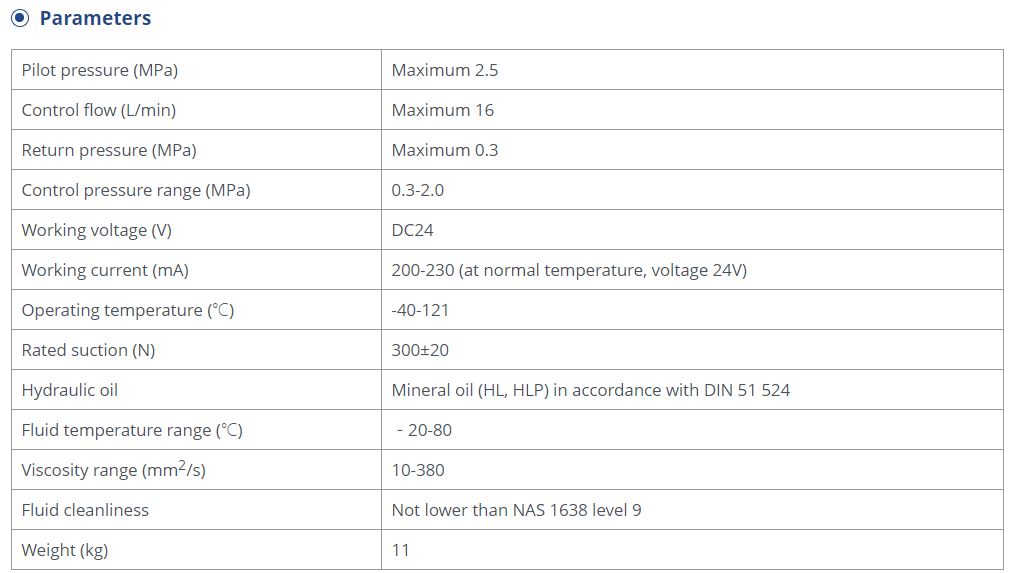

Specifications

Additional Information

• Applications:
  • Loader
  • Bulldozer
  • Agricultural Machinery
  • Material Handling Machinery
  • Compactor
  • Forestry Machinery
  • Container Crane
  • Drilling Rig
