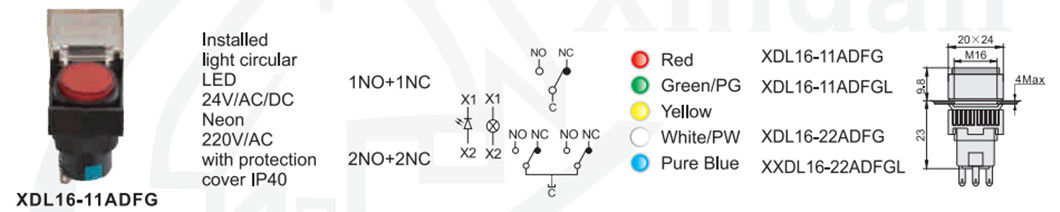

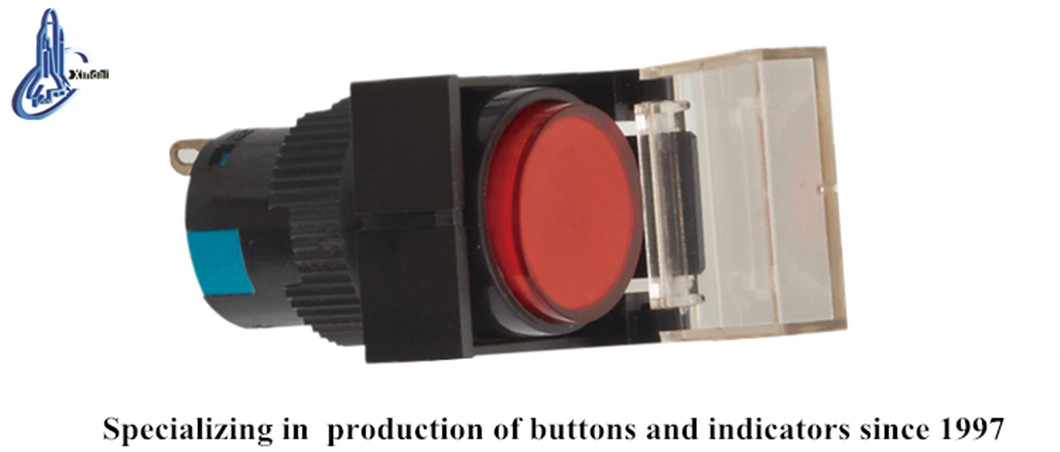

XDL16-11ADFG 220V Waterproof LED Light Waterproof Mini Push Button Switch
Inquire NowDescription
The XDL16-11ADFG 220V Waterproof LED Light Mini Push Button Switch is designed to offer reliable control for electrical circuits in a variety of applications. This robust push button switch is capable of managing AC voltages up to 660V at either 50Hz or 60Hz, as well as DC voltages below 400V, making it ideal for both signal control and interlocking functions. Crafted from high-quality zinc alloy and flame-resistant plastic, it ensures durability and safety in demanding conditions.
Equipped with a special silver alloy contact, this switch effectively resists electrical erosion, ensuring long-lasting performance. The integrated LED signal lamp is suitable for electrical circuits operating at AC voltages up to 380V and DC voltages below 380V, providing clear indications for warning and emergency signals. All components meet rigorous standards, including GB/T14048.1 and IEC60947-5-1, and the product is certified by CE, ISO9001, ROHS, and UL.
Specifications
| Main Technical Parameter | Button Technical Parameters | Signal Lamp Technical Parameters |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance |
| Conventional Heating Current | 10A | Contact Resistance |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage |
| Contact Resistance | ≤25MinΩ | Voltage Wave |
| Mechanical Life | 100×10000 (Pushbutton) | Brightness |
| Electrical Life | 500×10000 (Pushbutton) | Continuous Working Life |
Additional Information
- Brightness: 60cd/m²
- Continuous Working Life: 10×10000 hours
