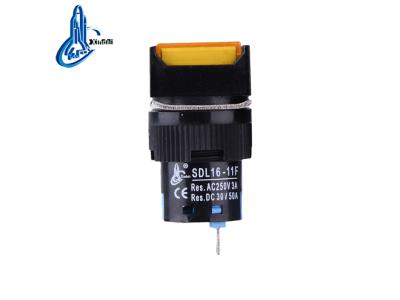

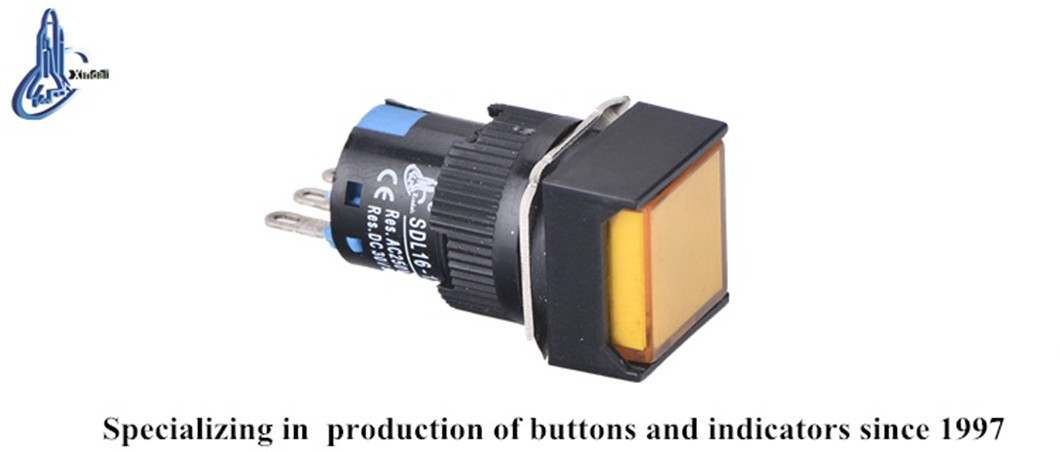

XDL16-11F LED Industrial Smart Switch Plastic Pushbutton Smart Light Switch
Inquire NowDescription
The XDL16-11F LED Industrial Smart Switch is an advanced, reliable solution designed for controlling AC and DC voltage circuits in various industrial applications. Engineered with a robust zinc alloy body and high-quality anti-flame plastic, this smart light switch is built to endure harsh environments while offering exceptional performance. It supports AC voltage up to 660V and DC voltage below 400V, making it suitable for a range of signalling and interlocking tasks. The special silver alloy contacts ensure impressive resistance to electrical erosion, ensuring longevity and safety. This switch is compliant with international standards including GB/T14048.1 and IEC60947-5-1, and is CE, ISO9001, ROHS, and UL certified.
Specifications
| Parameter | Specification |
|---|---|
| Rated insulation | AC 600V (50Hz/60Hz) |
| Insulation resistance | ≥50MΩ |
| Conventional heating current | 10A |
| Contact resistance | ≤25MinΩ |
| Pf withstand voltage | AC 2.5KV/min |
| Mechanical life | 100×10000 pushbutton / 50×10000 selector switch |
| Electrical life | 500×10000 pushbutton / 25×10000 selector switch |
| Brightness | 60cd/m2 |
| Continuous working life | 10x10000h |
Additional Information
- Ideal for indicating signals, warning signals, and emergency signals.
- Designed for high durability and reliability in industrial environments.
- Easy installation with comprehensive compatibility with various electrical appliances.
