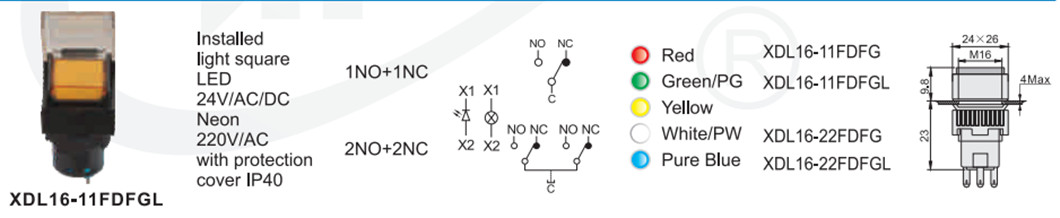

XDL16-11FDFGL Mini Flat Light Switch LED Light Waterproof Mini Push Button Switch
Inquire NowDescription
The XDL16-11FDFGL Mini Flat Light Switch is a high-performance LED light switch designed for both durability and functionality. Built to withstand various environmental factors, this waterproof mini push button switch is ideal for controlling circuits with AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V. The robust design incorporates a zinc alloy body and high-grade anti-flame plastic, ensuring longevity and safety. Featuring a silver alloy contact for superior electrical erosion resistance, this switch is perfect for signaling and interlocking applications. It is compliant with international standards (GB/T14048.1, IEC60947-5-1) and certified with CE, ISO9001, ROHS, and UL, making it a reliable choice for electrical appliances with AC voltages up to 380V and DC voltages below 380V. Whether used for indicating, warning, or emergency signals, the XDL16-11FDFGL Mini Flat Light Switch is a versatile and essential component for any electrical system.
Specifications
| Parameter | Value |
|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) |
| Insulation Resistance | ≥50MΩ |
| Conventional Heating Current | 10A |
| Contact Resistance | ≤25MinΩ |
| Pf Withstand Voltage | AC 2.5KV/min |
| Mechanical Life | 100×10000 pushbutton / 50×10000 selector switch |
| Brightness | 60cd/m2 |
| Electrical Life | 500×10000 pushbutton / 25×10000 selector switch |
| Continuous Working Life | 10x10000h |
| Voltage Wave | ±20% |
Additional Information
- Suitable for electrical appliance circuit of AC voltage up to 380V/50Hz.
- Ideal for use as indicating signals, warning signals, and emergency signals.
