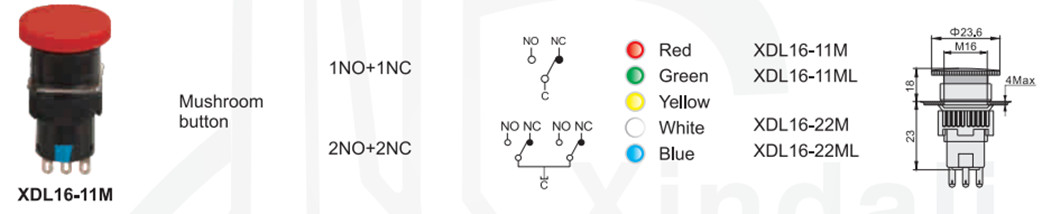

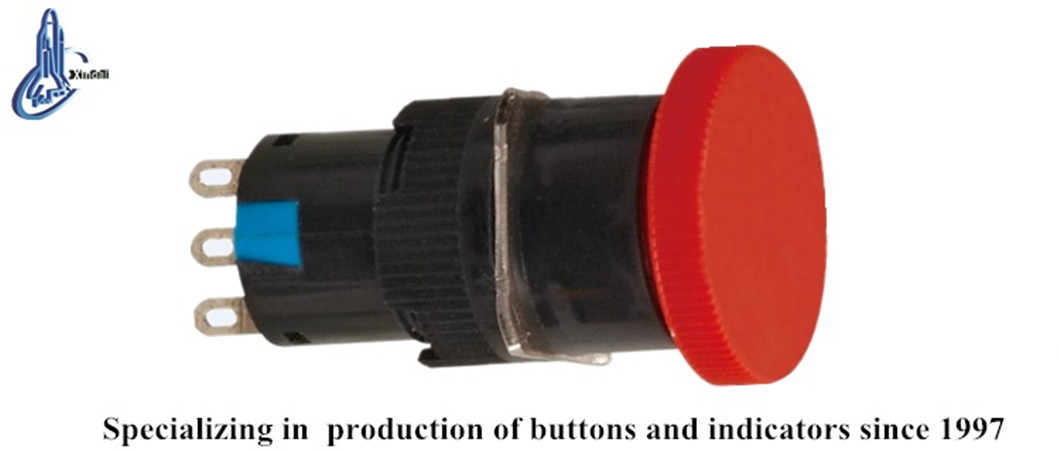

XDL16-11M 16mm Mushroom Reset Button Emergency Push Button Switch
Inquire NowDescription
The XDL16-11M 16mm Mushroom Reset Button is an essential component for emergency circuits, designed to provide reliable control in critical situations. This push button switch is engineered to handle AC voltage up to 660V (50Hz/60Hz) and DC voltage below 400V, making it versatile for various applications. With a robust construction of zinc alloy and high-grade anti-flame plastic, it ensures durability and safety. The special silver alloy contacts enable high anti-electrical erosion resistance, enhancing its lifespan. This switch is not only suitable for controlling signals but also for interlocking operations, making it ideal for indicating and warning signals in electrical appliances.
Specifications
| Main Technical Parameters | Push Button | Signal Lamp |
|---|---|---|
| Rated Insulation | AC 600V (50Hz/60Hz) | Insulation Resistance: ≥50MΩ |
| Conventional Heating Current | 10A | Contact Resistance: ≤25MinΩ |
| Insulation Resistance | ≥50MΩ | Pf Withstand Voltage: AC 2.5KV/min |
| Mechanical Life | 100×10,000 pushes | Brightness: 60cd/m² |
| Electrical Life | 500×10,000 pushes | 25×10,000 for selector switch |
| Continuous Working Life | 10×10,000 hours |
Additional Information
This product complies with GB/T14048.1 and IEC60947-5-1 standards, ensuring safety and performance. Additionally, it holds CE, IOS9001, ROHS, and UL certifications, making it a trustworthy choice for both industrial and commercial applications.
