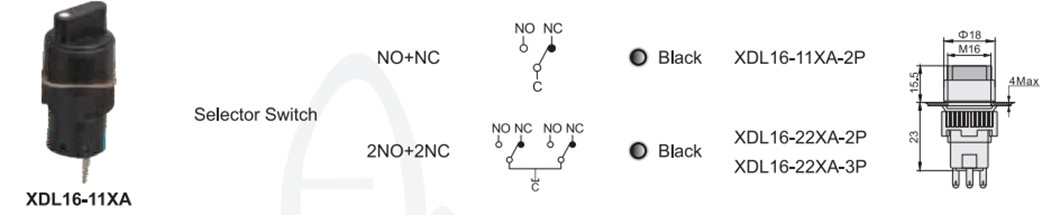

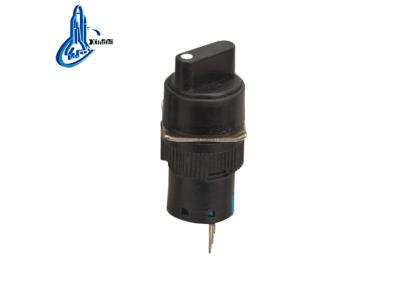

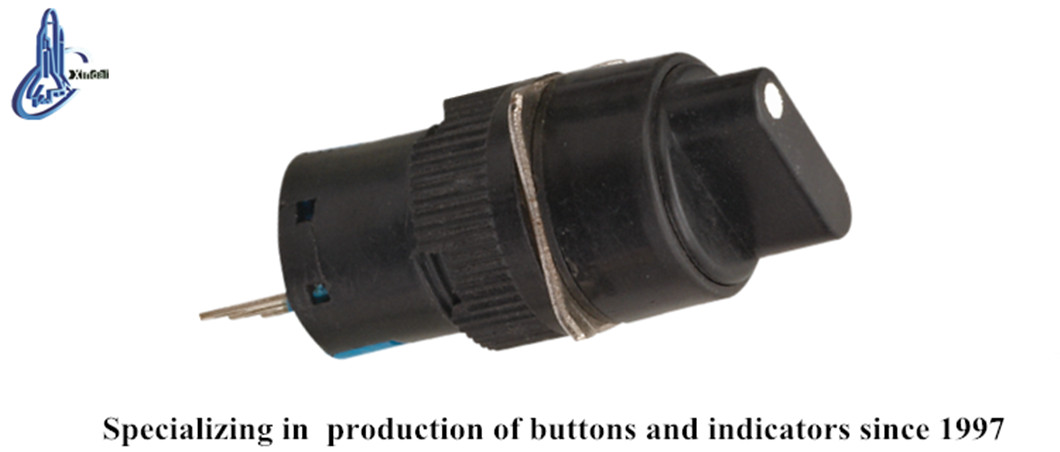

XDL16-11XA Plastic Black Push Button Switch 16mm Switch Electric Switch

Inquire Now

Description

The XDL16-11XA Plastic Black Push Button Switch is a robust and reliable 16mm electric switch designed for various applications in controlling AC and DC circuits. Capable of handling AC voltages up to 660V at 50Hz or 60Hz, and DC voltages below 400V, this switch is perfect for signal control, interlocking purposes, and indicating signals such as warnings or emergencies. Constructed with a durable zinc alloy body and high-grade anti-flame plastic, it features a special silver alloy contact that enhances its resistance to electrical erosion, ensuring longevity and reliability in demanding environments.

Specifications

Parameter Value Parameter Value
Rated Insulation AC 600V (50Hz/60Hz) Insulation Resistance ≥50MΩ
Conventional Heating Current 10A Contact Resistance ≤25MinΩ
Insulation Resistance ≥50MΩ Pf Withstand Voltage AC 2.5KV/min
Mechanical Life 100×10000 pushbutton Brightness 60cd/m²
Electrical Life 500×10000 pushbutton Continuous Working Life 10x10000h

Additional Information

  • Compliant with GB/T14048.1 and IEC60947-5-1 standards.
  • CE, ISO9001, ROHS, and UL certified for safety and quality assurance.
